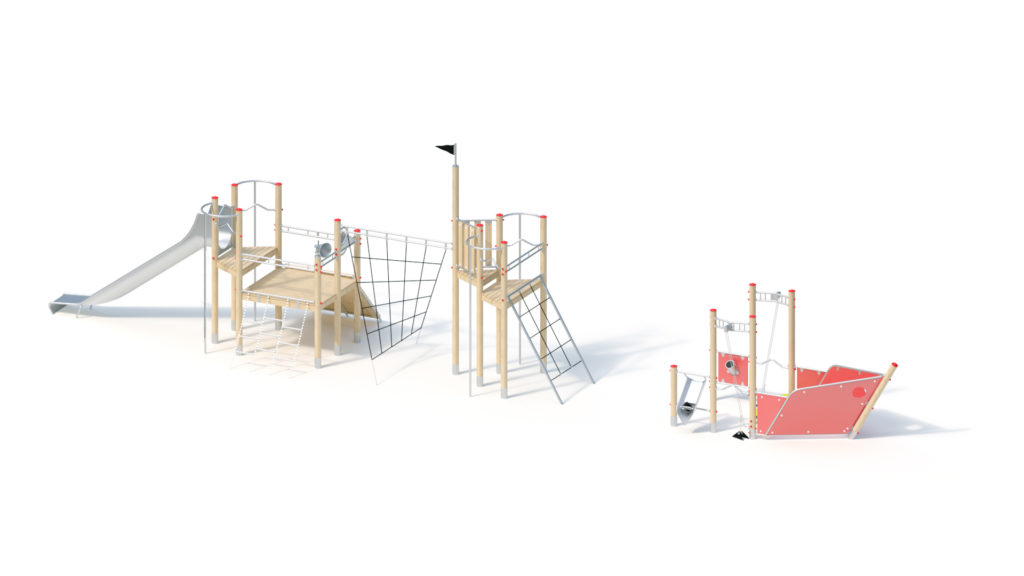

Play Ship

Free height of fall
2,92 m

Appropriate for
children from the age of 5 years up,
public playgrounds etc.,
physical activity

17.1m

3.7m

4.4m

20.6m

6.7m

4.4m

130kg

1275kg

2.55m

1,20 m, 1,60 m, 1,80 m, 2,00 m

18 pcs. 0,40 x 0,40 x 0,40 m Volume: 0,07 m3

1 pc. 0,50 x 0,50 x 0,50 m Volume: 0,13 m3

7 pcs. 0,30 x 0,30 x 0,40 m Volume: 0,04 m3

1 pc. 0,75 x 0,40 x 0,40 m Volume: 0,12 m3

2

16h

Approximate assembly values 2 mechanics 16 hours each (without creating foundations)

Technical data
Total height: approx. 4,40 m
Area: approx. 3,70 x 17,10 m
Minimum space: approx. 6,70 x 20,60 m (98 m²)
Platform heights: 1,20 m/1,60 m/1,80 m/2,00 m
Slide installation height: 1,60 m
Slide entrance height: 1,70 m
Slide inclination: 36°
Slide width: 0,60 m
Thickness of sliding sheet metal: 2,5 mm

Posts
Laminated Robinia timber Ø 120 mm with cylindrical milling. End-grain surfaces are covered by non-detachable protective stainless steel caps.
Stainless steel tubular pedestal for concrete-cast foundation and for fixed mounting to round Robinia posts, Ø 120 mm, below playing surface.

Platforms
Platforms from boards of 30 mm thickness and all-round square-shaped joists 45 x 100 mm. Dried timber from Robinia, planed, milled and free from decay. Force-fitting fastening through specific stainless steel brackets with end-to-end bolt assembly.

Attachment parts
– tandem guardrails from stainless steel tubes, Ø 33,7 x 2 mm
– bowed guardrails with roll-off prevention, from stainless steel tubes, Ø 33,7 x 2 mm
– timber infill barriers from Robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33,7 x 2 mm
– infill panel for ship’s bow from highly weather-resistant coloured HPL (red), fastening between stainless steel tubes Ø 33,7 x 2 mm
– climbing rung from stainless steel tube Ø 38 mm with twist protection
– inclined ramp from Robinia timber with a tandem guardrail from stainless steel tubes with a fixed Herkules climbing rope Ø 18 mm
– sloped chain ladder with stainless steel rungs
– spatial climbing net made from Hercules ropes fixed to stainless steel crossbeam, twisted at 90°
– sloped scramble up net fixed to stainless steel crossbeam
– wave-shaped counter/bench: made from yellow highly weather-resistant HPL panel (20 mm thickness)
– rotating snap-in steering wheel made from stainless steel, low wear, double roller bearing, inner and outer ring from steel tubesØ 30 x 2 mm, 6 spokes from steel tubes Ø 20 x 2 mm
– rubber flag with fabric insert, for fastening on top of a post
– megaphone with horizontal rotation by 360°
– sand pulley with rubber scoop and stainless steel chain, link thickness of 4 mm. Continuous loop construction to block its drawing into adjoining playing areas/free spaces
– sand chute and rubber sand wheel with fabric insert
– infill panel from highly weather-resistant coloured HPL (red) with sand chute and shutter
– attachment slide, width 0,60 m, one-piece welded assembly, stainless steel sheet thickness: 2,5 mm, with roll-off prevention above the entrance section

For your planning, due to a possible sliding surface heating, please see to a north-east orientation of the slides or provide half-shade of trees.

Robinia timber is furnished with water-repellent, breathable protective coating. Besides protection from moisture, that treatment reduces crack formation. Thanks to a specific fastening adaptor, forces arising from the modular attachment parts are directly derived into the posts. Tamper-proof connections thanks to screws with protective screw cap.

Foundations (on site)
18 pcs. 0,40 x 0,40 x 0,40 m
1 pc. 0,50 x 0,50 x 0,50 m
7 pcs. 0,30 x 0,30 x 0,40 m
1 pc. 0,40 x 0,75 x 0,40 m
concrete amount: 1,65 m³
