12.1000

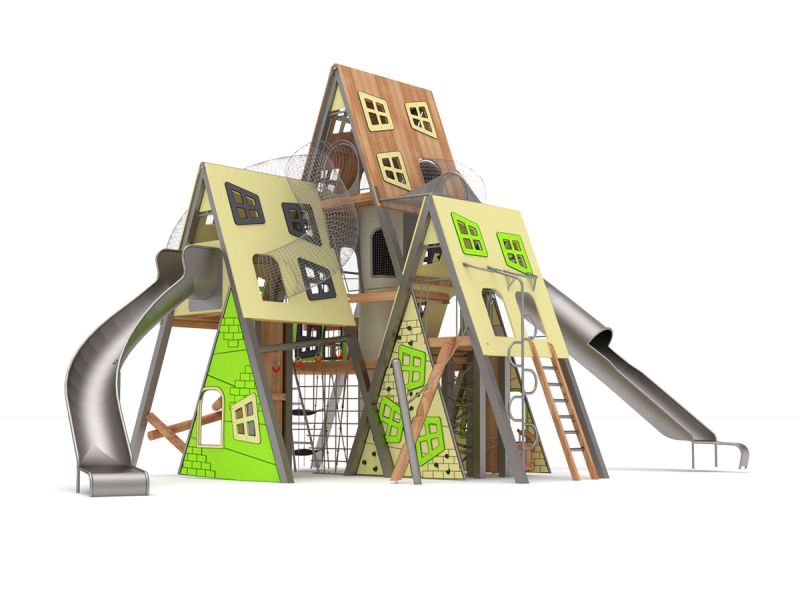

Play Houses Big 3

Play Houses Big 3
Order Number: 12.1000
Material: Stainless steel posts
Wood: Robinia

– One large playhouse with a roof ridge
– Gabled roof made of robinia with 6 HPL windows and 2 HPL gable claddings, sealed with acrylic glass
– Curved slide in a U-shape
– Four grid tunnels made of stainless steel
– Stainless steel climbing tunnel with a floor
– Rear climbing tunnel with a closed window
– Seating arrangement made of robinia, including 1 table and 3 seats
– Ladder to the platform, height 180cm
– Stainless steel gable ascent
– Vertical net ascent
– HPL wall with a hole for net ascent
– Climbing pole
– Pair of suspended seats under the platform
– Climbing ropes with steps
– One medium-sized playhouse with a roof ridge
– Gabled roof made of robinia with 6 HPL windows and 2 HPL gable claddings, sealed with acrylic glass
– Three climbing walls made of robinia
– U-shaped Spiel-Bau slide
– Two grid tunnels made of stainless steel
– Beam with roman rings under the platform
– Three balance beams made of robinia under the platform
– One small playhouse with a roof ridge
– Gabled roof made of robinia with 5 HPL windows and 2 HPL gable claddings, sealed with acrylic glass
– Zig-zag climbing pole
– Ladder to the platform, height 200cm
– Chicken ladder with safety rope
– Rope ascent
– Play wall with a play shelf
– Small balustrade with a sand chute
– Pulley with stainless steel chain and rubber bucket
– Stainless steel sand sieve
– Several balustrades and railings

Please note that technical changes are reserved. The drawings will be inspected by independent experts. Other color combinations are possible, and we would be happy to provide advice.

Made in Germany!
All support posts are made of stainless steel tube with a diameter of 101.6mm. The visible ends of the posts are conclusively welded to a stainless steel cap.
All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection rules.
The connection between the platform/railing and support posts is made through stainless steel press-in threaded sleeves.
The platform is fixed using concentrically incorporated stainless steel brackets.
All wooden parts are made of planed and chamfered Robinia. They are untreated.
The connections between the railing/support post are made through countersunk diagonal holes and stainless steel screws with a special key head-theft protection. The connection point between the net/rope and support posts is made through a specifically formed stainless steel fork and tensible stainless steel chain.
The nets are made of Hercules rope, and all connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim (see supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6).

User Age4-12 years
Download Product Sheet

Technical Information

Fall Height Group

300 cm

Materials

Material

stainless steel, wood, HPL, acrylic glass
