Play House “Hamburg”

Play House “Hamburg”

Play House Hamburg
Order Number: 2.0127-E
Stainless Steel Posts
Wood: Robinia

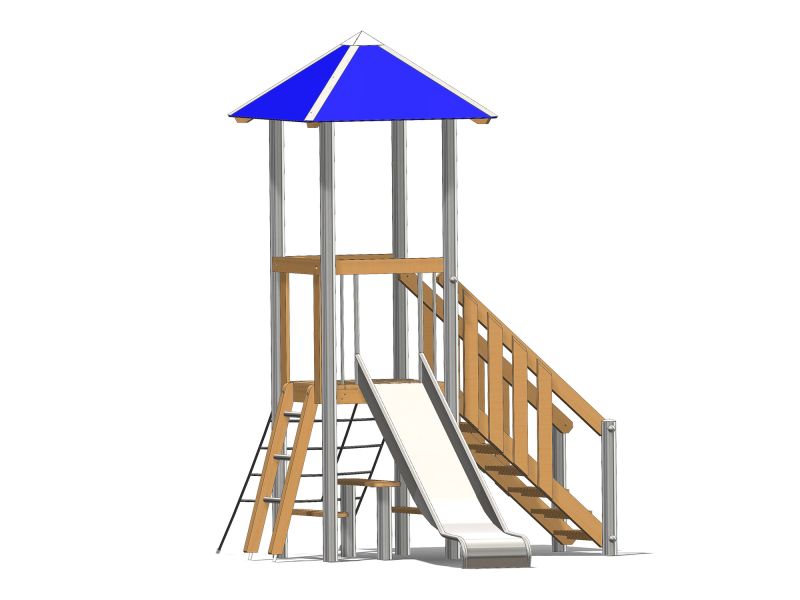

– One square tower measuring 90x90cm with a height of 45cm. It features a tent roof made of HPL (optional standard color assortment) with a stainless steel cap.
– One inclined net made of Hercules Rope.
– One ladder with stainless steel bars.
– One Spiel-Bau slide, box-shaped, made of stainless steel with a height of 120cm and a width of 50cm.
– One stairway with balustrades on both sides.
– One seating group located under the tower, consisting of one table and two seat planks.
– Several balustrades and railings.

Proudly Made in Germany!
All support posts are made of stainless steel tubes with a diameter of 101.6mm. The visible ends of the posts are conclusively welded to a stainless steel cap.
All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection regulations.
All wooden parts are made of Robinia, planed and chamfered. They are left untreated.
The connection between the platform/railing and support posts is achieved through stainless steel press-in threaded sleeves.
The platform is fixed using concentrically incorporated stainless steel brackets.
The pavilion roof is connected to the support posts through individually adjustable stainless steel wing-forks.
The net/rope is connected to the support posts through specifically formed stainless steel forks and tensible stainless steel chains.
The ropes are made of Hercules rope. All connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim (see supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6).
