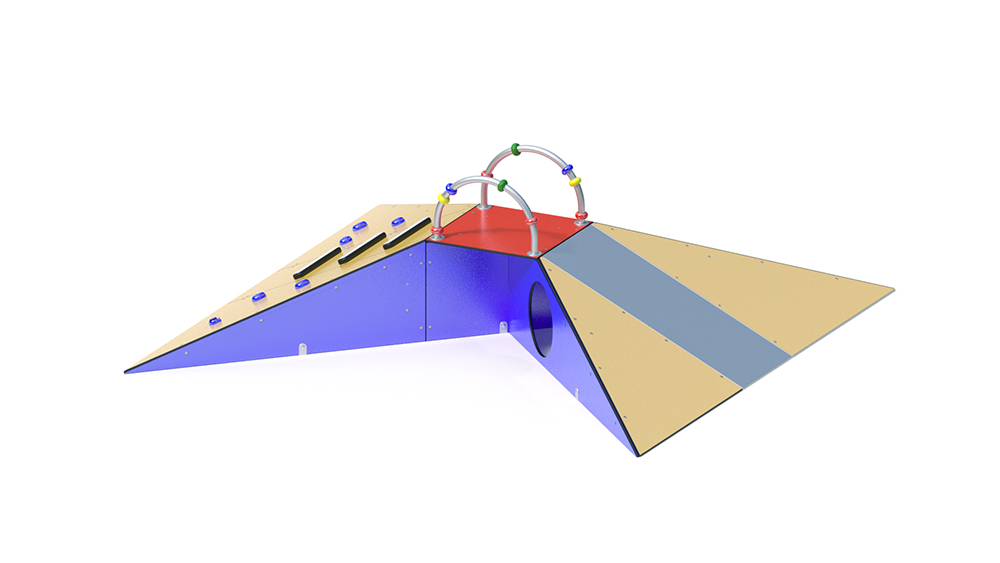

Play hill

Key Attributes

Age Group

1 - 6+

Area of Use

Public Playgrounds



Suitable for

Suitable for
children aged 1 – 6,
public playgrounds, etc.
Exercise / social activities

Techincal Specifications

Lifting Device


Total Length

3.15 m

Total Width

3.15 m

Total Height

1.00 m

Minimum Space Length

6.15 m

Minimum Space Width

6.15 m

Minimum Space Height

1.00 m

Heaviest Single Piece

20.00 kg

(Total) Weight

215.00 kg

Free Height of Fall

0.58 m

Platform Heights

0.58 m


Foundation 1

5 pieces - 1.00 x 0.20 x 0.10 m volume: 0.02 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical Data

Technical data
Floor area: 3.15 x 3.15 m
Minimum space: 6.15 x 6.15 m (36 m²)
Total height: 1.00 m
Platform height: 0.58 m
Weight: 20 kg, heaviest individual part,
215 kg in total

Attachment parts
– platform floor, ramp and side panels (some with crawling opening Ø 410 mm) made of colored, highly weather-resistant HPL laminate panels 10/13 mm.
– Sliding surface made of stainless steel sheet 1362.1 x 615.1 x 3 mm
– School climbing grips made of polyurethane (PU) with steel insert for fastening with countersunk screws, according to DIN EN 1176-1 (playground standard) and DIN EN 12572-3 (climbing wall standard)
– Ball railing made of stainless steel pipe 38 x 2mm, with ABACUS rings Ø 72 x Ø 40 x 34 made of polypropylene (red, blue, green and yellow)
– climbing rungs made of weather-resistant HPL laminate board 30 mm (white),
– foundation anchors made of stainless steel pipe 38 x 2 mm for Embedding
metal components : stainless steel.

– Optionally, we offer various interchangeable game functions for an extra charge and to increase the play value: cockpit, gears, mirrors, sliding game, worm wheel, effect disc or sliding balls.

Please note that the K&K play hill is delivered prepared for two of the above play functions. In the case of an order, please clarify which play functions the K&K play hill should be equipped with.

Foundations (on site)
tamp down or
with light soils: 5 pcs. 1.00 x 0.20 x 0.20 m = 0.04 m³
amount of concrete: 0.20 m³

Free fall height
0.58 m
