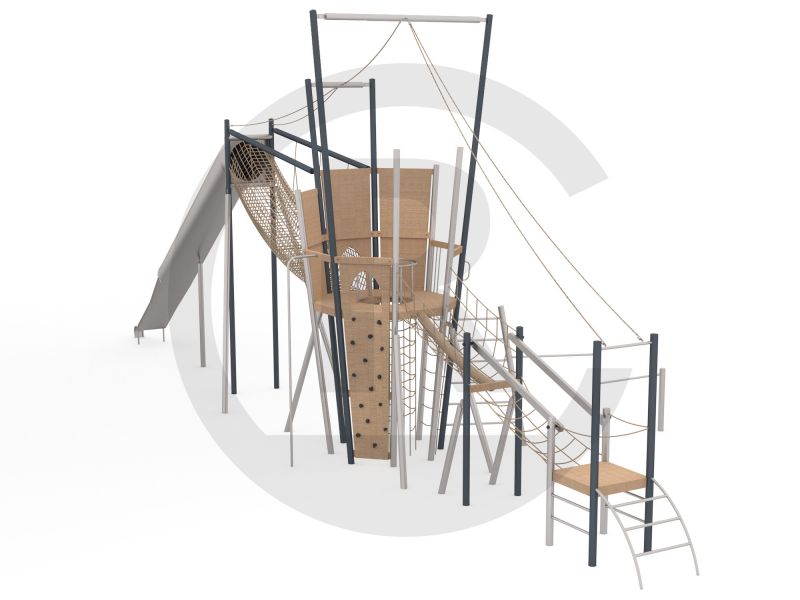

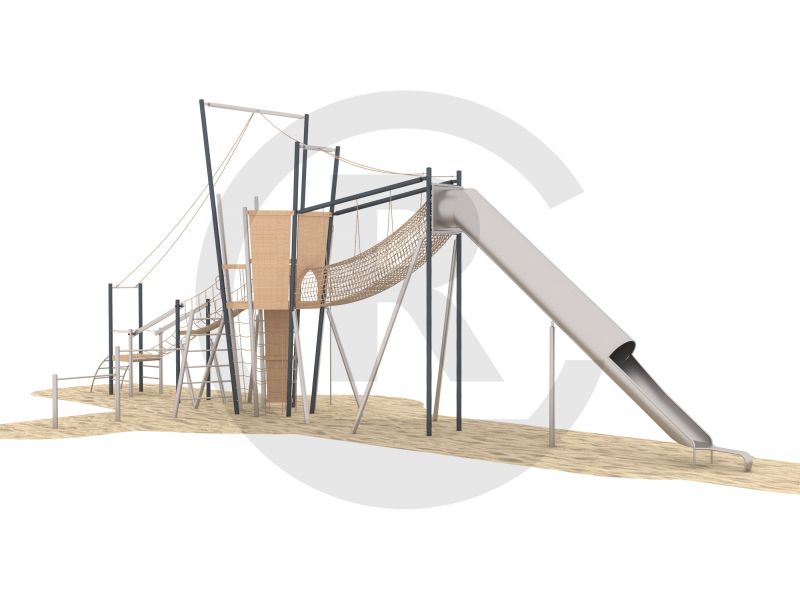

Play Combination “KHD II”
Order Number: 1S-201028-02
Made of stainless steel, the posts are durable and long-lasting.
The wood used is robinia.

– One square platform measuring 90x90cm with a platform height (PH) of 100cm
– An arched ladder made of stainless steel
– Four stainless steel bars
– Three safety ropes made of hercules rope
– A net bridge made of hercules rope, approximately 200cm in length
– A jungle bridge made of hercules rope, attached to two additional stainless steel posts, approximately 200cm in length
– An octagon tower featuring eight inclined stainless steel posts
– An octagon platform with an opening, platform height (PH) of 250cm
– A net tunnel made of Hercules rope
– A fall protection element made of stainless steel
– An HPL climbing wall with a step-through frame and climbing grips made of synthetic resin (optional standard color assortment)
– A climbing net made of hercules rope
– A climbing pole made of stainless steel
– A cultivation trapezoidal ladder made of stainless steel
– Two horizontal bars, measuring 100/150cm in height
– Three handrails made of robinia
– Three elevated balustrades, including one with an access opening for the net tunnel
– A net tunnel, approximately 400cm in length, suspended on two stainless steel carriers
– An endstock with two stainless steel posts
– A tunnel slide made of stainless steel, with a height (PH) of 400cm
– Several pressure support posts

This product does not come with color design.

Made in Germany!
All support posts are made of stainless steel tubes with a diameter of 101.6mm.
The visible ends of the posts are welded securely to stainless steel caps.
All stainless steel surfaces are treated with glass marbles in accordance with environmental protection regulations.
All wooden parts are made of planed and chamfered robinia. They are left untreated.
The connection between the platform/railing and support posts is achieved through stainless steel press-in threaded sleeves.
The platform is fixed using concentrically incorporated stainless steel brackets.
The connection point between the net/rope and support posts is made through specifically formed stainless steel forks and tensile stainless steel chains.
The nets are made of Hercules rope.
All connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are a natural occurrence in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not warrant a warranty claim. (Refer to the supplementary sheet from the German Institute for Standardization EN 1176, Note on 4.2.7.6)
