2.0159-E

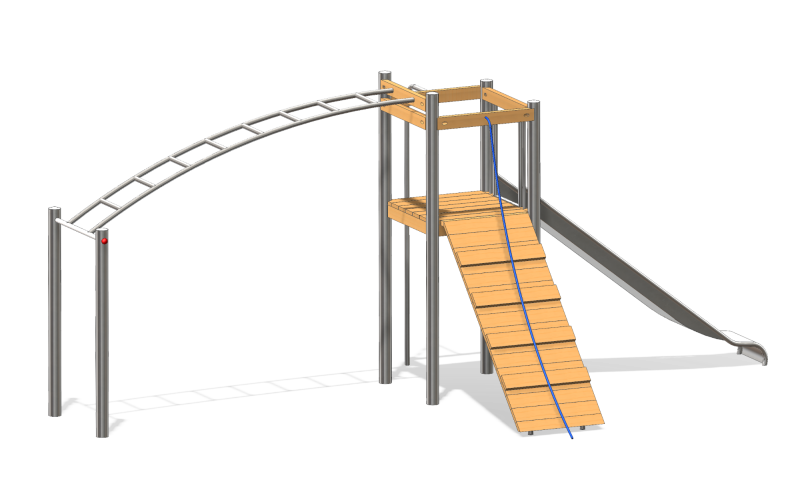

Play Combination “Frankenberg”

Play combination “Frankenberg”
Order Number: 2.0159-E
Stainless steel posts
Wood: Robinia

– One square framework, measuring 90x90cm, with a platform height of 150cm
– One stainless steel arched ladder, approximately 200cm in length
– One stainless steel climbing pole
– One box-shaped Spiel-Bau slide, made of stainless steel, with a platform height of 200cm and a width of approximately 50cm
– One climbing ramp with a 45° inclination, equipped with climbing assistance steps and a safety rope
– Several balustrades and railings

Proudly made in Germany!
All support posts are constructed using stainless steel tubes with a diameter of 101.6mm. The visible ends of the posts are securely welded to stainless steel caps.
To comply with environmental protection regulations, all stainless steel surfaces are treated with glass marbles.
All wooden parts are made of Robinia, planed and chamfered. They remain untreated.
The connection between the platform/railing and the support posts is achieved through stainless steel press-in threaded sleeves.
The platform is fixed in place using concentrically incorporated stainless steel brackets.
The railing is connected to the support posts using diagonal bore countersunk holes and stainless steel screws with a special key-head-theft-protection feature.
The nets are made of Hercules rope, and all connecting parts are either stainless steel or galvanized. Only self-locking nuts are used.

It is normal for drying cracks to appear in all native hardwoods, even after proper storage and professional treatment. Therefore, drying cracks do not warrant a warranty claim. (Please refer to the supplementary sheet from the German Institute for Standardization EN 1176, Note on 4.2.7.6)

Spiel-Bau GmbH
Alte Weinberge 21
14776 Brandenburg an der Havel
Phone: 03381 26140
Fax: 03381 261418

User Age5-10
Download Product Sheet

Technical Information

Area

893 x 617 cm

Fall Height Group

250 cm

Materials

Material

stainless steel, wood
