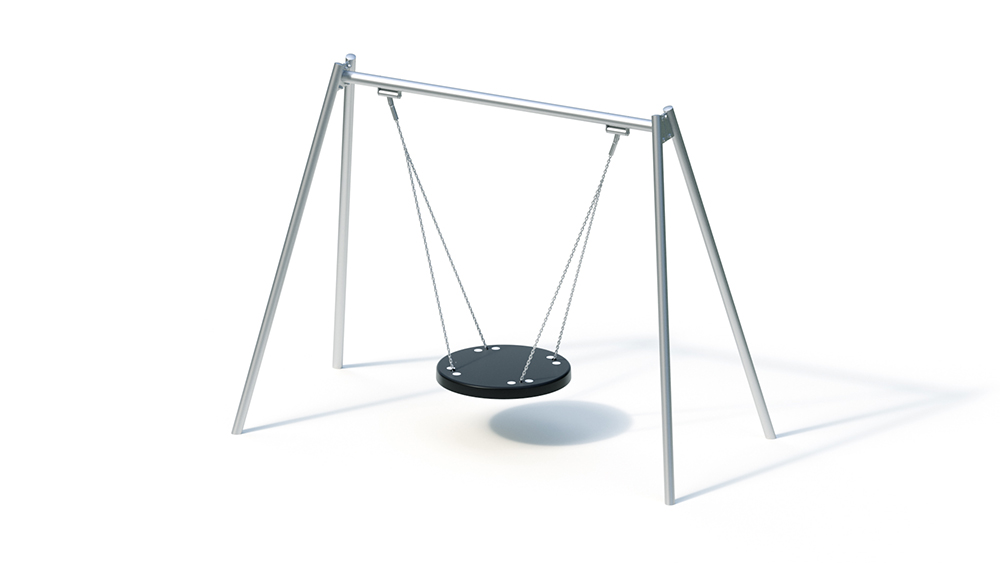

Platform swing (2.50)

Key Attributes

Age Group


Area of Use




Suitable for

Suitable for
children from 5 years of age,
supervised playgrounds, etc.
Exercise activities

Techincal Specifications

Lifting Device


Total Length

1.75 m

Total Width

3.65 m

Total Height

2.71 m

Minimum Space Length

8.40 m

Minimum Space Width

3.65 m

Minimum Space Height


Heaviest Single Piece

40.00 kg

(Total) Weight

160.00 kg

Free Height of Fall

1.52 m

Platform Heights



Foundation 1


Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters each 1.5 hours (without foundation creation)

Technical Data

Technical data
Floor area: 1.75 x 3.65 m
Minimum space: 3.65 x 7.89 m (18 m²)

Swing height: 2.50 m
Weight: 40 kg heaviest single part
160 kg in total

– rocking supports made of steel tube Ø 76.1 mm, wall thickness 3 mm; galvanized; Connection to swing carrier via connection plates
– swing carrier made of steel tube Ø 88.9 mm, wall thickness 3.2 mm; galvanized; Connection to swing supports via connection
plates – specially designed swivel and universal joints, designed for the high dynamic requirements of this platform
swing – two-part swing axis made of stainless steel with roller bearings including a second device to secure the swing seat to prevent falling if the main attachment fails.

Chain holder with sliding-bearing compensating cross -joint – Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated, ball-bearing swivel to prevent the chains from becoming knotted
– on swing axes and on the swing platform: chain attachment with clamp adapter made of stainless steel
– large round rubber single-point swing seat Ø 100 cm, shock-absorbing, with shape-stabilizing polyethylene core plate

Foundations (on site)
4 pcs. 0.50 x 0.70 x 0.50 m
amount of concrete: 0.70 m³

Free fall height
1.52 m
