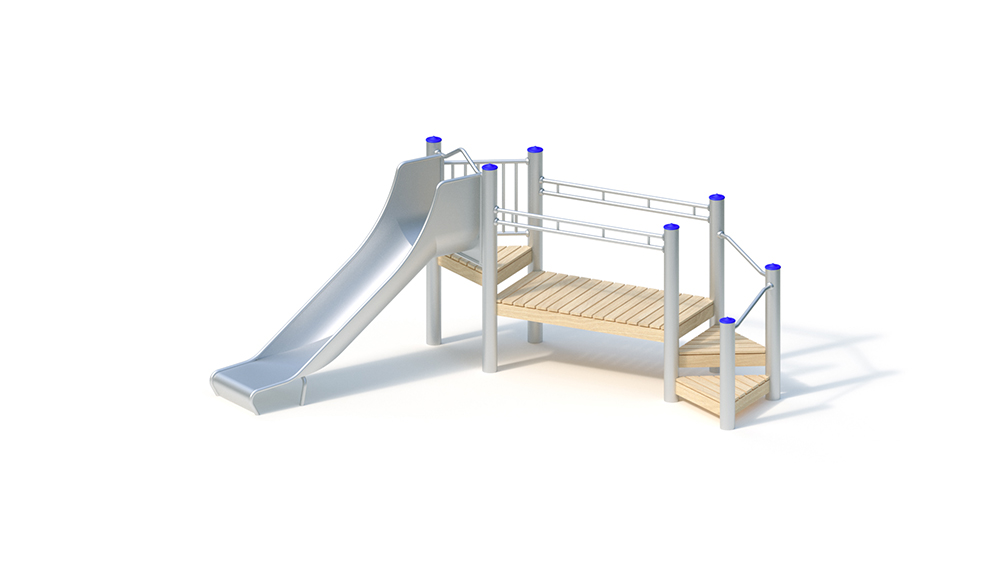

Platform combination
Key Attributes
Age Group
3+
Area of Use
Public Playgrounds
Activity
Slide
Suitable for
Suitable for
children from 3 years,
public playgrounds etc.,
exercise activities.
Techincal Specifications
Lifting Device
-
Total Length
4.05 m
Total Width
2.70 m
Total Height
1.75 m
Minimum Space Length
7.20 m
Minimum Space Width
6.30 m
Minimum Space Height
2.40 m
Heaviest Single Piece
75.00 kg
(Total) Weight
310.00 kg
Free Height of Fall
0.90 m
Platform Heights
0.20 m, 0.40 m, 0.60 m, 0.80 m
Foundations
Foundation 1
7 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
4 h
Assembly Details
Assembly time 2 fitters each 3.5 hours (without foundation creation)
Technical Data
Technical data
Floor area: 2.70 x 4.05 m
Minimum space: 6.30 x 7.20 m (33 m²)
Total height: 1.75 m
Platform height: 0.20 / 0.40 / 0.60 / 0.80 m Slide installation height
: 0.80 m
Single seat height: 0.90 m
Weight: 70 kg Heaviest single part
310 kg in total
Post made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Attachments
– lattice balustrade stainless steel pipe, Ø 33.7 x 2/25 x 2 mm, single-piece welded structure
– stages handrails of stainless steel pipe, Ø 33.7 x 2 mm, for stepwise arranged pedestal floors
– Tandem handrails of stainless steel pipe, Ø 33.7 x 2 mm
– Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll-off fall protection above the seat part
For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.
Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
7 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.57 m³
Free fall height
0.90 m
