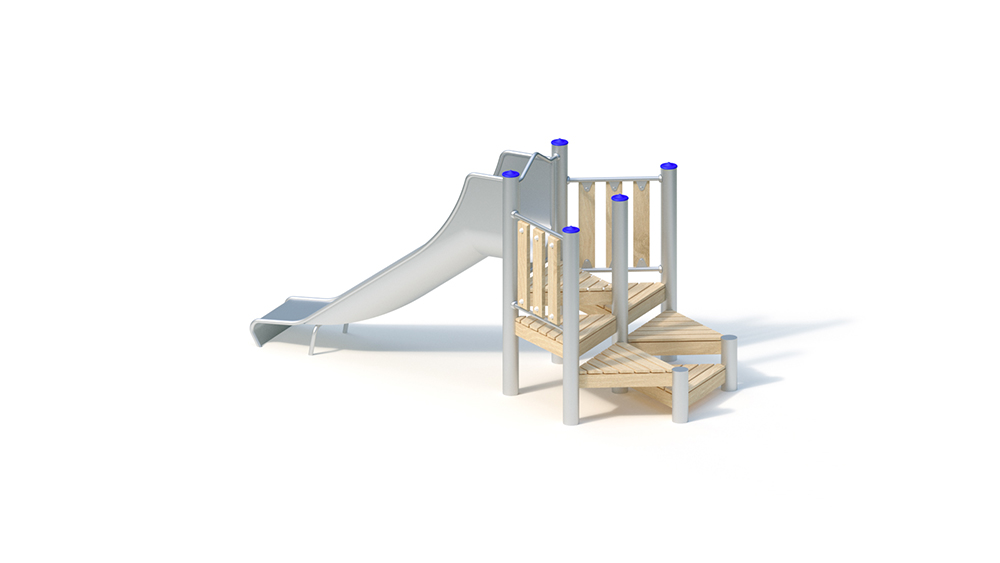

Platform combination
Key Attributes
Age Group
3+
Area of Use
Public Playgrounds
Activity
Slide
Suitable for
Suitable for
children from 3 years,
public playgrounds, etc.,
exercise activities
Techincal Specifications
Lifting Device
-
Total Length
3.65 m
Total Width
1.75 m
Total Height
1.75 m
Minimum Space Length
7.25 m
Minimum Space Width
4.75 m
Minimum Space Height
2.40 m
Heaviest Single Piece
75.00 kg
(Total) Weight
290.00 kg
Free Height of Fall
0.90 m
Platform Heights
0.20 m, 0.40 m, 0.60 m, 0.80 m
Foundations
Foundation 1
7 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
4 h
Assembly Details
Assembly time 2 fitters each 3.5 hours (without foundation creation)
Technical Data
Technical data
Total height: 1.75 m
Base area: 1.75 x 3.65 m
Minimum space: 4.75 x 7.15 m (25 m²)
Platform height: 0.20 / 0.40 / 0.60 / 0.80 m Slide installation height
: 0.80 m
Single seat height: 0.90 m
Weight: 70 kg Heaviest single part
285 kg in total
Support
posts Support posts made of stainless steel Ø 120 mm, covered with non-detachable post caps made of stainless steel. Support posts that are flush with the platform are covered with welded circular blanks made of stainless steel.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Attachments
– wooden parapet made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
– add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll protection against falling over the seat part
For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.
Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
7 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.57 m³
Free fall height
0.90 m
