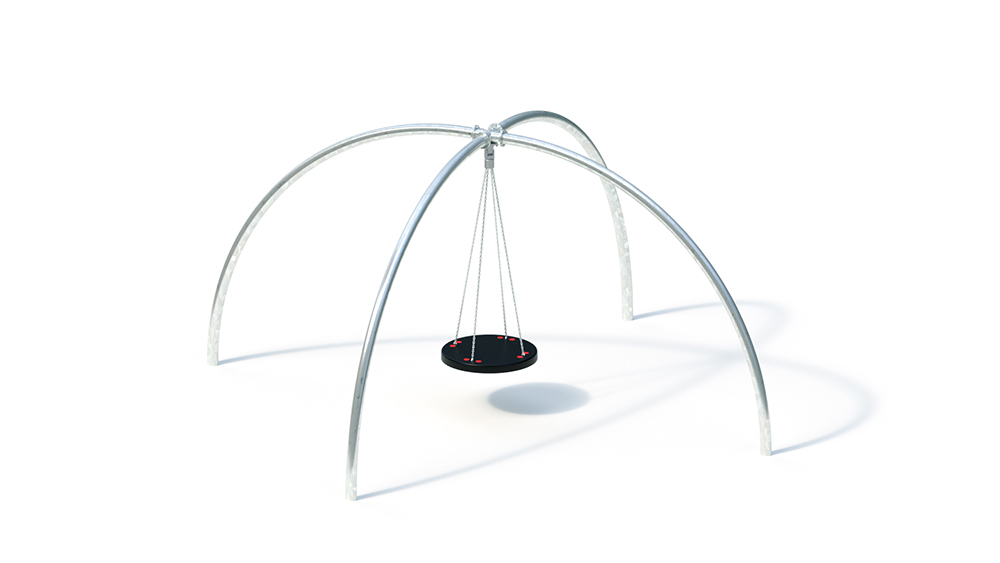

Pendulum oscillator
Key Attributes
Age Group
-+
Area of Use
public playgrounds
Activity
Swings
Suitable for
Suitable for
children from 8 years,
public playgrounds etc.,
physical activities
Techincal Specifications
Lifting Device
-
Total Length
6.45 m
Total Width
6.45 m
Total Height
3.26 m
Minimum Space Length
9.30 m
Minimum Space Width
9.30 m
Minimum Space Height
-
Heaviest Single Piece
60.00 kg
(Total) Weight
300.00 kg
Free Height of Fall
2.25 m
Platform Heights
-
Foundations
Foundation 1
4 pieces - 0.75 x 0.75 x 0.70 m volume: 0.39 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
3 h
Assembly Details
Assembly time 2 fitters each 3 hours, plus lifting gear (without creating the foundation)
Technical Data
Technical data
Floor area: 6.45 x 6.45 m
Minimum space: Ø 9.30 m (68 m²)
Swing height: 3.25 m
Weight: 60 kg Heaviest single part
300 kg in total
– Rocking frame made of hot-dip galvanized round steel tubes, Ø 114.3 x 3.6 mm
– Special universal joint (Kaiser & Kühne)
– Rubber rocking platform Ø 1.00 m, shock-absorbing, with shape-stabilizing polyethylene core plate and chain suspension consisting of stainless steel chains Ø 7 mm
Foundations (on site)
4 pcs. 0.75 x 0.75 x 0.70 m
amount of concrete: 1.58 m³
Free fall height
2.25 m
