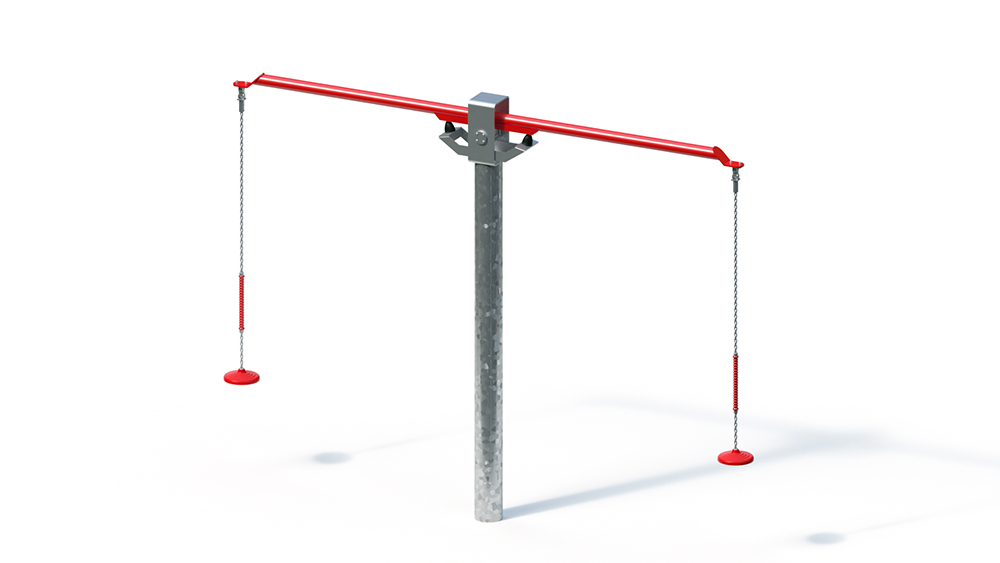

Pendulum balance
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Rock
Techincal Specifications
Lifting Device
-
Total Length
3.80 m
Total Width
0.25 m
Total Height
3.05 m
Minimum Space Length
8.35 m
Minimum Space Width
4.70 m
Minimum Space Height
3.05 m
Heaviest Single Piece
165.00 kg
(Total) Weight
240.00 kg
Free Height of Fall
1.30 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 1.00 x 1.00 x 0.80 m volume: 0.80 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters 2 hours each (without foundation creation)
Technical Data
Technical data
Floor area: 0.25 x 3.80 m
Minimum space: 4.70 x 8.35 m (38 m²)
Total height: 3.05 m
Weight: 165 kg, heaviest individual part,
240 kg in total
– Post made of steel tube Ø 193.7 x 5.6 mm, hot-dip galvanized, with base plate.
– Rocking mechanism made of vibration-damping rubber suspension. In addition, shock-absorbing thanks to parabolic rubber buffers.
–
Pendulum scales support , hot-dip galvanized steel, additionally powder-coated, color: red / RAL 2002. – Universal joints made of stainless steel with ball-bearing swivel.
– Safety swing seats with thermally pressed, flexible rubber handle on stainless steel chains.
Foundation (on site)
1 pc. 1.00 x 1.00 x 0.80 m
amount of concrete: 0.80 m³
Free fall height
1.30 m
