081236M

Obstacle Wall

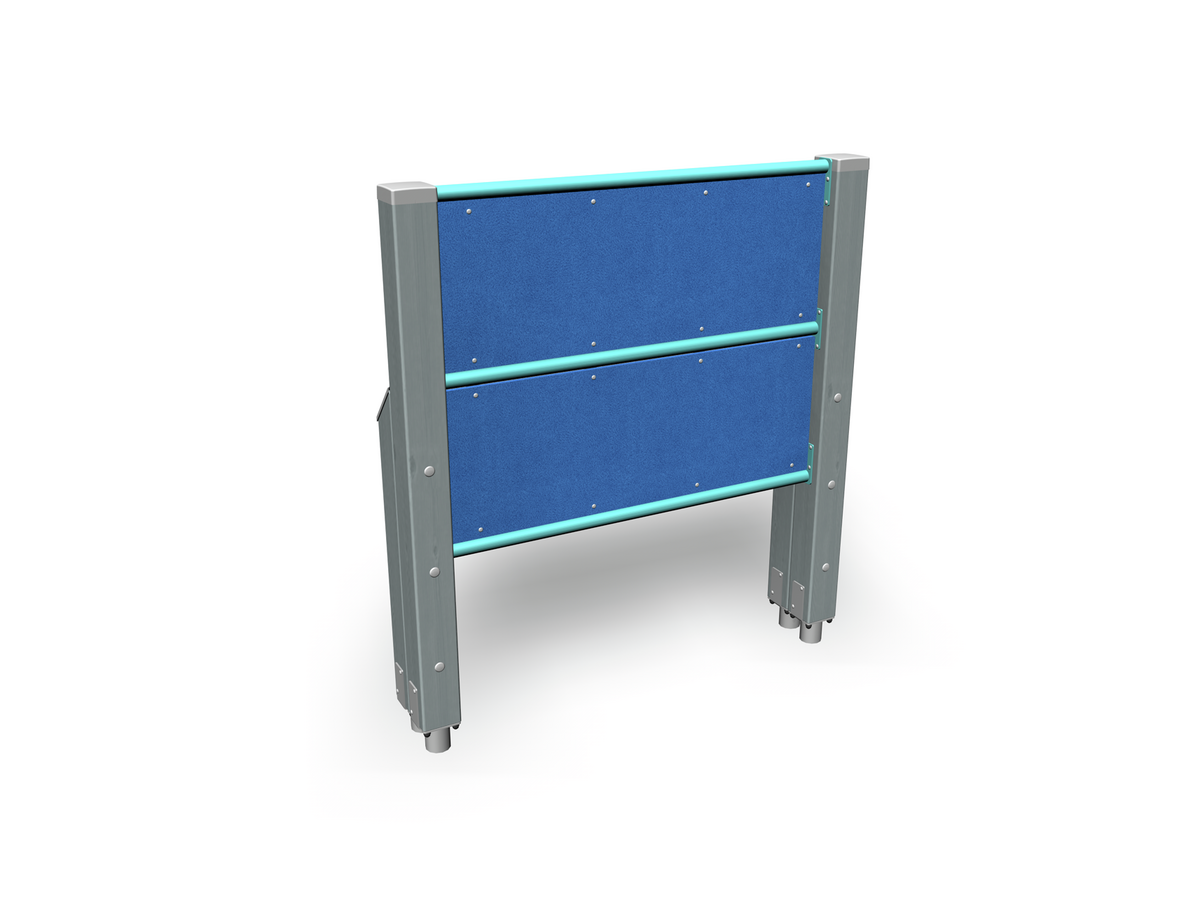

The Obstacle Wall is a 1,655 mm wall consisting of a solid panel between two vertical posts. There is a gap beneath the panel, allowing you also to pass under the wall, for example on every other pass. Climbing a wall is a fun way of providing new forms of exercise, which is guaranteed to raise the heart rate!

Safety StandardsEN 16630, EN 1176-1 TÜV
Download Product Sheet

Technical Information

Length

245MM

Width

1500MM

Height

1655MM

Heaviest Part

14.5KG

Largest Part

1520MM

Min Space Height

3155MM

Area Of Movement

13.7M²

Area Of Movement Length

4700

Area Of Movement Width

3320

Impact Area

13.7M²

Max Free Fall Height

1645MM

Made In Finland

Materials

Material Text

The EPDM rubber granule mat glued onto the HPL plates used in ball throw walls, climbing surfaces and platforms is specifically intended for outdoor use. Thanks to its anti-slip qualities, it improves the product’s usability. The frame structure is made of 120 x 120 mm dense-grained pine laminate which has been pressure-treated, coated with coloured transparent paint and varnished. obstacle wall

Installation

Installation Time

3H (for 1)

Netto Weight

131.116KG
