Ninja Frame straight

Ninja Frame straight

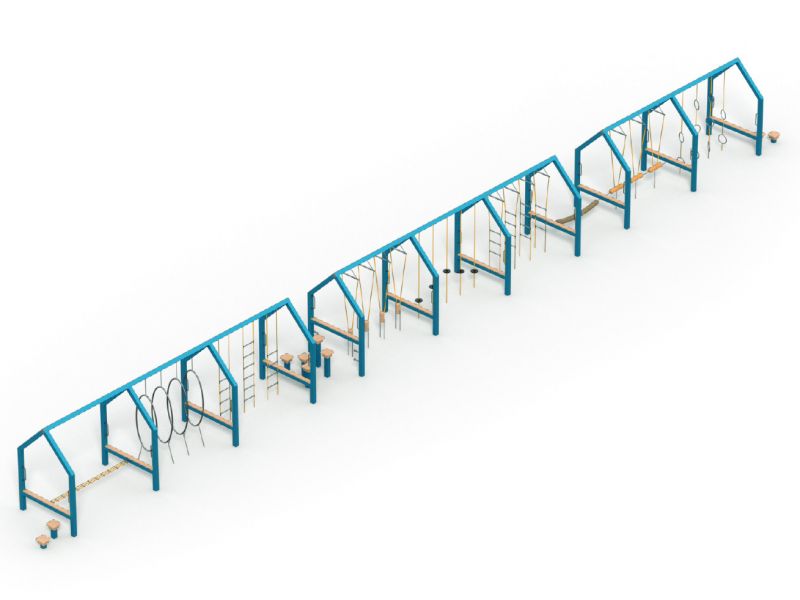

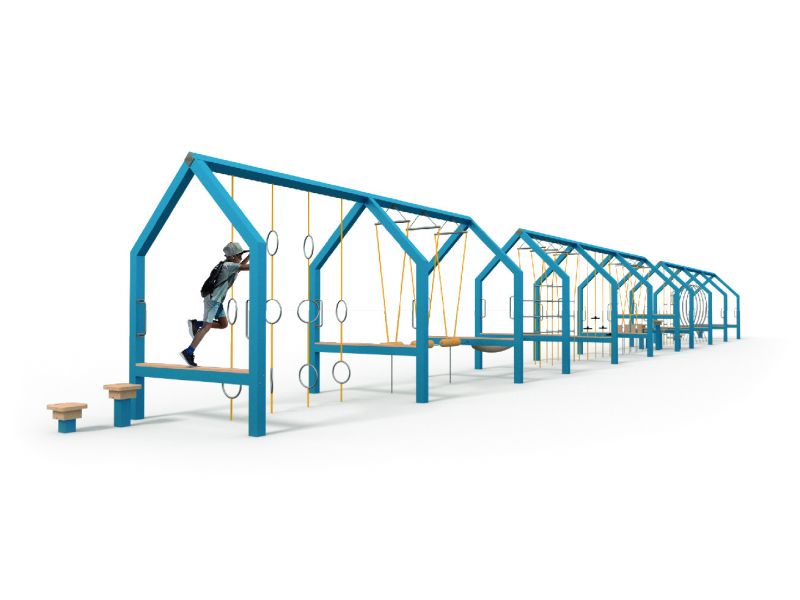

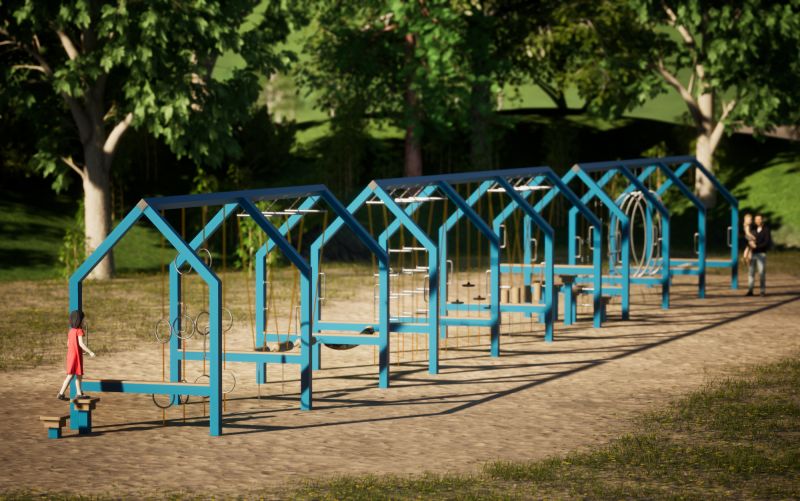

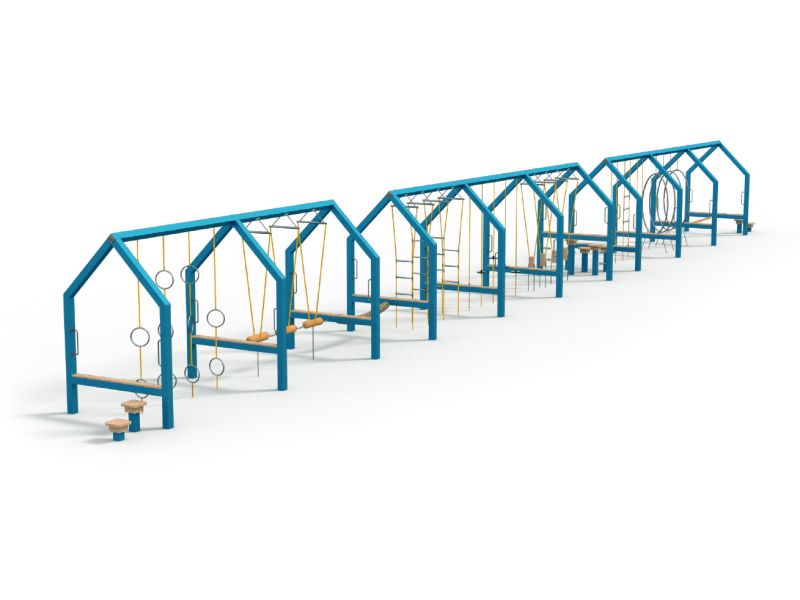

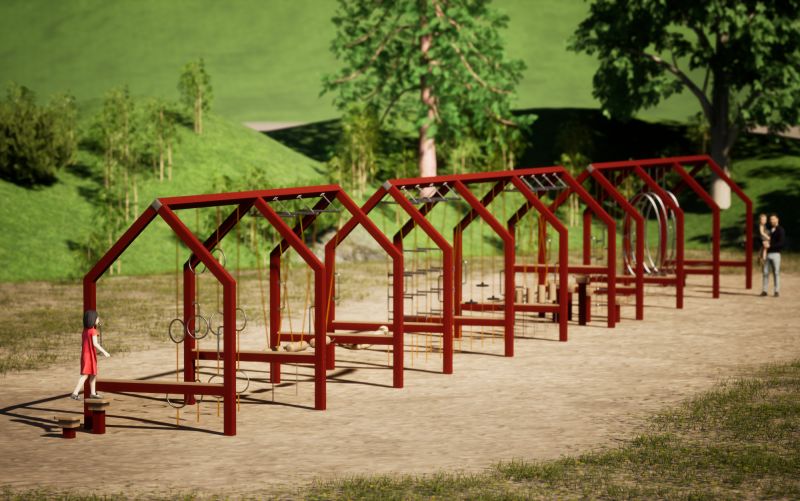

The Ninja Frame is constructed with a stainless steel frame and posts, while the wood used is Robinia.

– The frame is made of squared stainless steel.
– There are 10 climbing passages that are lined up and connected by frames.
– The dimensions of the frame are 2935cm in length, 210cm in width, and 300cm in height.
– Each frame has horizontal beams with planks made of Robinia.
– Inside each frame, there is a pair of handles attached.
– The climbing passages include:
– 2 small climbing platforms made of Robinia, mounted on stainless steel posts at different heights.
– 4 climbing ropes with stainless steel rings.
– 3 swinging timbers that are attached to climbing ropes and chains.
– 1 balance rope with a length of approximately 200cm.
– 4 rope ladders with stainless steel bars, aligned transversely.
– 5 climbing ropes with balance plates.
– 4 balance blocks made of Robinia, attached to ropes and chains.
– 5 small climbing platforms made of Robinia, mounted on stainless steel posts at different heights.
– 3 rope ladders with stainless steel bars, aligned lengthways.
– 4 lion rings made of stainless steel, attached to chains, aligned transversely.
– 1 slackline with 3 ropes made of Hercules rope, with a length of approximately 300cm.
– 2 small climbing platforms made of Robinia, mounted on stainless steel posts at different heights.

The frames and posts made of stainless steel are powder coated.

This product is proudly made in Germany!

All support posts are made of squared stainless steel tube measuring 120x120mm.

To ensure environmental protection, all stainless steel surfaces are radiated with glass marbles.

All wooden parts are made of planed and chamfered Robinia. They are left untreated.

The connection point between the net/rope and support posts is achieved through a specifically formed stainless steel fork and a tensible stainless steel chain.

The ropes/nets are made of Hercules rope.

All connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Please note that drying cracks are normal in all native hard woods, even after appropriate storage and professional treatment. Therefore, drying cracks do not qualify for a warranty claim. (Refer to the supplementary sheet for the German Institute for Standardization EN 1176, Note on 4.2.7.6)
