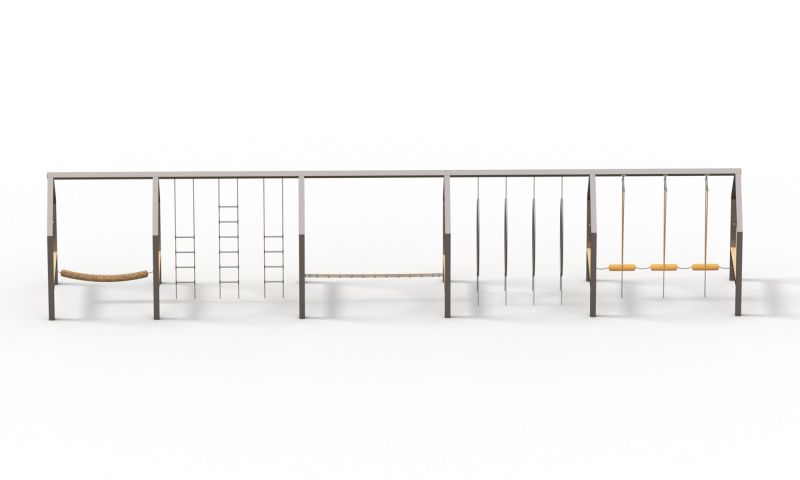

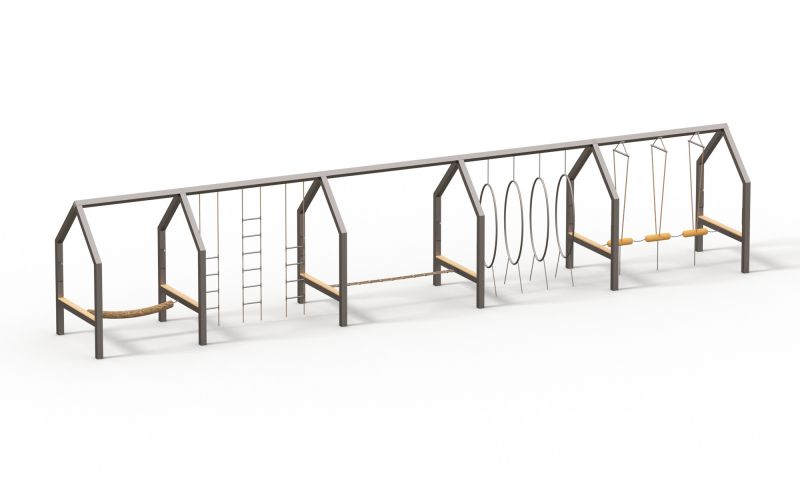

Ninja Frame Rox
Ninja Frame Rox is a durable and high-quality structure, designed with a stainless steel frame and posts. The wood used is Robinia, known for its strength and durability.
The structure includes the following features:
– A squared stainless steel frame
– Five climbing passages, connected by frames
– Horizontal beams with robinia planks on each frame
– Handles attached to each frame for added support
– Various climbing elements, including a balance rope, three rope ladders with stainless steel bars, a slackline with three ropes made of hercules rope, and three swinging timbers attached to climbing ropes and chains
– Several climbing surfaces made of robinia on stainless steel posts at different heights
The frames and posts are powder coated for added protection. Ninja Frame Rox is proudly made in Germany, with all support posts made of squared stainless steel tube measuring 120x120mm. The stainless steel surfaces are radiated with glass marbles to comply with environmental protection rules. The wooden parts are made of planed and chamfered Robinia, and they remain untreated.
The connection point between the net/rope and support posts is made through a specifically formed stainless steel fork and a tensible stainless steel chain. The ropes and nets are made of Hercules rope. All connecting parts are made of stainless steel or galvanized, and only self-locking nuts are used.
Please note that drying cracks are normal in all native hard woods, even after appropriate storage and professional treatment. Therefore, drying cracks do not qualify as a warranty claim (refer to the supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6).
Technical Information
Area
510 x 1790 cm
Fall Height Group
300 cm
Materials
Material
stainless steel, wood
