Ninja Frame Lichtenhaeger

Ninja Frame Lichtenhaeger

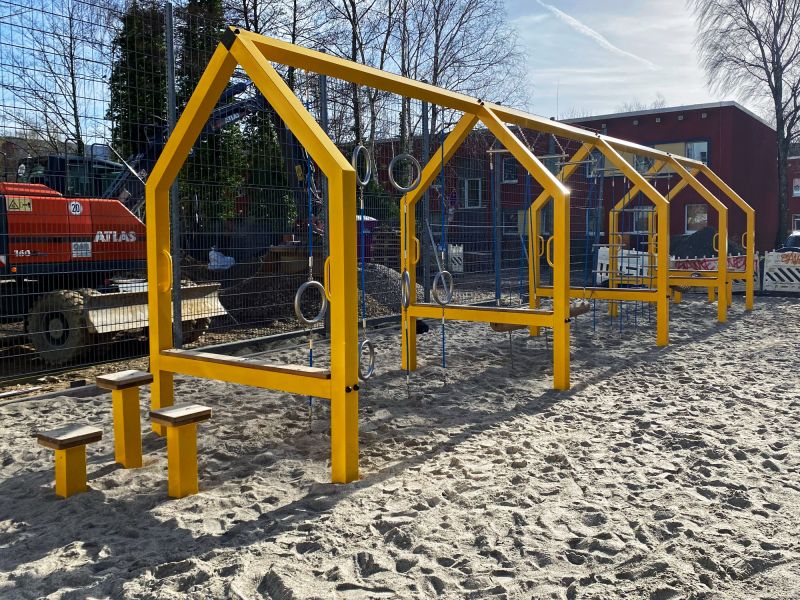

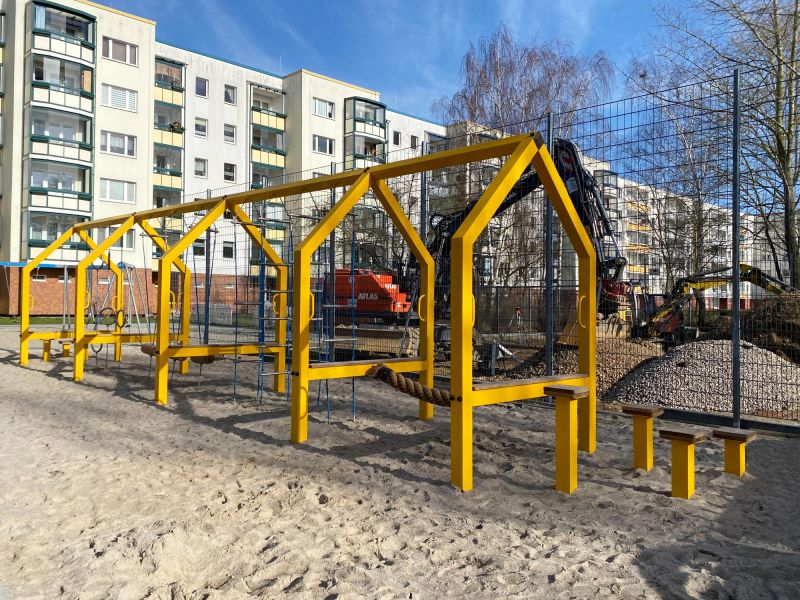

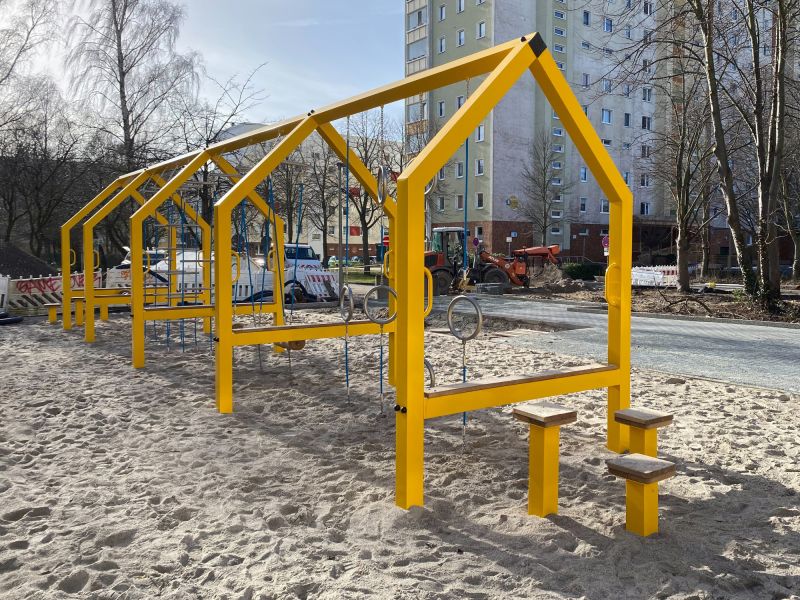

The Ninja Frame Lichtenhaeger is a durable and high-quality structure, featuring a frame and posts made of stainless steel. The wood used for this frame is Robinia.

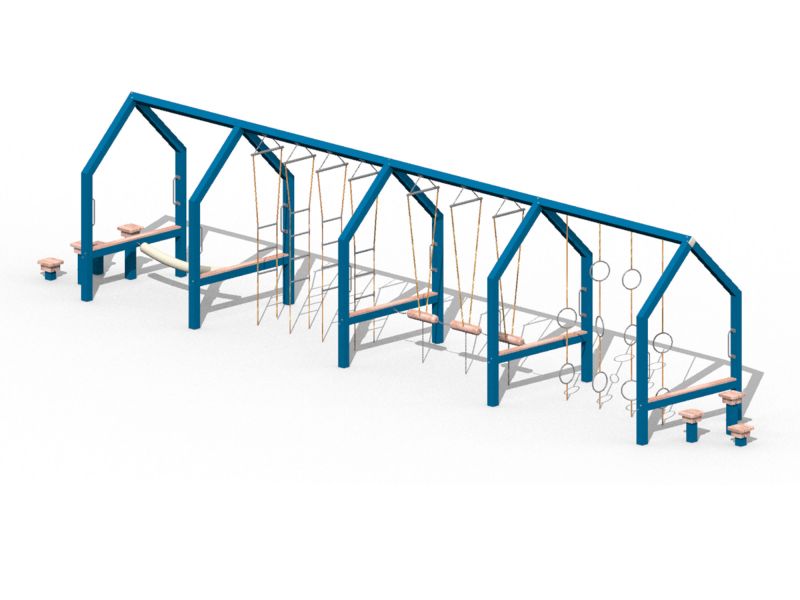

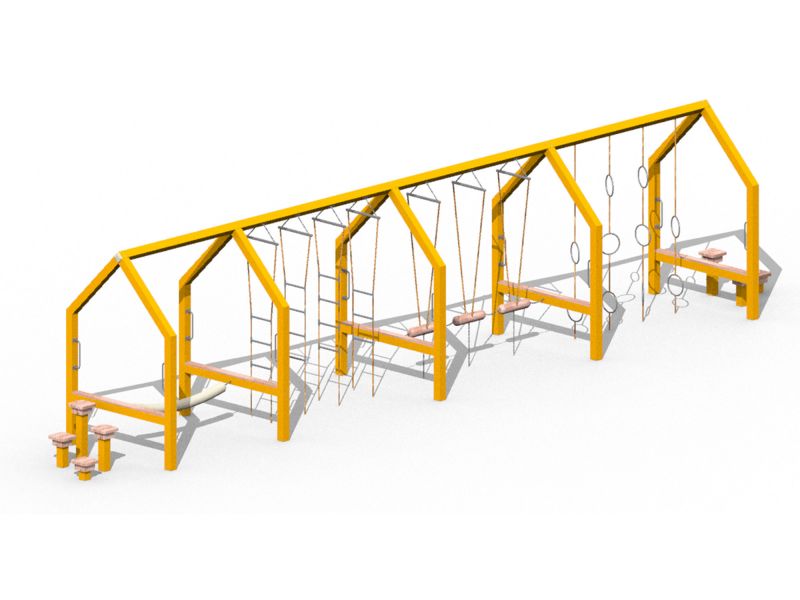

The frame is constructed using squared stainless steel, providing stability and strength. There are four climbing passages, which are lined up and connected by frames. The dimensions of the structure are 2935cm in length, 210cm in width, and 300cm in height. Each frame has horizontal beams with planks made of Robinia. Additionally, there is one pair of handles attached to each frame, aligned inside.

The climbing passages consist of various elements, including four climbing ropes with rings made of stainless steel, three swinging timbers attached to climbing ropes and chains, four rope ladders with stainless steel bars aligned transversely, and one balance rope with a length of approximately 200cm.

Furthermore, there are several small climbing platforms made of Robinia, which are mounted on stainless steel posts at different heights.

The frames and posts made of stainless steel are coated with powder for added protection. This product is proudly made in Germany.

All support posts are made of squared stainless steel tube measuring 120x120mm. To ensure environmental protection, all stainless steel surfaces are radiated with glass marbles.

The wooden parts of the structure are made of Robinia and have been planed and chamfered. They are left untreated. The connection point between the net/rope and support posts is achieved through a specifically formed stainless steel fork and a tensible stainless steel chain. The ropes/nets used are made of Hercules rope. All connecting parts are made of stainless steel or galvanized, and only self-locking nuts are used.

Please note that drying cracks are normal in all native hard woods, even after appropriate storage and professional treatment. Therefore, drying cracks do not warrant a claim under warranty (see supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6).
