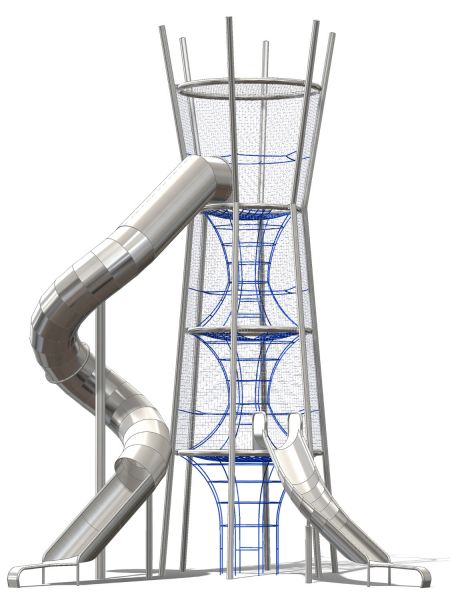

Nets Tower Edmonson I

Nets Tower Edmonson I

Nets Tower Edmonson I
Order Number: SK-180111-91
Constructed with stainless steel posts
Approximate total height: 900cm

– 6 support posts made of stainless steel
– 4 rings made of stainless steel, with ring heights of approximately 200cm, 400cm, 600cm, and 800cm
– 3 circular horizontal nets, with heights of approximately 200cm, 400cm, and 600cm, made of Hercules rope
– 3 net chimneys made of Hercules rope
– 1 tunnel slide/spiral chute, with a height of 600cm, including a safe landing zone, made of stainless steel
– 1 slide, U-shaped with a curve, with a height of 200cm, including a safe landing zone, made of stainless steel
– Several climbing ropes made of Hercules rope, located inside the tower construction
– Lateral walls and top made of stainless steel wire cable net
– 9 anchor plates (35 x 35 x 1.50cm) located at the beginning of the posts

Proudly made in Germany!
All support posts are made of stainless steel tubes with a diameter of 101.6mm. The visible ends of the posts are securely welded to stainless steel caps.
All stainless steel surfaces are polished with glass marbles in accordance with environmental protection regulations.
The connection between the platform/railing and support posts is achieved through stainless steel press-in threaded sleeves.
The platform is fixed using concentrically incorporated stainless steel brackets.
The connection point between the net/rope and support posts is made using specially formed stainless steel forks and tensionable stainless steel chains.
All nets and ropes are made of Hercules rope. All connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Spiel-Bau GmbH
Alte Weinberge 21
14776 Brandenburg an der Havel
Phone: 03381 26140
Fax: 03381 261418

Download Product Sheet
