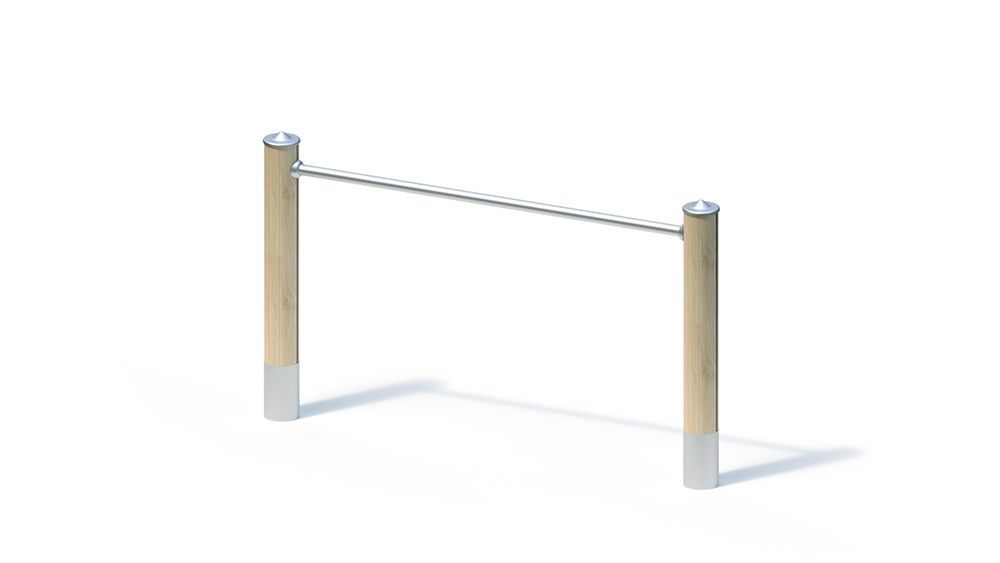

Minireck (0.90)
Key Attributes
Age Group
3+
Area of Use
Public Playgrounds
Activity
Physical
Suitable for
Suitable for
children from 8 years,
public playgrounds etc.,
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
1.75 m
Total Width
-
Total Height
1.05 m
Minimum Space Length
4.75 m
Minimum Space Width
3.15 m
Minimum Space Height
1.05 m
Heaviest Single Piece
15.00 kg
(Total) Weight
35.00 kg
Free Height of Fall
0.92 m
Platform Heights
-
Foundations
Foundation 1
2 pieces - 0.50 x 0.50 x 0.50 m volume: 0.13 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
1 person
Assembly Time
1 h
Assembly Details
Assembly time 1 fitter every 1 hour (without foundation creation)
Technical Data
Technical data
Floor area: 1.75 x 0.85 m
Minimum space: 4.75 x 3.85 m (16 m²)
Total height: 1.25 m
Bar height: 1.10 m
Weight: 20 kg heaviest individual part
75 kg in total
Support
posts Support posts made of stainless steel tube Ø 114.3 mm, wall thickness 3 mm, with welded post caps made of stainless steel.
Add-on parts bar stiles made of stainless steel tube, Ø 38 x 2.5 mm, twist-
proof, clear width between bar stiles 0.36 cm
Metal
components : stainless steel 1.4301 The modular add-on parts transfer their forces directly into the support posts via a special adapter attachment.
The screw connections are secured against unauthorized loosening.
Foundations (on site)
4 pcs. 0.50 x 0.50 x 0.50 m
amount of concrete: 0.50 m³
Free fall height
1.12 m
