0-53109-500

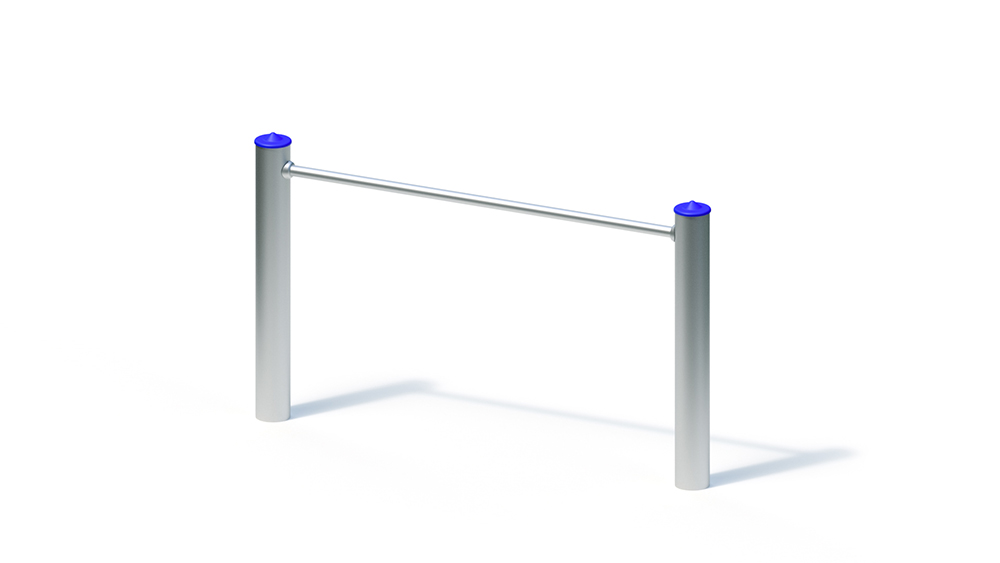

Minireck (0.90)

Key Attributes

Age Group

3+

Area of Use

Public Playgrounds

Activity

Physical

Suitable for

Suitable for
children from 3 years,
public playgrounds etc.,
sporting activities

Techincal Specifications

Lifting Device

-

Total Length

1.75 m

Total Width

-

Total Height

1.05 m

Minimum Space Length

4.75 m

Minimum Space Width

3.15 m

Minimum Space Height

1.05 m

Heaviest Single Piece

15.00 kg

(Total) Weight

35.00 kg

Free Height of Fall

0.92 m

Platform Heights

-

Foundations

Foundation 1

2 pieces - 0.50 x 0.50 x 0.50 m volume: 0.13 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

1 person

Assembly Time

1 h

Assembly Details

Assembly time 1 fitter every 0.5 hours (without foundation creation)

Technical Data

Technical data
Length: 1.75 m
Minimum space: 4.75 x 3.15 m (16 m²)
Total height: 1.05 m
Height of bar: 0.90 m
Weight: 15 kg, heaviest individual part
35 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Add-on parts,
horizontal bar made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, twist-proof

Metal components: stainless steel 1.4301
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment.
The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
2 pcs. 0.50 x 0.50 x 0.50 m
amount of concrete: 0.30 m³

Free fall height
0.92 m
