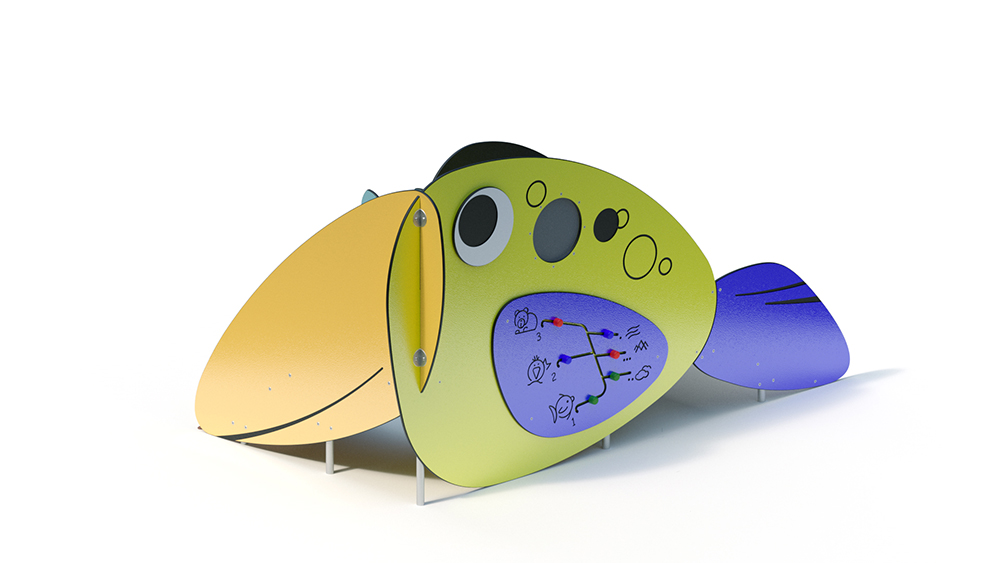

Mini zoo

Key Attributes

Age Group

1 - 6+

Area of Use

Public Playgrounds



Suitable for

Suitable for
children aged 1 – 6,
public playgrounds, etc.
Exercise / social activities

Techincal Specifications

Lifting Device


Total Length

2.70 m

Total Width

1.60 m

Total Height

1.50 m

Minimum Space Length

5.70 m

Minimum Space Width

4.60 m

Minimum Space Height

1.50 m

Heaviest Single Piece

40.00 kg

(Total) Weight

210.00 kg

Free Height of Fall

0.58 m

Platform Heights

0.58 m


Foundation 1

5 pieces - 1.00 x 0.20 x 0.10 m volume: 0.02 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 6 hours + hoist (without foundation creation)

Technical Data

Technical data
Floor area: 1.60 x 2.70 m
Minimum space: 4.60 x 5.70 m (22 m²)
Total height: 1.50 m
Platform height: 0.58 m
Weight: 40 kg, heaviest individual part
210 kg in total

– supports made of stainless steel tube Ø33,7 x 2 mm
– landing floor, ramp, steps and side plates of colored, highly weather-resistant HPL laminate panels 10/13 mm
– sliding surface of stainless steel sheet 3 mm
– Eye and flower from highly weather-resistant HPL plate 20mm (White ), Fastening with bearing washer made of POM
– wing made of highly weather-resistant HPL laminate board 13 mm (royal blue), with sliding stones made of stainless steel (red, yellow, green)
– viewing window made of polycarbonate
– sliding balls tube Ø 38 x 2 mm made of stainless steel with 3 rings Polypropylene (red, green and blue)

Optionally, we offer you various interchangeable game functions for an extra charge and to increase the play value: cockpit, gear wheels, mirrors, sliding game, worm wheel or effect disc.

Please note that the K&K Minizoo is delivered prepared for the inclusion of one of the above game functions. In the case of an order, please clarify which game functions the K&K Minizoo should be equipped with.

Metal components: stainless steel.

Foundations (on-site)
Tamp down
(for light soils: 5 pieces 1.00 x 0.20 x 0.10 m = 0.02 m³)
Amount of concrete: 0.1 m³

Free fall height
0.58 m
