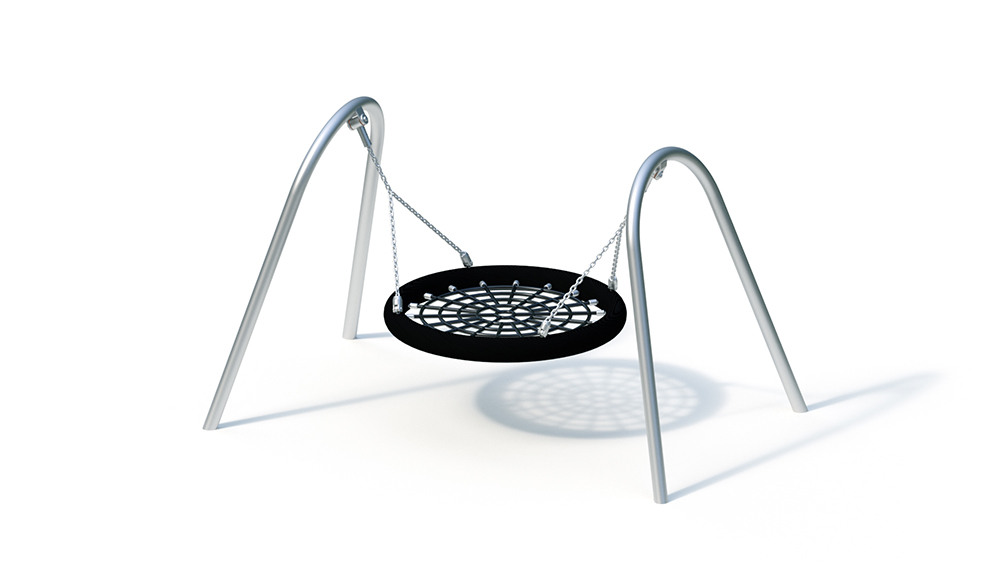

Mini nest
Key Attributes
Age Group
2+
Area of Use
Public Playgrounds
Activity
Physical
Suitable for
Suitable for
children from 2 years of age,
public playgrounds etc.,
exercise activities
Techincal Specifications
Lifting Device
-
Total Length
2.21 m
Total Width
1.39 m
Total Height
1.35 m
Minimum Space Length
5.20 m
Minimum Space Width
4.38 m
Minimum Space Height
1.35 m
Heaviest Single Piece
26.00 kg
(Total) Weight
70.00 kg
Free Height of Fall
0.53 m
Platform Heights
-
Foundations
Foundation 1
4 pieces - 0.60 x 0.60 x 0.60 m volume: 0.22 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 1 hour each (without foundation creation)
Technical Data
Technical data
Equipment room: 2.21 x 1.39 x 1.35 m
Minimum space: 5.20 x 4.38 x 1.35 m
Impact area: 20 m²
Total height: 1.35 m
Free fall height: 0.53 m
Weight: 26 kg heaviest single part
70 kg in total
– tubular frame made of stainless steel tube Ø 60 x 2.9 mm
– swing suspension made of stainless steel with slide bearings, including swivel
– swing basket with all-round damping made of PE rope sheathing, basket ring Ø 1.00 m made of hot-dip galvanized steel, net made of Usacord, 4-shafted, PES with steel core
– all connecting parts made of stainless steel V2A
Foundations (on site)
4 pcs. 0.60 x 0.60 x 0.47 m
Amount of concrete: 0.68 m²
