Mikado Tower “Obersimten”

Mikado Tower “Obersimten”

Mikado Tower – Obersimten
Order Number: 1.0010-EM
Stainless Steel Posts
Wood: Robinia

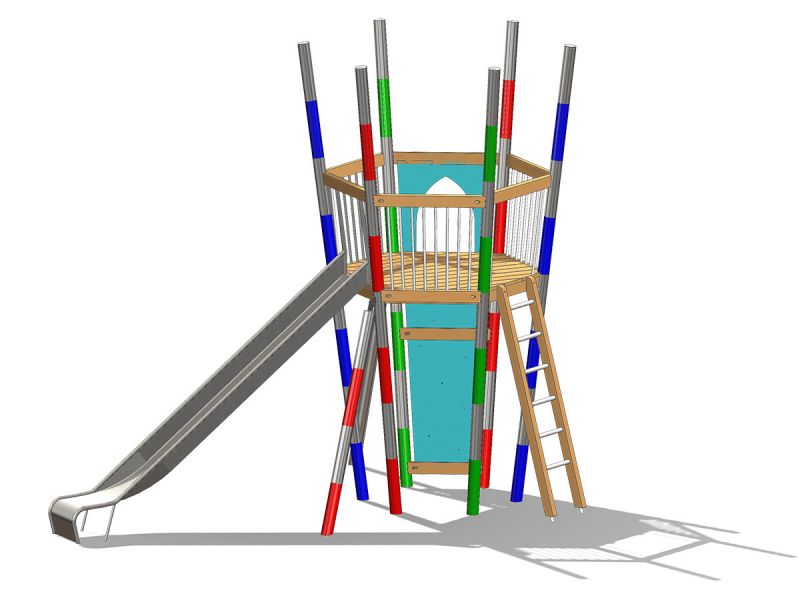

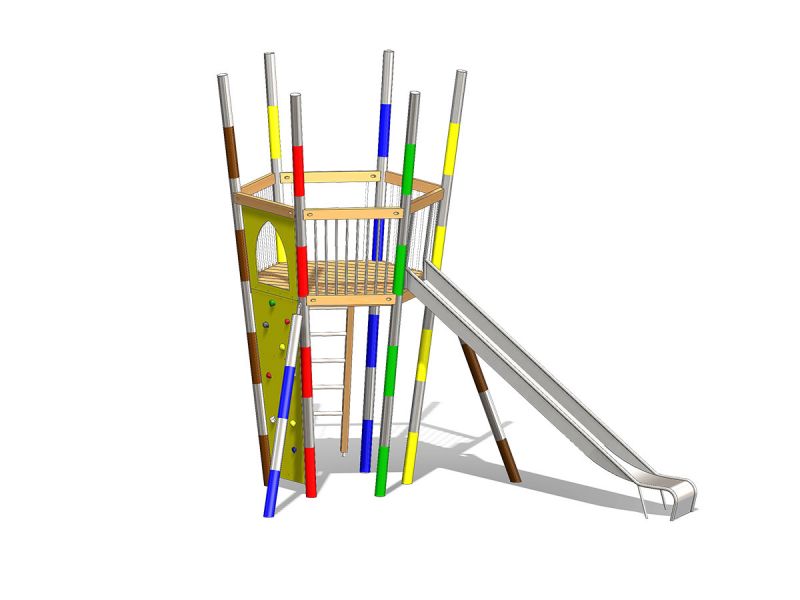

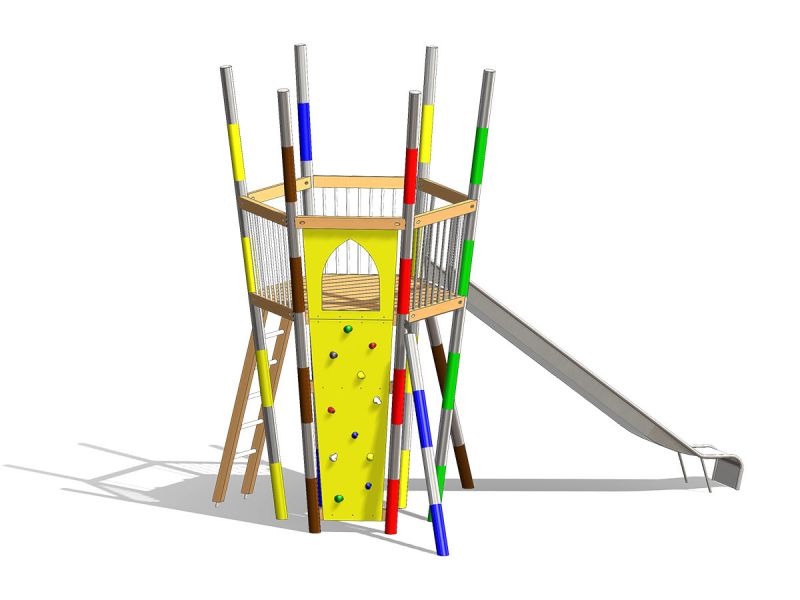

– One hexagon tower featuring six inclined stainless steel posts, painted in segments with a Mikado design.
– One spire roof made of HPL (optional standard color assortment) with a stainless steel cap.
– One hexagon tower with a diameter of 180cm and a height of 200cm.
– One climbing wall made of HPL with a step-through frame and synthetic resin climbing grips.
– One stairway with balustrades on both sides.
– One Spiel-Bau slide made of stainless steel in a box-shaped design.
– One ladder with stainless steel bars.
– Several balustrades and handrails.

Proudly made in Germany!
All support posts are made of stainless steel tubes with a diameter of 101.6mm, painted in segments with a Mikado design.
All wooden parts are made of Robinia, planed and chamfered. They are left untreated.
The visible ends of the posts are securely welded to a stainless steel cap.
All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection regulations.
The platform and railing are connected to the support posts using stainless steel press-in threaded sleeves.
The platform is fixed in place using concentrically incorporated stainless steel brackets.
The connection point between the net/rope and the support posts is made through a specifically formed stainless steel fork and a tensible stainless steel chain.
All connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are a normal occurrence in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not warrant a warranty claim. (Please refer to the supplementary sheet from the German Institute for Standardization EN 1176, Note on 4.2.7.6)
