1.0001.1-EM

Mikado Tower “Herne”

Mikado Tower – Herne
Order Number: 1.0001.1-EM
Posts constructed from stainless steel
Wood: Robinia

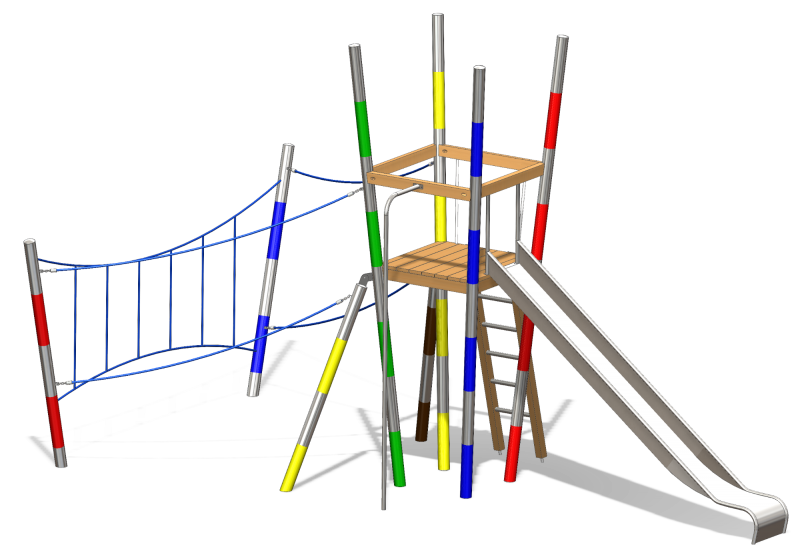

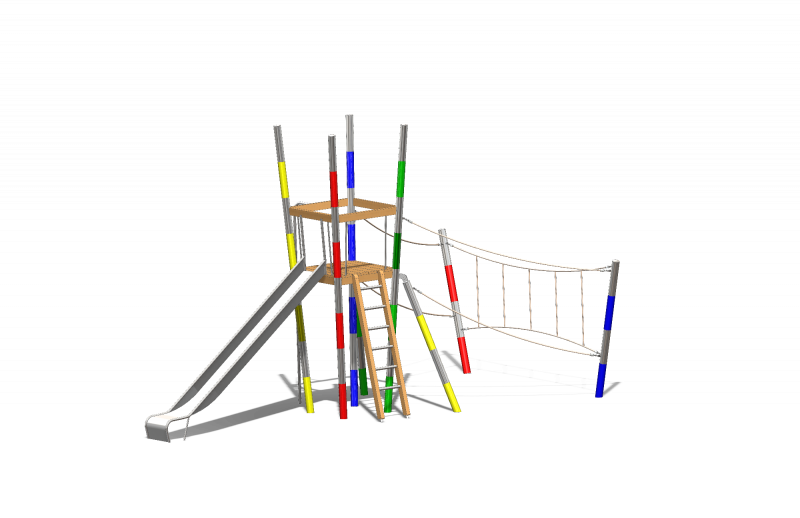

– One tetragonal tower measuring 90x90cm, featuring four radial inclined posts made of stainless steel, segmentally lacquered in a Mikado design.
– Two pressure support posts made of stainless steel, segmentally lacquered in a Mikado design.
– One ladder element consisting of wall bars.
– Stainless steel slide with a box-shaped design, approximately 50cm wide and 200cm in height.
– One climbing pole made of stainless steel.
– One stainless steel handle.
– Spiel-Bau slide, box-shaped and made of stainless steel.
– Two safety ropes made of Hercules rope, measuring 300cm in height.
– Rope harp made of Hercules rope, with a length of up to 300cm.
– Several balustrades and handrails.

Proudly made in Germany!
All support posts are constructed from stainless steel tubes with a diameter of 101.6mm, segmentally lacquered in the Mikado design. The visible ends of the posts are securely welded to a stainless steel cap.
All stainless steel surfaces are treated with glass marbles in accordance with environmental protection regulations.
All wooden parts are made of Robinia, planed and chamfered. They remain untreated.
The connection between the platform/railing and support posts is achieved through stainless steel press-in threaded sleeves.
The platform is fixed using concentrically incorporated stainless steel brackets.
The connection point between the net/rope and support posts is made through specifically formed stainless steel forks and tensile stainless steel chains.
The nets are made of Hercules rope, and all connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are a normal occurrence in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not warrant a warranty claim. (Please refer to the supplementary sheet from the German Institute for Standardization EN 1176, Note on 4.2.7.6)

Spiel-Bau GmbH
Alte Weinberge 21
14776 Brandenburg an der Havel
Phone: 03381 26140
Fax: 03381 261418

User Age4-12
Download Product Sheet

Technical Information

Area

708 x 1001 cm

Fall Height Group

200 cm

Materials

Material

stainless steel, wood
