Mikado Tower “Bretten”

Mikado Tower – Bretten
Order Number: 1.0026-EM
Stainless Steel Posts
Wood: Robinia

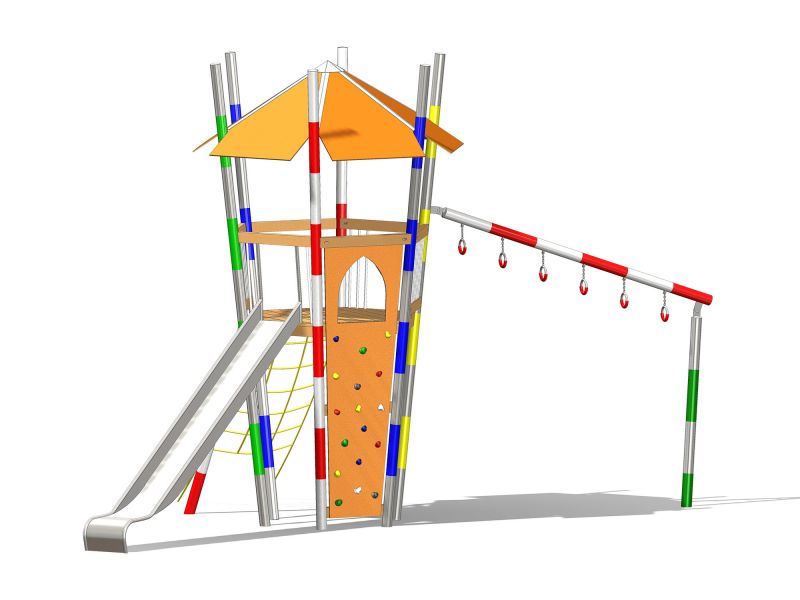

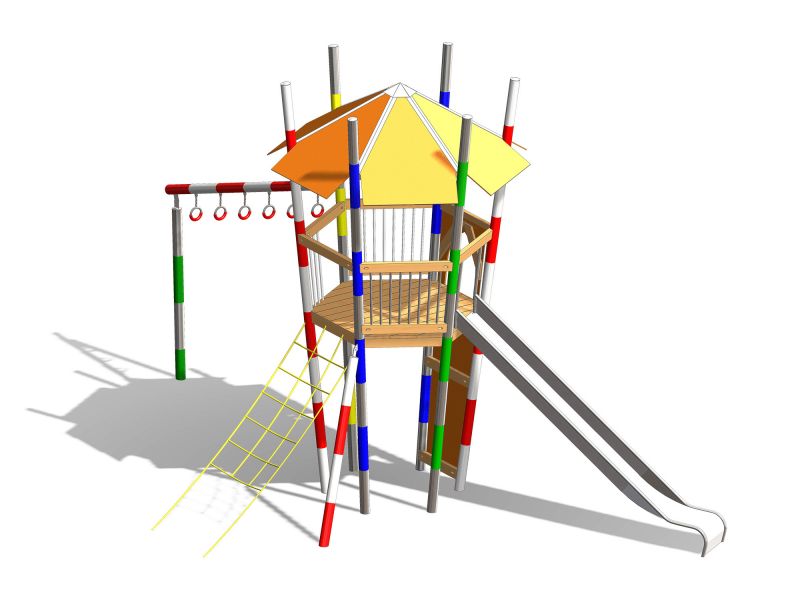

– One hexagon tower featuring inclined stainless steel posts, lacquered in a segmental design resembling Mikado.
– One HPL roof (optional standard color assortment).
– One hexagon platform, measuring 200cm in height.
– One pressure support, lacquered in a segmental design resembling Mikado.
– One inclined climbing net made of Hercules rope.
– One box-shaped slide made of stainless steel.
– One climbing wall with a step-through frame and climbing grips made of synthetic resin.
– One beam with Roman rings.
– Several balustrades and railings.

Proudly Made in Germany!
All support posts are made of stainless steel tubes with a diameter of 101.6mm. The visible ends of the posts are conclusively welded to stainless steel caps.
All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection regulations.
The connection between the platform/railing and support posts is achieved through stainless steel press-in threaded sleeves.
The platform is fixed using concentrically incorporated stainless steel brackets.
All wooden parts are made of Robinia, planed and chamfered. They remain untreated.
The connection point between the net/rope and support posts is made using specifically formed stainless steel forks and tensile stainless steel chains.
The nets are made of Hercules rope, and all connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim. (Please refer to the supplementary sheet from the German Institute for Standardization EN 1176, Note on

Spiel-Bau GmbH
Alte Weinberge 21
14776 Brandenburg an der Havel
Phone: 03381 26140
Fax: 03381 261418

User Age6-12
Download Product Sheet

Technical Information


1112 x 776 cm

Fall Height Group

200 cm



stainless steel, wood, HPL
