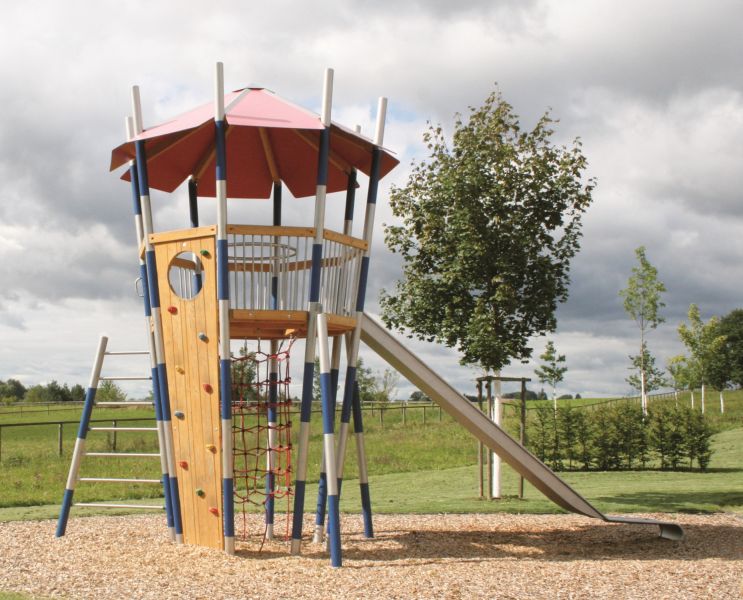

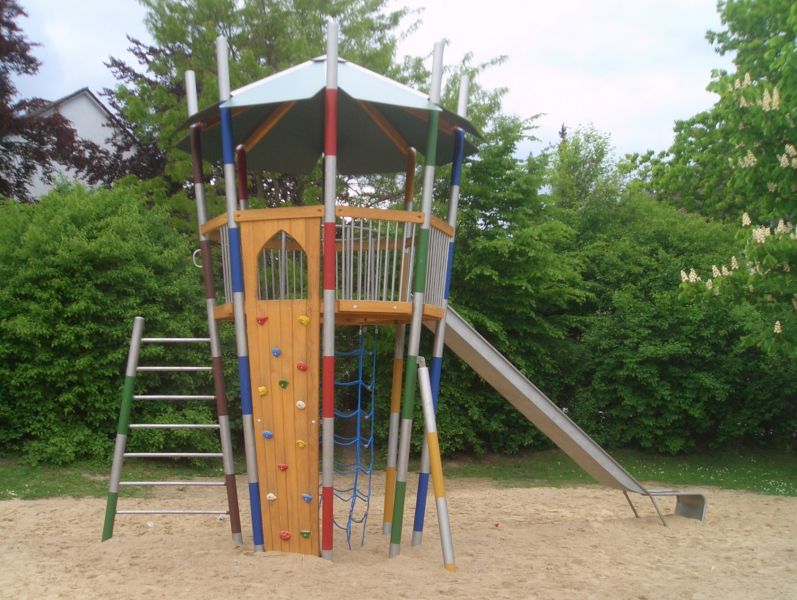

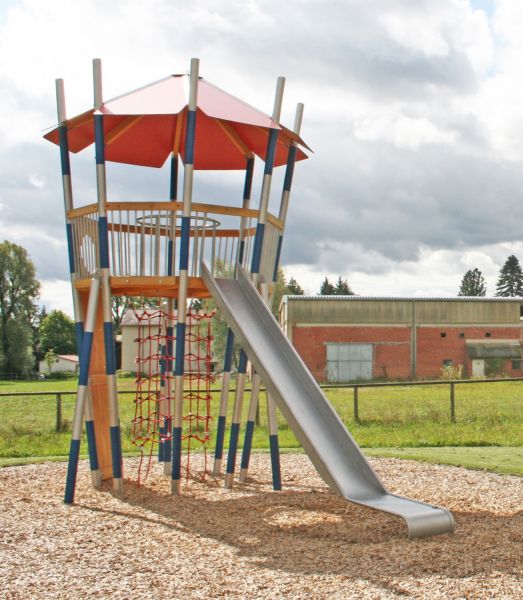

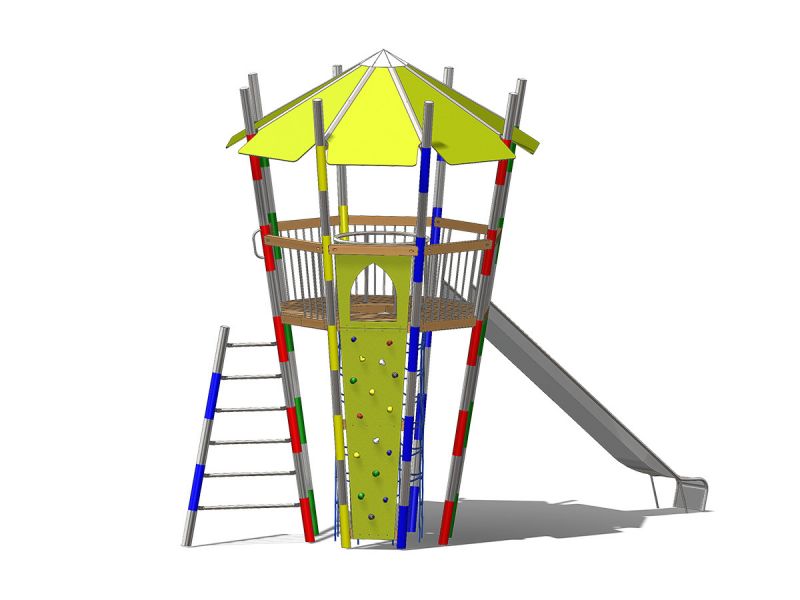

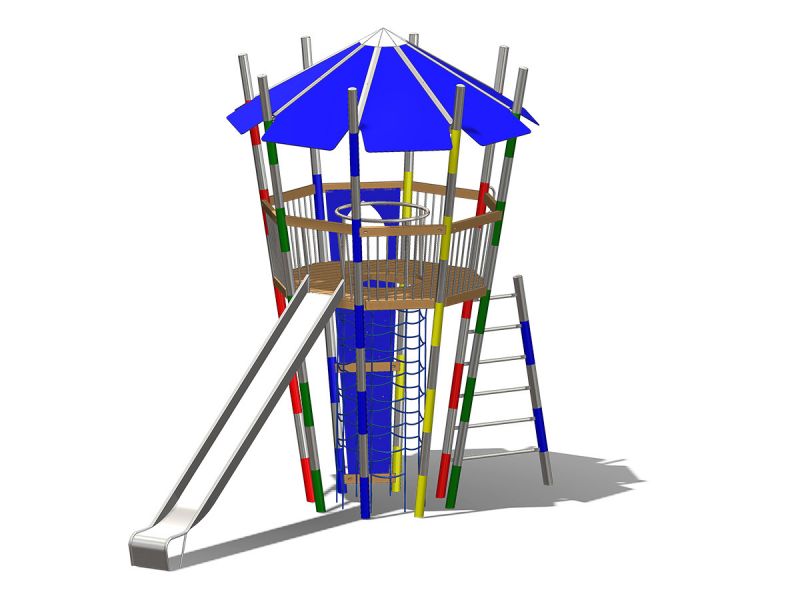

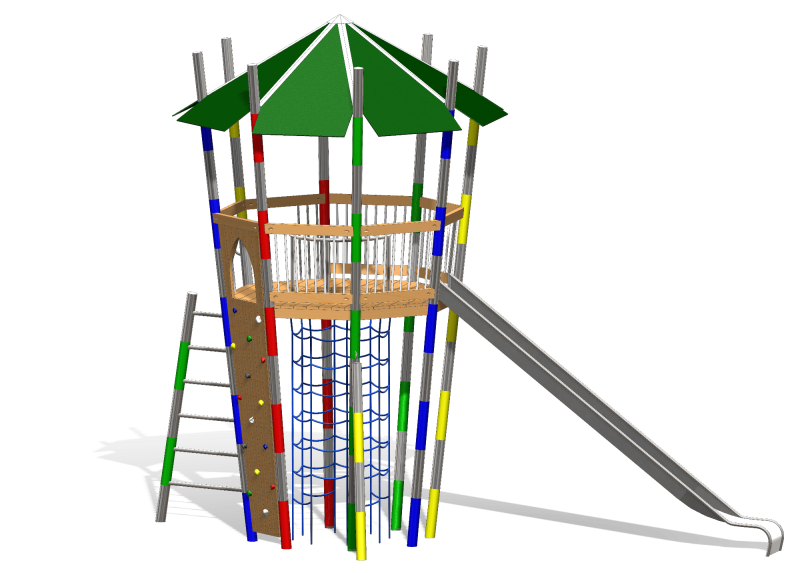

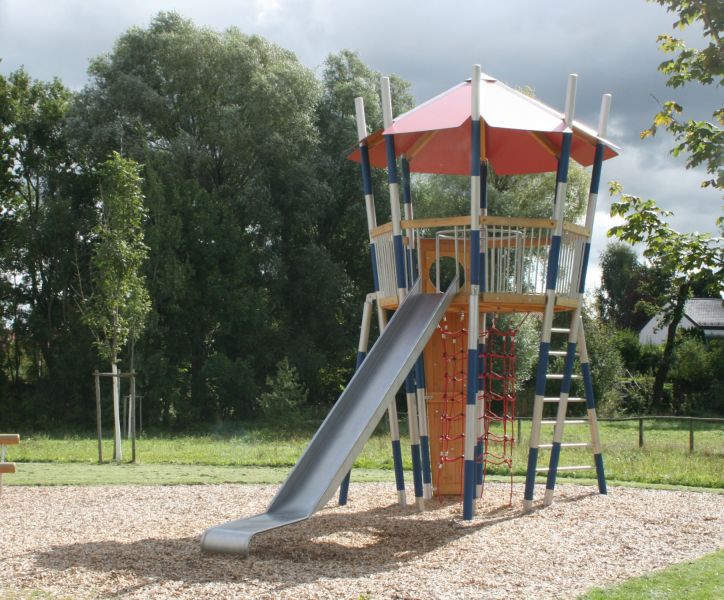

Mikado Tower “Brandenburg”

Mikado Tower – Brandenburg
Order Number: 1.0004-EM
Stainless Steel Posts
Wood: Robinia

– One octagon tower featuring eight inclined posts made of stainless steel, lacquered in a segmental Mikado design.
– One octagon platform with an opening, platform height (PH) of 250cm.
– One spire roof made of HPL (optional standard color assortment) with a stainless steel cap.
– One net tunnel made of Hercules rope.
– One fall protection element made of stainless steel.
– One climbing wall with a step-through frame and climbing grips made of synthetic resin.
– One ladder element made of wall bars.
– One stainless steel handle.
– One Spiel-Bau slide made of stainless steel, box-shaped, with a width of approximately 50cm and a PH of 250cm.
– Several balustrades and handrails.

Made in Germany!
All support posts are made of stainless steel tubes with a diameter of 101.6mm, lacquered in the Mikado design. The visible ends of the posts are conclusively welded to a stainless steel cap.
All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection rules.
All wooden parts are made of Robinia, planed and chamfered. All wooden parts are untreated.
The connection between the platform/railing and support posts is made through stainless steel press-in threaded sleeves.
The platform is fixed using concentrically incorporated stainless steel brackets.
The connection point between the net/rope and support posts is made through specifically formed stainless steel forks and tensible stainless steel chains.
The nets are made of Hercules rope. All connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim. (Refer to the supplementary sheet to the German Institute for Standardization EN 1176, Note on

Spiel-Bau GmbH
Alte Weinberge 21
14776 Brandenburg an der Havel
Phone: 03381 26140
Fax: 03381 261418

User Age6-12
Download Product Sheet

Technical Information


1043 x 661 cm

Fall Height Group

250 cm



stainless steel, wood, HPL
