Mikado Tower “Barcelona II”

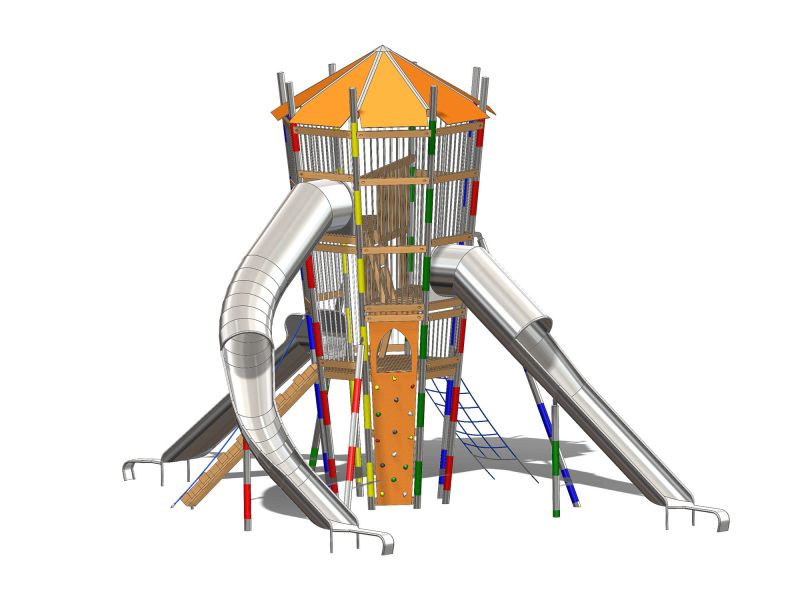

Mikado Tower – Barcelona II
Order Number: 1.000R-EM
Posts constructed from stainless steel
Wood: Robinia

– One octagon tower featuring eight inclined posts made of stainless steel, lacquered in a segmented Mikado design.
– One octagon platform with a platform height (PH) of 200cm.
– Two half octagon platforms with PH of 300cm and 400cm respectively.
– One spire roof made of HPL (optional standard color assortment) with a stainless steel cap.
– One climbing ramp with a 45° angle and a safety rope made of Hercules rope.
– One climbing wall with a step-through frame and climbing grips made of synthetic resin.
– One inclined climbing net made of Hercules rope.
– Two ladders with stainless steel bars.
– Three pressure support posts made of stainless steel.
– One fall protection element made of stainless steel.
– One U-shaped slide with a PH of 200cm, made of stainless steel.
– One tunnel slide with a PH of 300cm, made of stainless steel.
– One curved tunnel slide with a PH of 400cm, featuring a 90° curve to the right.

Proudly made in Germany!
All support posts are constructed from stainless steel tubes with a diameter of 101.6mm, lacquered in a segmented Mikado design. The visible ends of the posts are conclusively welded to a stainless steel cap. All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection regulations. The connection between the platform/railing and support posts is achieved through stainless steel press-in threaded sleeves. The platform is fixed using concentrically incorporated stainless steel brackets. The connection point between the net/rope and support posts is made through specifically formed stainless steel forks and tensible stainless steel chains. All wooden parts are made of Robinia, planed and chamfered, and remain untreated. The nets are made of Hercules rope, and all connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are a normal occurrence in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not warrant a warranty claim (refer to the supplementary sheet of the German Institute for Standardization EN 1176, Note on

Spiel-Bau GmbH
Alte Weinberge 21
14776 Brandenburg an der Havel
Phone: 03381 26140
Fax: 03381 261418

User Age6-12
Download Product Sheet

Technical Information


1112 x 779 cm

Fall Height Group

255 cm



stainless steel, wood
