“Mikado Slide Platform”

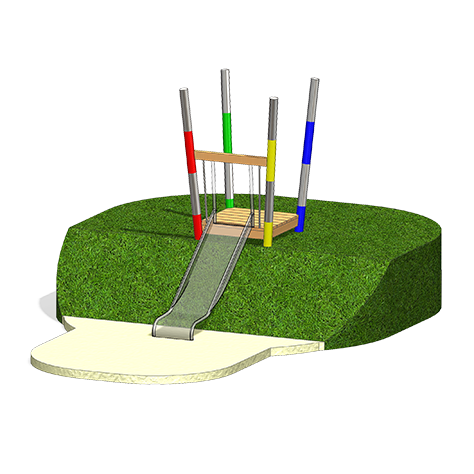

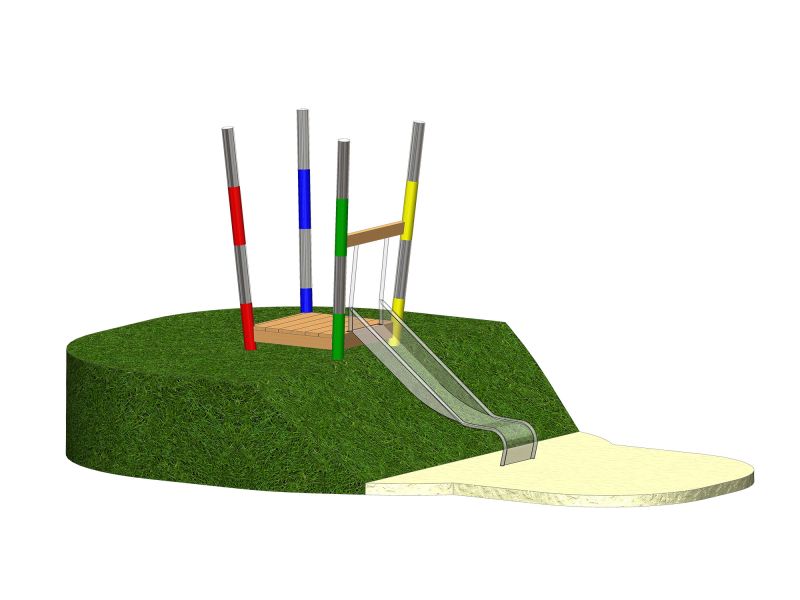

Mikado Slide Platform
Order Number: 1.0085-EM
Posts made of stainless steel
Wood: Robinia

– Four inclined posts made of stainless steel, lacquered in a segmental Mikado design
– One square-shaped platform, measuring 90x90cm
– One balustrade with an opening

Made in Germany!
All support posts are constructed from stainless steel tubes with a diameter of 101.6mm, lacquered in a Mikado design. The visible ends of the posts are securely welded to stainless steel caps. All stainless steel surfaces are treated with glass marbles in accordance with environmental protection regulations.
All wooden parts are made from Robinia, planed and chamfered. The wooden parts are left untreated.
The platform and railing are connected to the support posts using stainless steel press-in threaded sleeves. The platform is fixed in place using concentrically incorporated stainless steel brackets. All connecting parts are made of stainless steel or galvanized materials. Only self-locking nuts are used.

Drying cracks are a normal occurrence in all native hardwoods, even after proper storage and professional treatment. Therefore, drying cracks do not warrant a warranty claim (see supplementary sheet to the German Institute for Standardization EN 1176, Note on

Spiel-Bau GmbH
Alte Weinberge 21
14776 Brandenburg an der Havel
Phone: 03381 26140
Fax: 03381 261418

User Age2-12
Download Product Sheet

Technical Information


according to slide

Fall Height Group

150 cm



stainless steel, wood
