Mikado Construction – Weimarer Strasse II
Order Number: 1.0031-EM
Posts made of stainless steel
Wood: Robinia

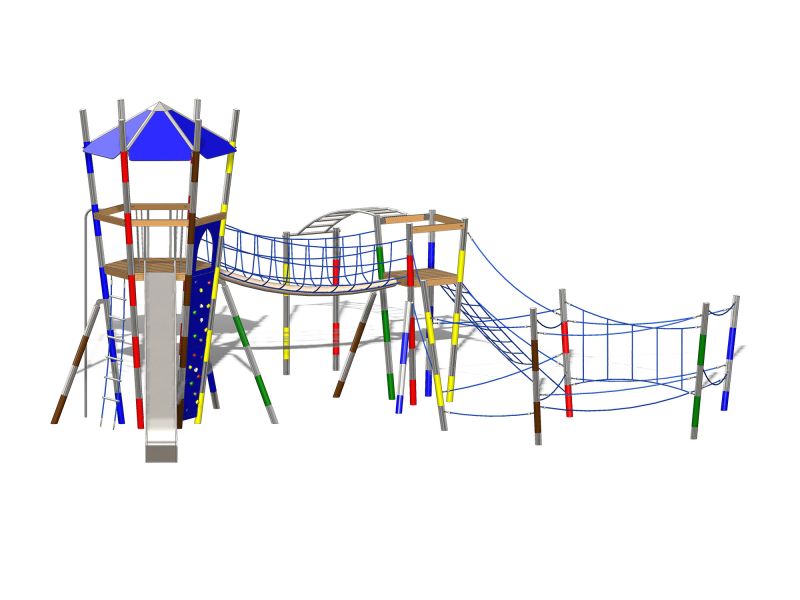

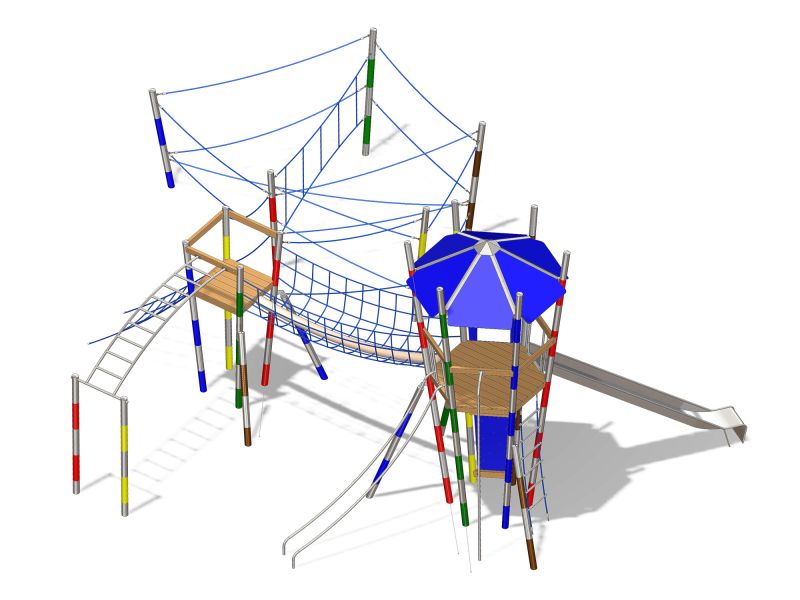

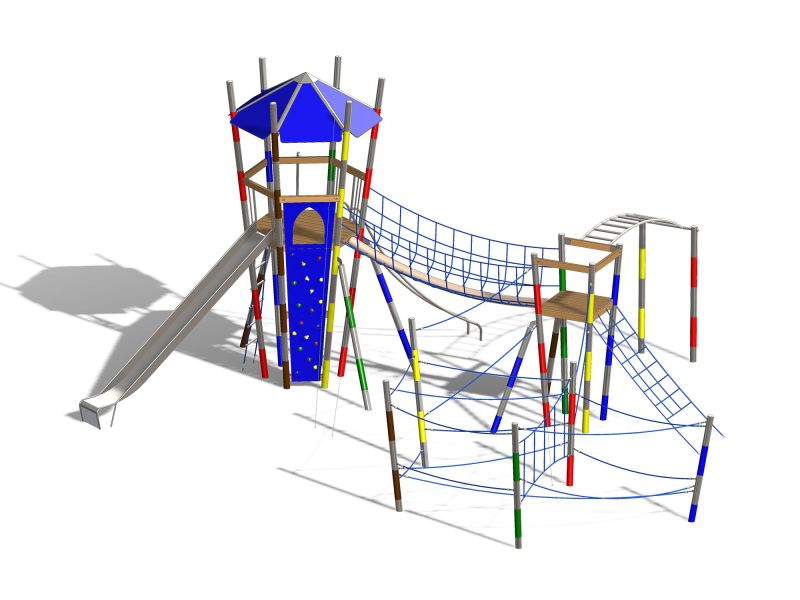

– One hexagon tower with a diameter of 180cm and a height of 250cm. It features six radial inclined posts made of stainless steel, which are segmentally lacquered in Mikado Design.
– One roof made of High-Pressure Laminate (HPL), available in various standard colors.
– One HPL climbing wall, also available in standard colors, with a step-through frame and climbing grips made of synthetic resin.
– One rope ladder made of Hercules rope, equipped with stainless steel bars.
– One Spiel-Bau slide, box-shaped and made of stainless steel, with a height of 250cm.
– One climbing pole made of stainless steel.
– Parallel slide poles made of stainless steel.
– Jungle bridge made of Hercules rope, featuring a central running rope made of PP. The length of the bridge is 350cm.
– Four pressure posts made of stainless steel.
– One tetragonal framework measuring 90x90cm and with a height of 200cm. It includes inclined posts made of stainless steel.
– Climbing arch with two stainless steel posts.
– Inclined climbing net made of Hercules rope.
– Several handrails and balustrades.
– One rope labyrinth.
– Five stainless steel posts.
– One harp made of Hercules rope.
– Several safety and climbing ropes made of Hercules rope.

All products are proudly made in Germany! The stainless steel posts have a diameter of 101.6mm and are segmentally lacquered in the Mikado design. The visible ends of the posts are welded conclusively to a stainless steel cap. To comply with environmental protection rules, all stainless steel surfaces are radiated with glass marbles. The connection between the platform/railing and support posts is achieved through stainless steel press-in threaded sleeves. The platform is securely fixed using concentrically incorporated stainless steel brackets. All wooden parts are made of Robinia, planed, and chamfered. They remain untreated. The connection point between the net/rope and support posts is established through specifically formed stainless steel forks and tensible stainless steel chains. The nets are made of Hercules rope, and all connecting parts are either stainless steel or galvanized. Only self-locking nuts are used.

Please note that drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim (refer to the supplementary sheet of the German Institute for Standardization EN 1176, Note on 4.2.7.6).
