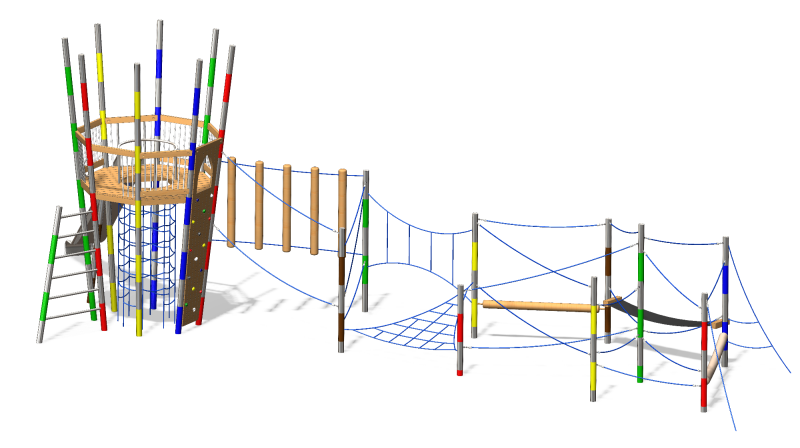

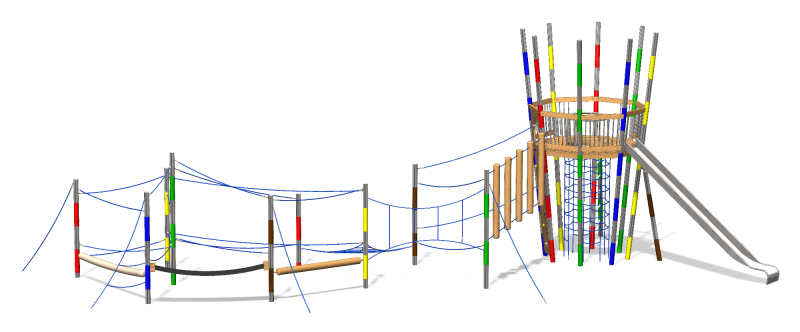

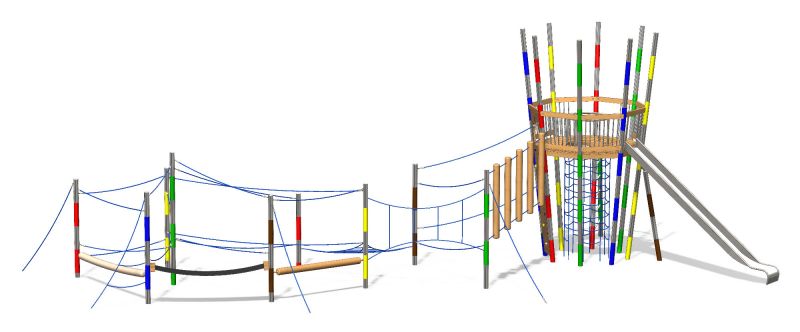

Mikado Construction “Stuttgart-Halle”

Mikado Construction “Stuttgart-Halle”

Mikado construction in Stuttgart-Halle
Order Number: 1.0023.2-EM
Posts made of stainless steel
Wood: Robinia

– One octagon tower featuring eight radial inclined posts made of stainless steel, segmentally lacquered in Mikado design.
– One pressure support, segmentally lacquered in Mikado design.
– One octagon tower with a height of 250cm.
– One fall protection element made of stainless steel.
– One net tunnel made of Hercules rope.
– One HPL climbing wall (optional color from the standard range), equipped with a step-through frame and climbing grips made of synthetic resin. It also includes a trapezoidal ladder with stainless steel and one hold grip, segmentally lacquered in Mikado design.
– One Spiel-Bau slide made of stainless steel, box-shaped, with a height of 250cm.
– Various balustrades and handrails.
– One wooden harp, approximately 250cm in length.
– One rope harp, approximately 250cm in length, made of Hercules rope.
– One horizontal triangle climbing net, approximately 250x250x250cm in size, made of Hercules rope.
– One turntable log, approximately 230cm in length.
– One flying belt strap, approximately 250cm in length.
– One rope made of Polypropylene (PP), approximately 300cm in length.
– One triangle rope ladder made of Hercules rope.
– Various balancing and climbing ropes made of Hercules rope.

Made in Germany!
All support posts are made of stainless steel tubes with a diameter of 101.6mm, segmentally lacquered in Mikado design.
The visible ends of the posts are conclusively welded to a stainless steel cap.
All wooden parts are made of Robinia, planed and chamfered. They are left untreated.
All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection rules.
The connection between the platform/railing and support posts is achieved through stainless steel press-in threaded sleeves.
The platform is fixed using concentrically incorporated stainless steel brackets.
The nets are made of Hercules rope.
All connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim. (Refer to the supplementary sheet of the German Institute for Standardization EN 1176, Note on 4.2.7.6)
