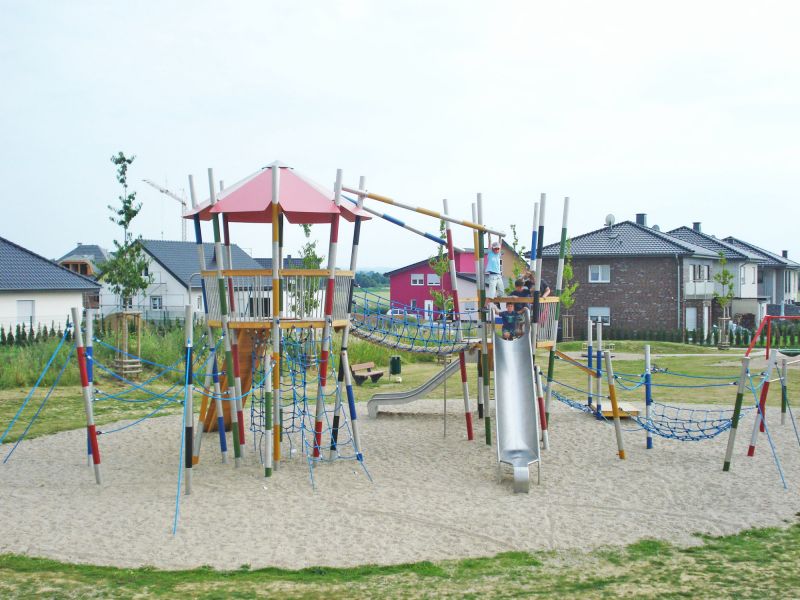

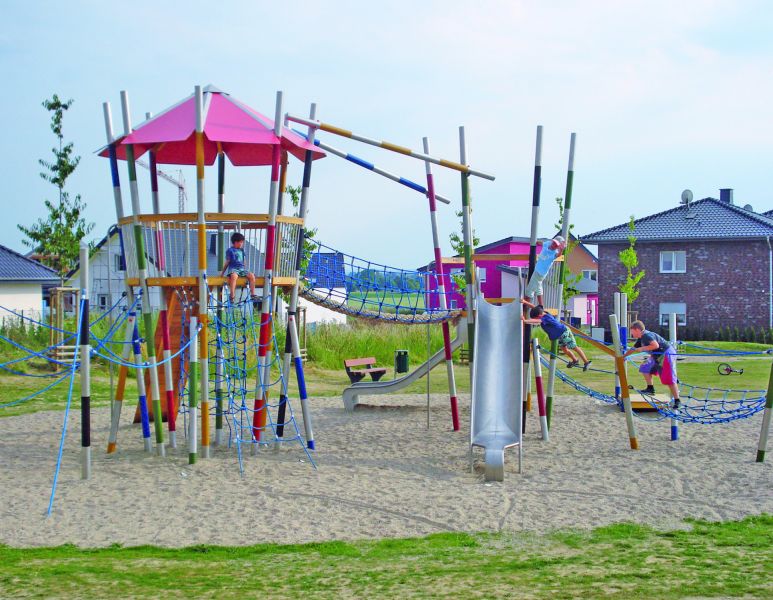

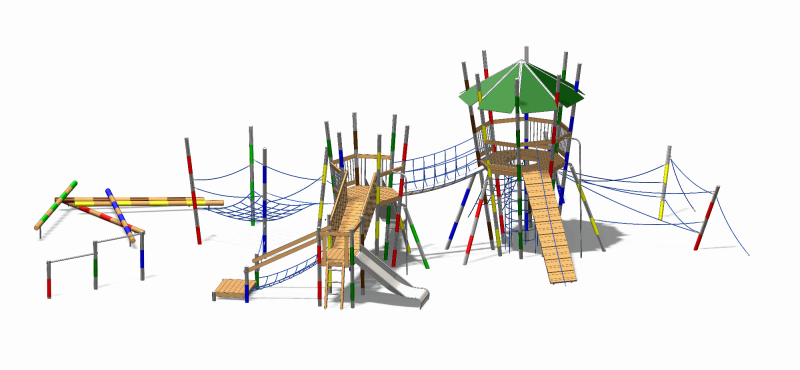

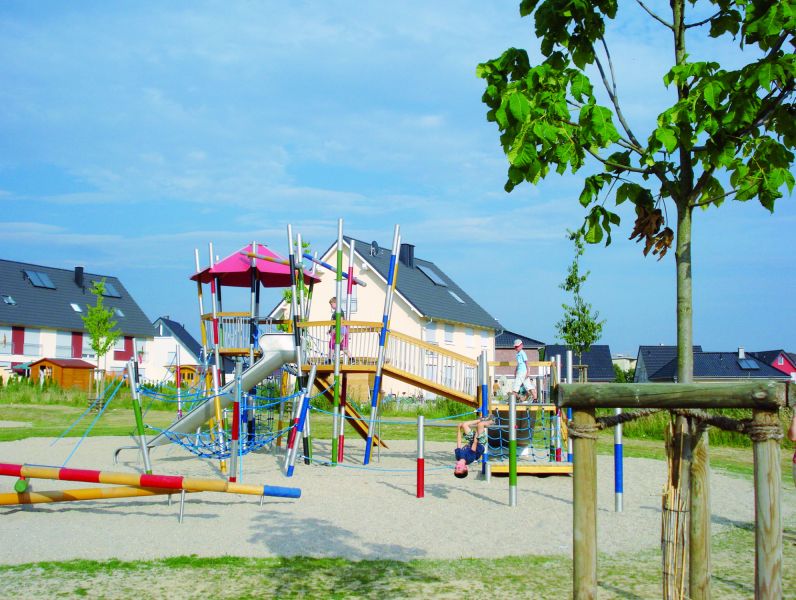

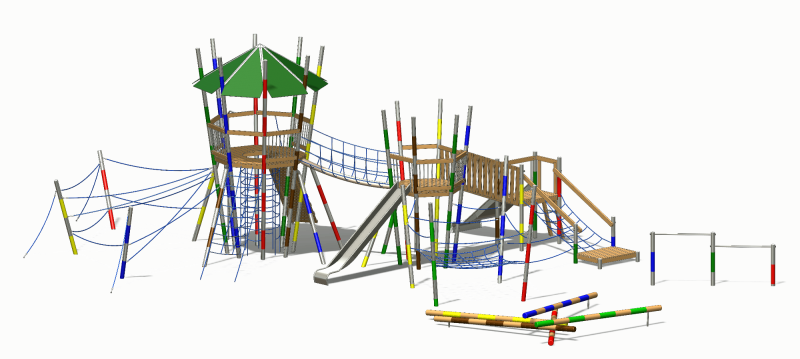

Mikado Construction – Lippstadt
Order Number: 1.0029-EM
Stainless Steel Posts
Wood: Robinia

– One octagonal stage with radially outwardly inclined posts, segmentally lacquered in Mikado design.
– One octagon platform with an opening, platform height (PH) of 250cm.
– One roof made of HPL (optional standard color assortment).
– Four pressure supports made of stainless steel.
– One net tunnel made of Hercules rope.
– One fall protection element made of stainless steel.
– One climbing ramp with a 45° angle and climbing aid made of Hercules rope.
– One ladder element made of wall bars.
– One inclined climbing net made of Hercules rope.
– One jungle bridge made of Hercules rope, length up to 300cm, with a running rope made of Hercules rope, ø15cm, made of PP.
– One rope labyrinth consisting of:
– Six posts made of stainless steel, segmentally lacquered in Mikado design.
– Several climbing ropes made of Hercules rope.
– One hexagon tower with six radial inclined posts made of stainless steel, segmentally lacquered in Mikado design.
– One hexagon platform, platform height (PH) of 200cm.
– Two pressure supports made of stainless steel.
– One ladder element made of wall bars.
– One Spiel-Bau slide, box-shaped, made of stainless steel, PH 200.
– One solid bridge with balustrade on both sides.
– One tetragonal framework, 90x127cm, PH 125cm, segmentally lacquered in Mikado design.
– One Spiel-Bau slide, box-shaped, made of stainless steel, PH 50.
– One ladder element made of wall bars.
– Net bridge with handrails on both sides and path made of Hercules rope, length 200cm.
– One tetragonal framework, 90x127cm, PH 25cm, segmentally lacquered in Mikado design.
– One net platform, 200x200cm, with four safety ropes made of Hercules rope.
– Two ropes made of Hercules rope, between the hexagon tower and net platform.
– One rope made of Hercules rope, attached to the hexagon platform.
– One heap of logs consisting of:
– Five robinia logs, segmentally lacquered in Mikado design.
– Horizontal Bar, double, consisting of:
– Three posts made of stainless steel, segmentally lacquered in Mikado design.
– Two horizontal bars, height 100/130cm, made of stainless steel.
– Several balustrades and railings.

Made in Germany!
All support posts made of stainless steel tube ø101.6mm, segmentally lacquered in the design of Mikado.
All wooden parts made of Robinia, planed and chamfered. All wooden parts are untreated.
Visible ends of the posts are conclusively welded to a stainless steel cap.
All stainless steel surfaces are radiated with glass marbles according to environmental protection rules.
Connection between platform/railing and support posts through stainless steel press-in threaded sleeves.
Platform fixed by using concentrically incorporated stainless steel brackets.
All wooden parts made of Robinia planed and chamfered. All wooden parts are untreated. Mikado logs glazed biodegradable.
Connection point net/rope with support posts through specifically formed stainless steel fork and tensible stainless steel chain.
Nets made of Hercules rope. All connecting parts made of stainless steel or galvanized. Use of self-locking nuts only.

Drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim. (Refer to supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6)
