Mikado Construction “Celsiusweg”

Mikado Construction “Celsiusweg”

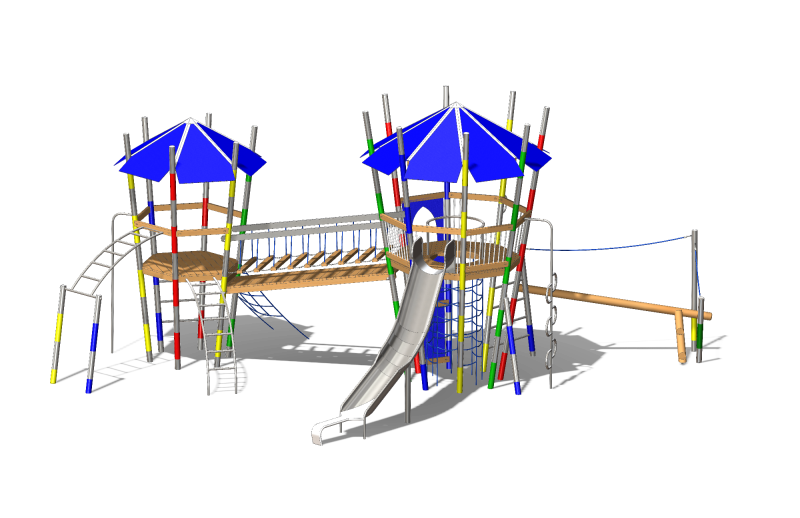

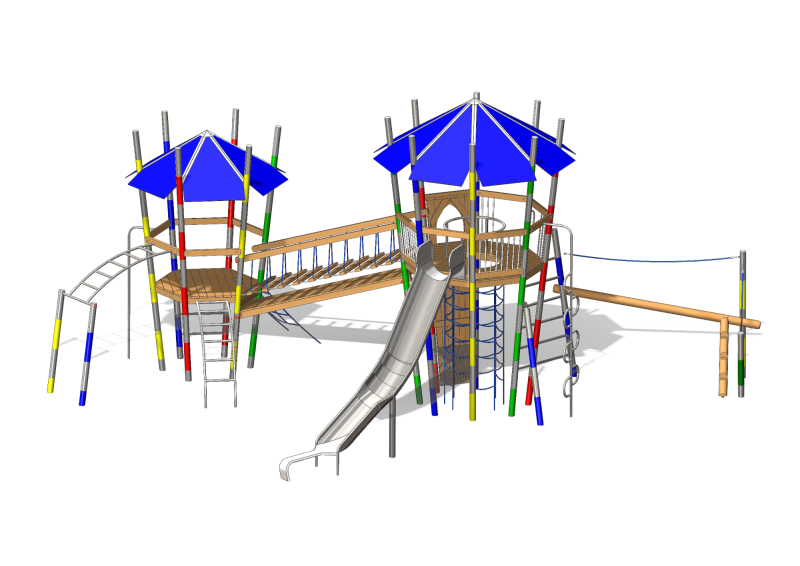

Mikado Construction – Celsiusweg
Order Number: 1.0053.2-EM
Stainless Steel Posts
Wood: Robinia

– One octagon tower featuring eight radial, inclined stainless steel posts, segmentally lacquered in Mikado Design.
– One octagon platform with an opening, platform height (PH) of 250cm.
– One spire roof made of HPL (optional standard color assortment) with a stainless steel cover strip and cap.
– Two pressure support posts made of stainless steel.
– One net tunnel made of Hercules rope.
– One fall protection element made of stainless steel.
– One HPL climbing wall (optional standard color assortment) with a step-through frame and climbing grips made of synthetic resin.
– One ladder with a handrail.
– One u-shaped slide made of stainless steel with a right turn.
– One balance bar with a safety rope made of Hercules rope, approximately 350cm in length.
– One chicken ladder with a safety rope made of Hercules rope attached to one post.
– A wobbly catwalk with handrails on both sides, approximately 300cm in length.
– One hexagon tower with six radial inclined stainless steel posts, segmentally lacquered in Mikado Design.
– One spire roof made of HPL (optional standard color assortment) with a stainless steel cover strip and cap.
– One hexagon platform with a diameter of 180cm and a platform height (PH) of 200cm.
– One climbing net made of Hercules rope.
– One climbing pole made of stainless steel.
– One climbing arch made of stainless steel, approximately 200cm in length.
– One arch ladder.
– Several handrails and balustrades.

Made in Germany!
All support posts are made of stainless steel tubes with a diameter of 101.6mm, segmentally lacquered in the Mikado design. The visible ends of the posts are conclusively welded to a stainless steel cap. All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection rules. The connection between the platform/railing and support posts is made through stainless steel press-in threaded sleeves. The platform is fixed using concentrically incorporated stainless steel brackets. All wooden parts are made of Robinia, planed and chamfered. They remain untreated. The connection point between the net/rope and support posts is achieved through specifically formed stainless steel forks and tensible stainless steel chains. The nets are made of Hercules rope, and all connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim (see supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6).
