0-53118-700

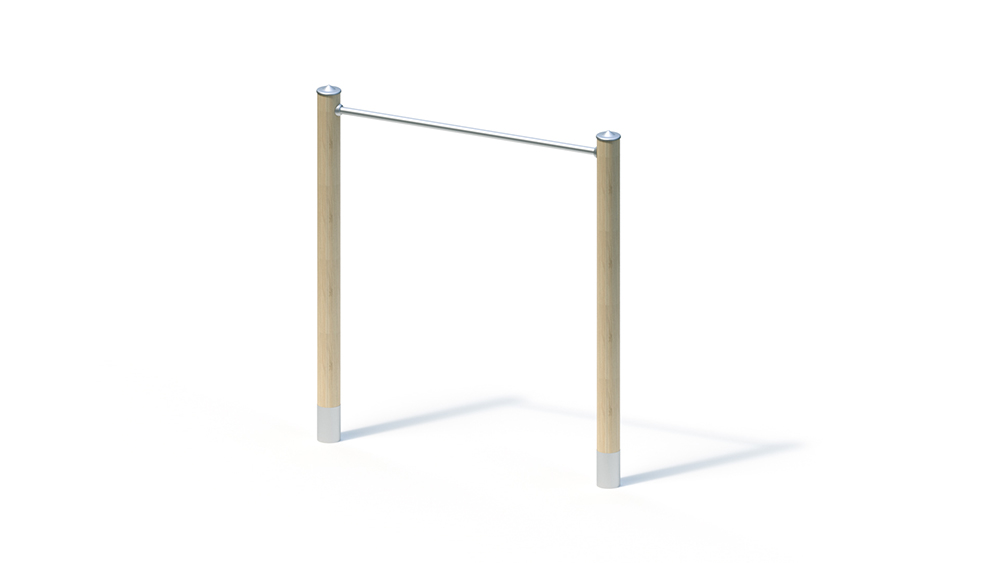

Maxireck (1.80)

Key Attributes

Age Group

8+

Area of Use

Public Playgrounds

Activity

Sport

Suitable for

Suitable for
children from 8 years,
public playgrounds etc.,
sporting activities

Techincal Specifications

Lifting Device

-

Total Length

1.75 m

Total Width

-

Total Height

1.95 m

Minimum Space Length

5.15 m

Minimum Space Width

3.55 m

Minimum Space Height

1.95 m

Heaviest Single Piece

25.00 kg

(Total) Weight

60.00 kg

Free Height of Fall

1.82 m

Platform Heights

-

Foundations

Foundation 1

2 pieces - 0.60 x 0.50 x 0.50 m volume: 0.15 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

1 person

Assembly Time

1 h

Assembly Details

Assembly time 1 fitter every 0.5 hours (without foundation creation)

Technical Data

Technical data
Length: 1.75 m
Minimum space: 5.15 x 3.55 m (16 m²)
Total height: 1.95 m
Height of bar: 1.80 m
Weight: 25 kg Heaviest individual part
60 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Attachment parts
– horizontal bar made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, twist-proof

Metal components: stainless steel 1.4301
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment.
The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
2 pcs. 0.50 x 0.60 x 0.50 m
amount of concrete: 0.30 m³

Free fall height
1.82 m
