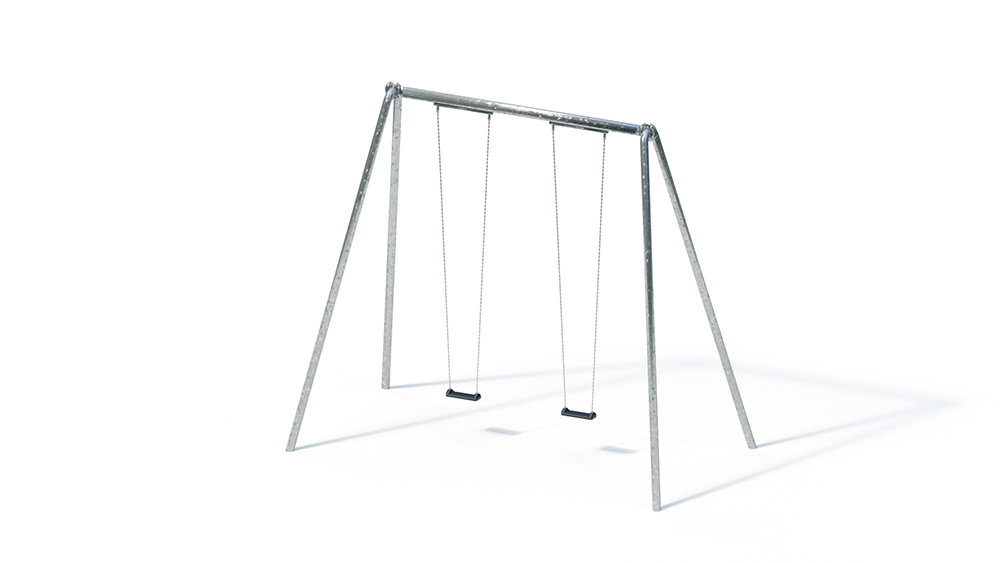

Maxi double swing (4.50)

Key Attributes

Age Group


Area of Use

public playgrounds



Suitable for

Suitable for
children from 8 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device


Total Length

5.35 m

Total Width

2.85 m

Total Height

2.71 m

Minimum Space Length

11.30 m

Minimum Space Width

5.35 m

Minimum Space Height

4.72 m

Heaviest Single Piece

110.00 kg

(Total) Weight

535.00 kg

Free Height of Fall

2.60 m

Platform Heights



Foundation 1

4 pieces - 0.80 x 0.80 x 0.60 m volume: 0.39 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 3 hours, plus lifting gear (without creating the foundation)

Technical Data

Technical data
Floor area: 2.85 x 5.35 m
Minimum space: 5.35 x 11.30 m (61 m²)
Swing height: 4.50 m
Weight: 110 kg, heaviest individual part
535 kg in total

– rocking supports made of hot-dip galvanized steel, Ø 108 mm, wall thickness 6.3 mm; Connection to swing carrier via dowel plates
– swing carrier made of hot-dip galvanized steel, Ø 139.7 mm, wall thickness 6.3 mm;
– Swing axle made of stainless steel, consisting of internal bearing axle Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and slide bearings
– Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated, ball-bearing swivel to prevent the chains from knotting
– Safety
swing seat made of rubber with dimensionally stable aluminum insert and seamless single-point suspension – on the swing axis and on the swing seat: chain attachment with clamp adapter made of stainless steel

Foundations (on site)
4 pcs. 0.80 x 0.80 x 0.60 m
Amount of concrete: 1.54 m³

Free fall height
2.60 m
