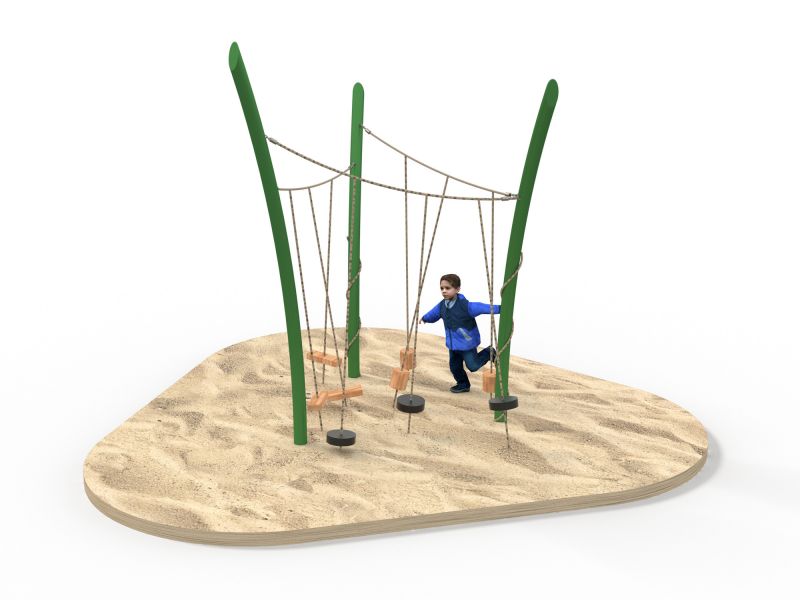

Liana Path Small
Order Number: 7S-190924-91-GA
Stainless Steel Posts
Robinia Wood

– Three curved support posts made of strong-walled stainless steel, with a bevel cut for the final shaping. Two of them are wrapped with Hercules rope.
– Three horizontal ropes made of Hercules rope.
– Three balance cylinders made of robinia.
– Three balance steps made of robinia.
– Three climbing seats.

Made in Germany!
All support posts are made of stainless steel tubes with a diameter of 101.6mm. The visible ends of the posts are conclusively welded to a stainless steel cap.
All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection rules.
All wooden parts are made of planed and chamfered robinia. They are left untreated.
The connection between the platform/railing and the support posts is made through stainless steel press-in threaded sleeves.
The platform is fixed using concentrically incorporated stainless steel brackets.
The connection point between the net/rope and the support posts is made through a specifically formed stainless steel fork and a tensible stainless steel chain.
The nets are made of Hercules rope. All connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim. (Refer to the supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6)
