0-57018-001

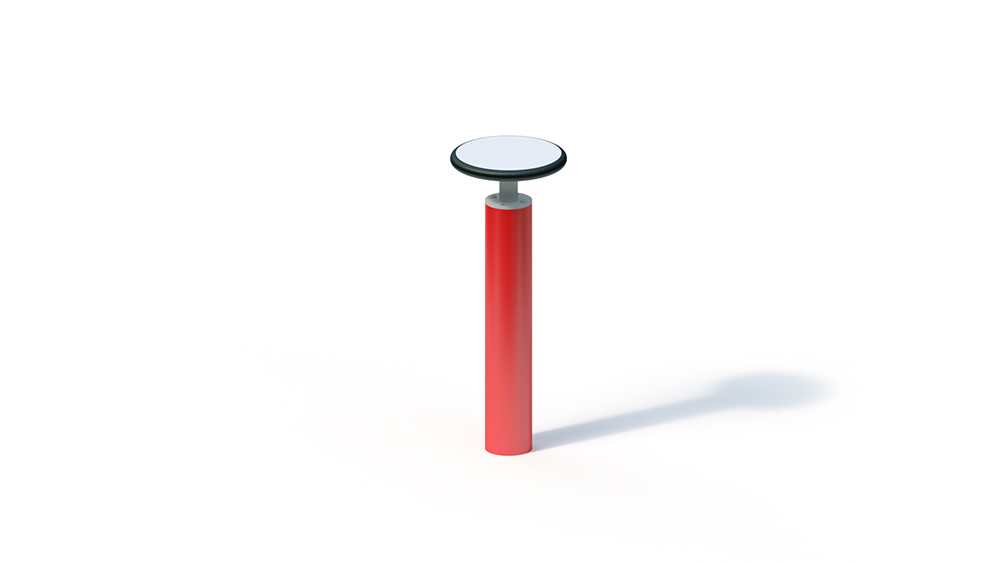

Leapfrog trainer (0.80)
Key Attributes
Age Group
18+
Area of Use
Trim Paths
Activity
Sport
Suitable for
Suitable for
adult
trim trails etc.
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
-
Total Width
-
Total Height
0.80 m
Minimum Space Length
-
Minimum Space Width
3.30 m
Minimum Space Height
-
Heaviest Single Piece
-
(Total) Weight
21.00 kg
Free Height of Fall
0.80 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
The assembly time is delivered pre-assembled in one piece
Technical Data
Technical data
Height: 0.80 m
Minimum space: (9m²)
Weight: 21 kg in total
Support post: steel tube Ø 121 x 4 mm, hot-dip galvanized, powder-coated. Post color optionally: red / RAL 2002, blue / RAL 5015, white / RAL 9010 and black / RAL 9005.
Plate: high pressure laminate 30 mm
Metal
components : Stainless steel station sign (see item no. 0-57402-000) can be supplied at an extra charge .
Foundation (on site)
1 pc. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.10 m³
Free fall height
0.80 m
