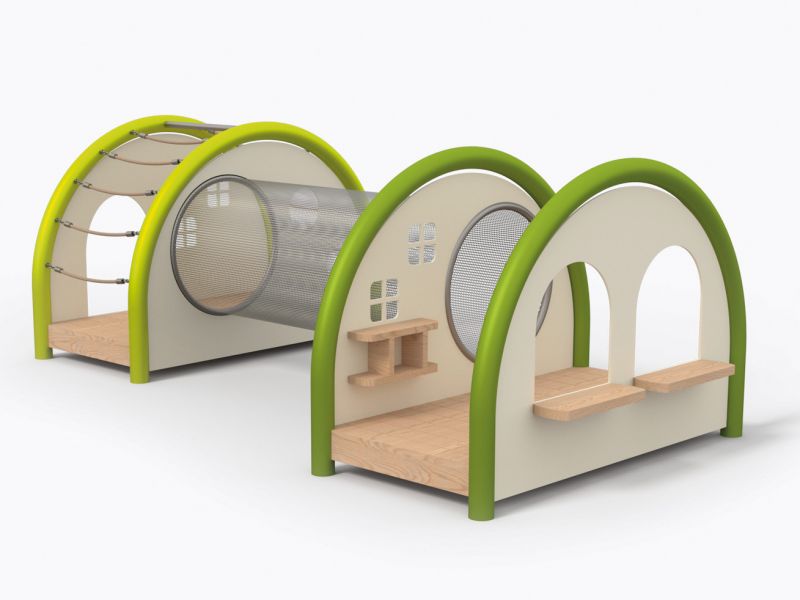

Kobito tunnel combination “Poco”

Kobito tunnel combination “Poco”

Kobito tunnel combination Poco includes arches made of stainless steel and wood made from robinia.

– 1 Kobito stage
– 1 square platform measuring 90x180cm with a height of 20cm
– Kobito wall I5
– 1 stainless steel arch with a width of approximately 180cm, height of approximately 135cm, and a bending radius of approximately 90cm
– 1 HPL wall with a laterally arched door, width of approximately 50cm, and 2 small squared windows with cross bars measuring approximately 18x18cm
– Kobito wall B5
– 1 stainless steel arch with a width of approximately 180cm, height of approximately 135cm, and a bending radius of approximately 90cm
– 1 HPL wall with a round hole measuring approximately 75cm in diameter and 2 small round holes measuring approximately 24cm in diameter
– 11 parallel climbing ropes made of Hercules rope placed between and along the arches
– 1 connecting tunnel made of perforated stainless steel, straight, with a diameter of approximately 75cm and a length of approximately 190cm
– 1 Kobito stage
– 1 square platform measuring 90x180cm with a height of 20cm
– Kobito wall E5
– 1 stainless steel arch with a width of approximately 180cm, height of approximately 135cm, and a bending radius of approximately 90cm
– 1 HPL wall with a round hole measuring approximately 75cm in diameter and 2 small squared windows with cross bars measuring approximately 18x18cm
– 1 Kobito wall L6
– 1 stainless steel arch with a width of approximately 180cm, height of approximately 135cm, and a bending radius of approximately 90cm
– 1 HPL wall with 2 arched windows, width of 50cm, and height of 55cm
– 2 counters made of robinia, placed outside and underneath the windows
– 1 play shelf made of robinia with 3 small compartments

This product is proudly made in Germany! All arches are made of stainless steel tube with a diameter of 101.6mm and a thickness of 3mm. The stainless steel surfaces are radiated with glass marbles to comply with environmental protection rules. The platform is connected to the support posts using stainless steel press-in threaded sleeves and fixed with concentrically incorporated stainless steel brackets. All wooden parts are made of planed and chamfered robinia and are untreated. The ropes are made of Hercules rope with 6 strands. The connection point between the net and rope and the support posts is achieved through specifically formed stainless steel forks and tensible stainless steel chains. All connecting parts are made of stainless steel or galvanized, and only self-locking nuts are used.

Please note that drying cracks are normal in all native hard woods, even after appropriate storage and professional treatment. Therefore, drying cracks do not warrant a warranty claim (refer to the supplementary sheet of the German Institute for Standardization EN 1176, Note on 4.2.7.6).
