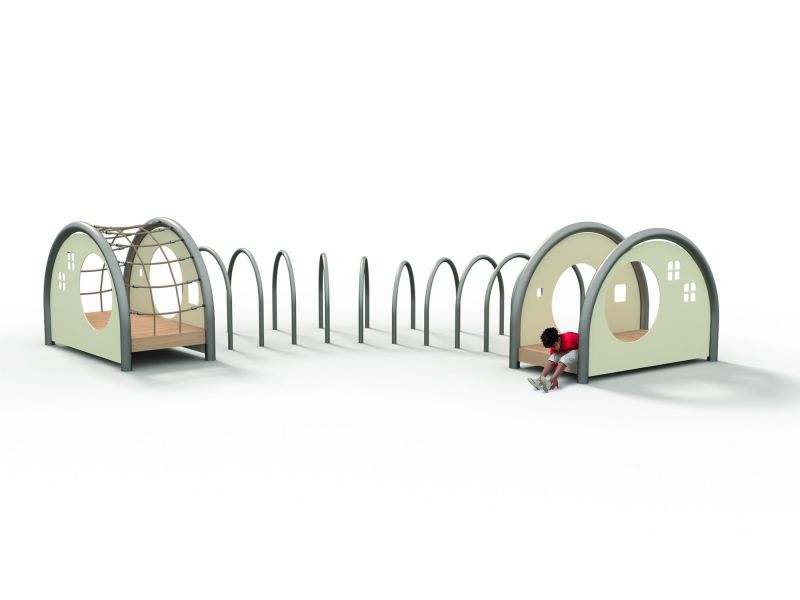

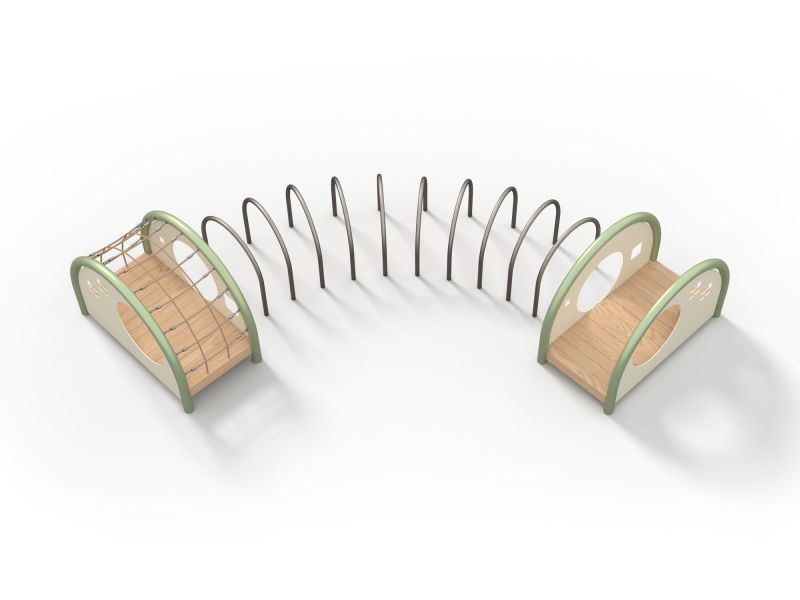

Kobito tunnel combination “Kune”
Kobito tunnel combination Kune consists of arches made of stainless steel and wood from the robinia tree.
– 1 Kobito stage
– 1 square platform measuring 90x180cm with a height of 30cm
– Kobito wall E5
– 1 stainless steel arch with a width of approximately 180cm, height of approximately 135cm, and a bending radius of approximately 90cm
– 1 HPL wall with a round hole measuring approximately 75cm in diameter and 2 small square windows with cross bars measuring approximately 18x18cm
– Kobito wall C5
– 1 stainless steel arch with a width of approximately 180cm, height of approximately 135cm, and a bending radius of approximately 90cm
– 1 HPL wall with a round hole measuring approximately 75cm in diameter and 2 small square windows with rounded corners measuring approximately 23x23cm and 8x8cm
– 1 climbing net made of Hercules rope placed between and along the arches
– Kobito linking tunnel
– 10 stainless steel arches with a width of approximately 100cm, height ranging from approximately 80cm to 100cm, and a bending radius of approximately 50cm, with a diameter of Ø48mm x 3mm
– The arches are arranged in a row, slightly rotated, with a distance of approximately 35cm between the narrowest points
– 1 Kobito stage
– 1 square platform measuring 90x180cm with a height of 20cm
– Kobito wall C5
– 1 stainless steel arch with a width of approximately 180cm, height of approximately 135cm, and a bending radius of approximately 90cm
– 1 HPL wall with a round hole measuring approximately 75cm in diameter and 2 small square windows with rounded corners measuring approximately 23x23cm and 8x8cm
– Kobito wall E5
– 1 stainless steel arch with a width of approximately 180cm, height of approximately 135cm, and a bending radius of approximately 90cm
– 1 HPL wall with a round hole measuring approximately 75cm in diameter and 2 small square windows with cross bars measuring approximately 18x18cm
– 1 play shelf made of robinia with 3 small compartments
This product is proudly made in Germany! The arches are made of stainless steel tubes with diameters of Ø101.6mm x 3mm and Ø48mm x 3mm. All stainless steel surfaces are treated with glass marbles in accordance with environmental protection regulations. The platform is connected to the support posts using stainless steel press-in threaded sleeves and fixed with concentrically incorporated stainless steel brackets. All wooden parts are made of planed and chamfered robinia wood and remain untreated. The ropes and nets are made of Hercules rope with 6 strands. The connection point between the net/rope and the support posts is made using specifically formed stainless steel forks and tensible stainless steel chains. All connecting parts are made of stainless steel or galvanized and only self-locking nuts are used.
Please note that drying cracks are normal in all native hard woods, even after appropriate storage and professional treatment. Therefore, drying cracks do not qualify for a warranty claim. (Refer to the supplementary sheet for the German Institute for Standardization EN 1176, Note on 4.2.7.6)
Technical Information
Area
800 x 800 cm
Fall Height Group
135 cm
Materials
Material
stainless steel, wood, HPL
