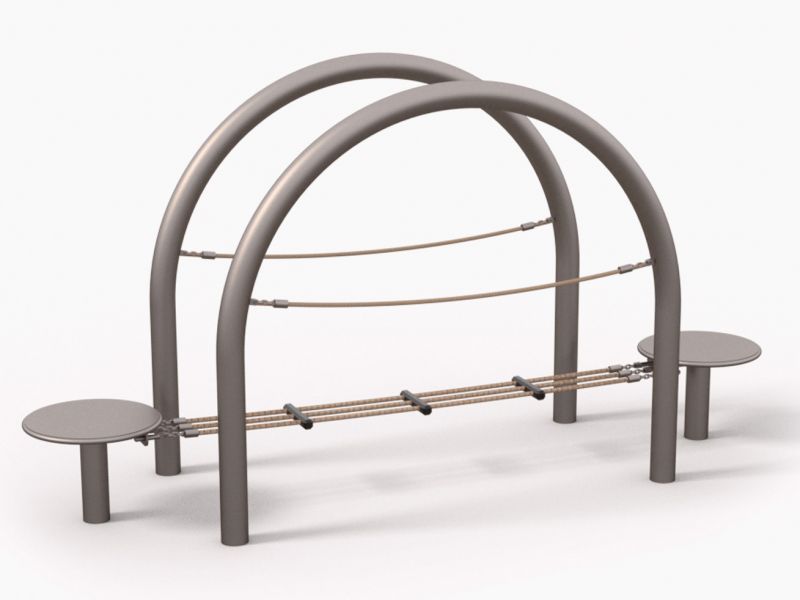

Kobito Slackline
The Kobito slackline includes two arches made of stainless steel. Each arch has a width of approximately 180cm, a height of approximately 165cm, and a bending radius of approximately 90cm.
The slackline itself consists of two round stainless steel plates with a diameter of approximately 50cm and a height of approximately 40cm. Each plate is equipped with a stainless steel post with a diameter of 101.6mm.
Additionally, the slackline includes three ropes made of Hercules rope with a diameter of 16mm and a length of approximately 210cm. These ropes are connected with separators made of Pevolon.
To ensure proper tension, two devices are provided.
For safety purposes, two safety ropes made of Hercules rope are included.
All components of the Kobito slackline are proudly made in Germany. The arches are constructed using stainless steel tubes with a diameter of 101.6mm and a thickness of 3mm. The support posts are made of stainless steel tubes with a diameter of 101.6mm and a thickness of 2mm.
To comply with environmental protection rules, all stainless steel surfaces are radiated with glass marbles.
The ropes are made of Hercules rope with 6 strands.
The connection point between the net/rope and the support posts is achieved through a specifically formed stainless steel fork and a tensible stainless steel chain.
All connecting parts are made of stainless steel or galvanized materials. Only self-locking nuts are used.
Technical Information
Area
375 x 620 cm
Fall Height Group
< 60 cm
Materials
Material
stainless steel, hercules rope
