10.4201

Kobito seating arrangement

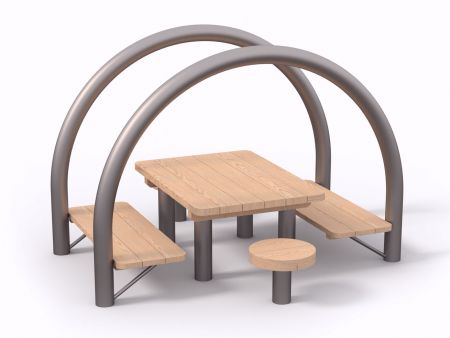

Kobito Seating Arrangement
The seating arrangement includes two arches made of stainless steel, with a width of approximately 180cm and a height of approximately 135cm. The bending radius of the arches is approximately 90cm.

Additionally, there are two benches made of robinia, with a height of approximately 25cm. There is also a table made of robinia, with a height of approximately 50cm, and it is supported by four posts made of stainless steel.

Furthermore, there are two round seats made of robinia, with a height of approximately 25cm. Each seat is accompanied by one post made of stainless steel.

All the arches are made of stainless steel tube, with a diameter of 101.6mm and a thickness of 3mm. The support posts are also made of stainless steel tube, with a diameter of 101.6mm and a thickness of 2mm.

To comply with environmental protection rules, all stainless steel surfaces are radiated with glass marbles. The connection between the seats and support posts is achieved through stainless steel press-in threaded sleeves.

All wooden parts are made of Robinia, planed and chamfered. They are left untreated.

All connecting parts are made of stainless steel or galvanized, and only self-locking nuts are used.

Please note that drying cracks are normal in all native hard woods, even after appropriate storage and professional treatment. Therefore, warranty claims cannot be made based on drying cracks (cf supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6).

This product is proudly made in Germany!

User Age0-5 years
Download Product Sheet

Materials

Material

stainless steel, wood
