10.2311

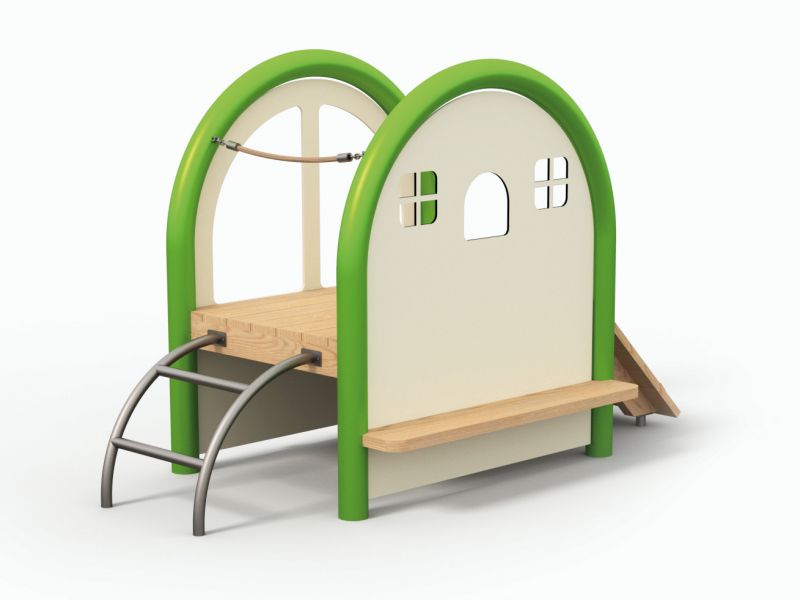

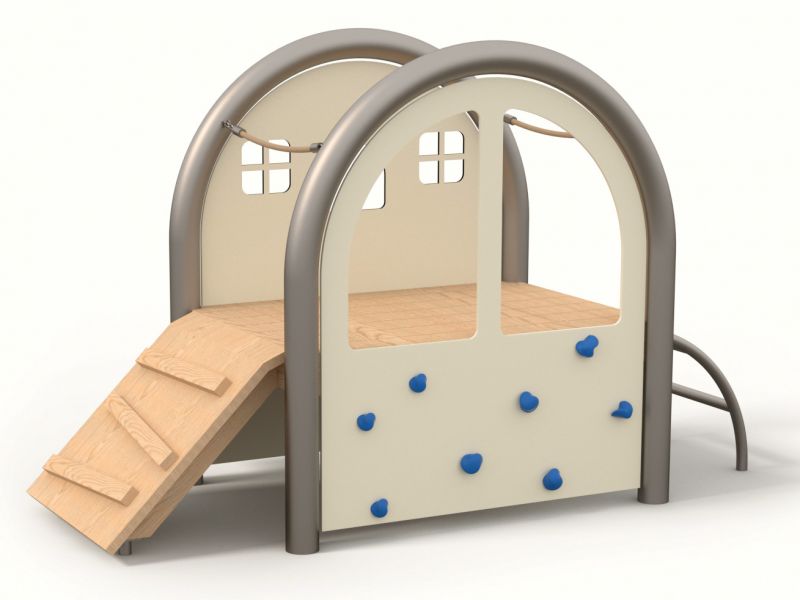

Kobito play combination “Tako”

Kobito Play Combination Tako includes arches made of stainless steel and wood made from robinia.

– 1 Kobito stage
– 1 square platform measuring 90x127cm with a height of 58cm
– Kobito wall K2.b
– 1 stainless steel arch with a width of approximately 127cm, height of approximately 155cm, and a bending radius of approximately 63.5cm
– 1 HPL wall with a centered, arched window measuring approximately 23cm in width and height, and 2 small, squared windows with cross bars measuring approximately 18x18cm
– 1 robinia bench located outside and underneath the window
– 1 Kobito wall N2
– 1 stainless steel arch with a width of approximately 127cm, height of approximately 155cm, and a bending radius of approximately 63.5cm
– 1 HPL wall with a vertically divided, arched window measuring approximately 95cm in width and 70cm in height
– climbing grips made of synthetic resin located underneath the window
– 1 stainless steel arch ladder
– 1 ramp with a 45° angle and climbing aids made of robinia
– 2 safety ropes made of Hercules rope

This product is proudly made in Germany! All arches are constructed using stainless steel tubes with a diameter of 101.6mm and a thickness of 3mm. The stainless steel surfaces are treated with glass marbles in accordance with environmental protection regulations. The platform is securely connected to the support posts using stainless steel press-in threaded sleeves. Additionally, the platform is fixed in place using concentrically incorporated stainless steel brackets. All wooden parts are made from planed and chamfered robinia wood, and remain untreated. The ropes are made from Hercules rope with 6 strands. The connection point between the net and rope and the support posts is achieved through specifically formed stainless steel forks and tensible stainless steel chains. All connecting parts are made of stainless steel or galvanized, and only self-locking nuts are used.

Please note that drying cracks are normal in all native hard woods, even after appropriate storage and professional treatment. Therefore, drying cracks do not warrant a claim. (Please refer to the supplementary sheet from the German Institute for Standardization EN 1176, Note on 4.2.7.6)

User Age0-3 years
Download Product Sheet

Technical Information

Area

420 x 540 cm

Fall Height Group

< 60 cm

Materials

Material

stainless steel, wood, HPL
