Kobito play combination “Mado”

Kobito play combination “Mado”

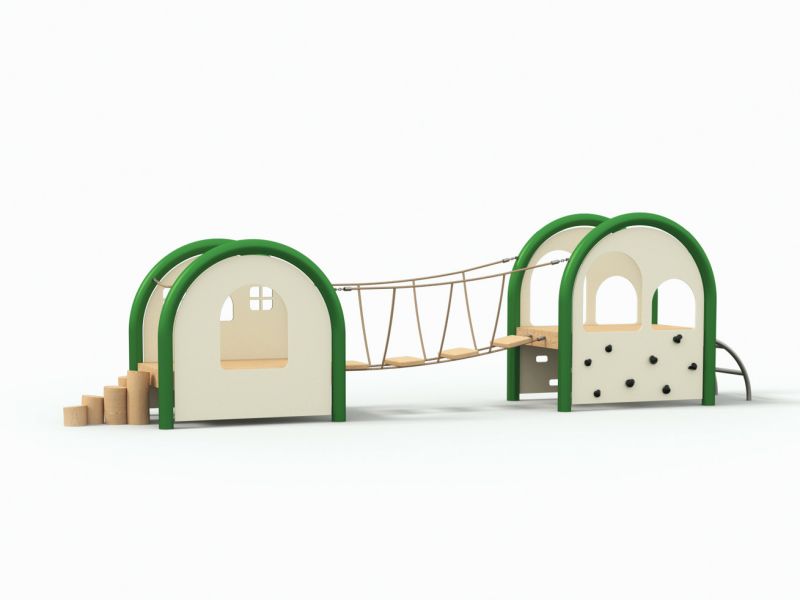

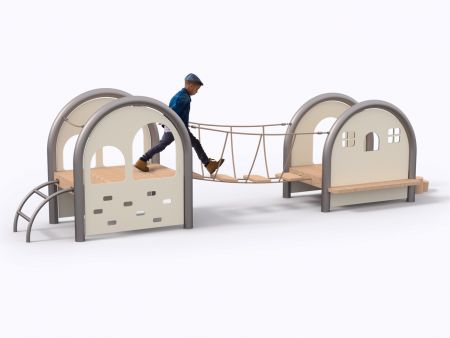

Kobito play combination Mado includes arches made of stainless steel and wood made from robinia.

1 Kobito stage is included in the set. It consists of a square platform measuring 90x127cm with a height of 58cm.

The Kobito wall M2 features an arch made of stainless steel, approximately 127cm wide and 155cm tall, with a bending radius of approximately 63.5cm. Additionally, it includes an HPL wall with two arched windows measuring approximately 40x40cm and 50x60cm. Climbing grips made of synthetic resin are also included.

The Kobito wall M3 includes an arch made of stainless steel, approximately 127cm wide and 155cm tall, with a bending radius of approximately 63.5cm. It also features an HPL wall with two arched windows measuring approximately 40x40cm and 50x60cm. Underneath the windows, there are several climbing holes.

An arch ladder made of stainless steel is included in the set.

A rope bridge with a wooden walkway, measuring approximately 180cm in length, is also part of the combination. It comes with two safety ropes made of Hercules rope.

Another Kobito stage is included, consisting of a square platform measuring 90x127cm with a height of 40cm.

The Kobito wall F1.a features an arch made of stainless steel, approximately 127cm wide and 135cm tall, with a bending radius of approximately 63.5cm. It also includes an HPL wall with a centered, arched window measuring approximately 50cm wide and 60cm tall.

The Kobito wall K2.a includes an arch made of stainless steel, approximately 127cm wide and 135cm tall, with a bending radius of approximately 63.5cm. It also features an HPL wall with a centered, arched window measuring approximately 23cm wide and 23cm tall. Additionally, there are two small squared windows with cross bars, measuring approximately 18x18cm. A bench made of robinia is placed outside and underneath the window.

The giraffe’s road Mado consists of five robinia palisades with different heights, measuring Ø 15cm. They are arranged facing each other and slightly shifted.

This play combination is proudly made in Germany. All arches are made of stainless steel tube with a diameter of Ø101.6mm and a thickness of 3mm. The stainless steel surfaces are radiated with glass marbles in accordance with environmental protection rules. The platform is connected to the support posts using stainless steel press-in threaded sleeves, and it is fixed in place with concentrically incorporated stainless steel brackets. All wooden parts are made of Robinia, planed and chamfered, and remain untreated. The ropes used are made of Hercules rope with 6 strands. The connection point between the net and rope and the support posts is made using specifically formed stainless steel forks and tensible stainless steel chains. All connecting parts are made of stainless steel or galvanized, and only self-locking nuts are used.

Please note that drying cracks are normal in all native hard woods, even after appropriate storage and professional treatment. Therefore, drying cracks do not warrant a warranty claim (cf supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6).
