Kobito material board

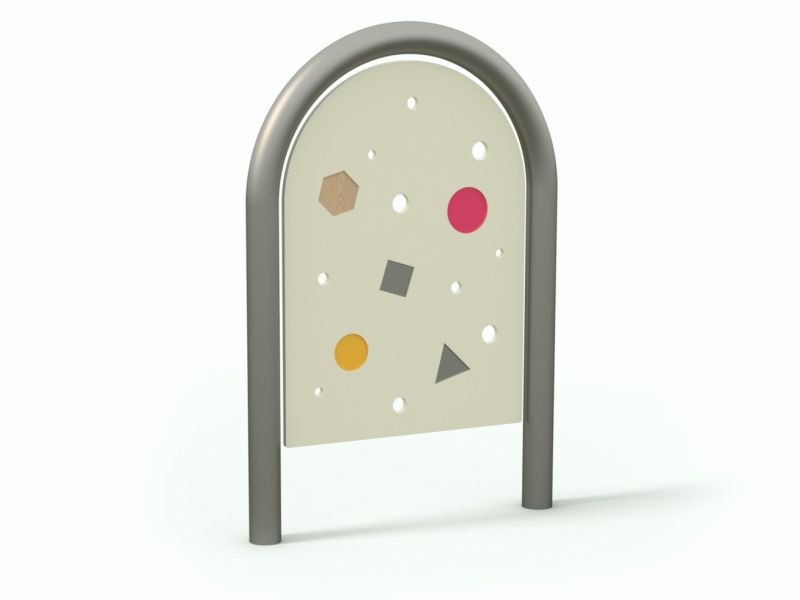

Kobito Material Board
Stainless Steel Arch
Wood: Robinia
– One stainless steel arch with a width of approximately 100cm and a height of approximately 155cm. The bending radius is approximately 50cm.
– One HPL plate with various geometric forms in different sizes, utilizing different materials such as acrylic glass, robinia, stainless steel, and perforated stainless steel.
Proudly made in Germany!
All arches are constructed using stainless steel tubes with a diameter of 101.6mm and a thickness of 3mm.
To adhere to environmental protection regulations, all stainless steel surfaces are treated with glass marbles.
All wooden components are made from Robinia, planed, and chamfered. They remain untreated.
All connecting parts are either made of stainless steel or galvanized. Only self-locking nuts are used.
It is normal for drying cracks to occur in all native hardwoods, even after proper storage and professional treatment. Therefore, drying cracks do not warrant a claim under the warranty. (Please refer to the supplementary sheet of the German Institute for Standardization EN 1176, Note on 4.2.7.6)
Technical Information
Area
310 x 410 cm
Fall Height Group
< 60 cm
Materials
Material
stainless steel, wood, HPL
