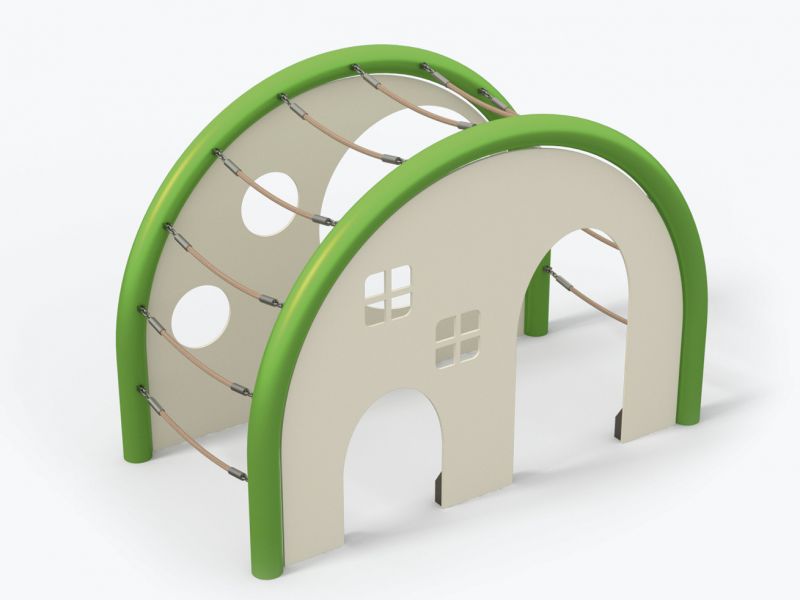

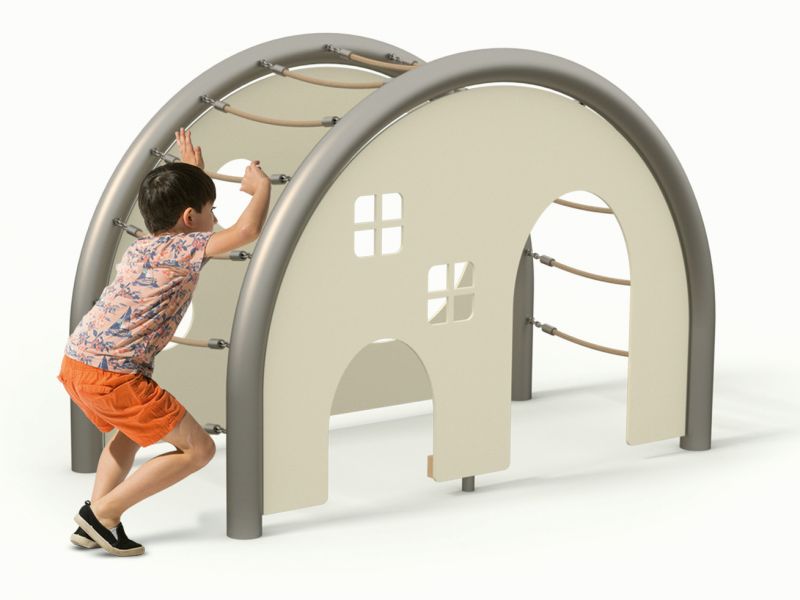

Kobito Climbing House Mino features arches constructed from stainless steel and wood made from robinia. The climbing house includes a Kobito stage, Kobito wall B5, and Kobito wall J5.

The Kobito stage is equipped with an arch made of stainless steel, measuring approximately 180cm in width, 135cm in height, and with a bending radius of around 90cm.

The Kobito wall B5 features an HPL wall with a round hole, approximately 75cm in diameter, as well as two small round holes measuring approximately 24cm in diameter.

The Kobito wall J5 includes an arch made of stainless steel, with similar dimensions to the previous arch. Additionally, it features an HPL wall with two arched doors, measuring approximately 40/50cm in width, and two small squared windows with cross bars, measuring approximately 18x18cm in size.

To enhance the climbing experience, there are 11 parallel climbing ropes made of Hercules rope, which are positioned between and along the arches.

All components of the Kobito Climbing House Mino are proudly made in Germany. The arches are constructed using stainless steel tubes with a diameter of 101.6mm and a thickness of 3mm. Furthermore, all stainless steel surfaces are treated with glass marbles in accordance with environmental protection regulations. The ropes are made of Hercules rope with 6 strands.

The connection point between the net and rope is reinforced with support posts, utilizing specially designed stainless steel forks and tensible stainless steel chains. All connecting parts are made of stainless steel or galvanized materials, and only self-locking nuts are used.
