Kobito climbing course “Mogu”

Kobito climbing course “Mogu”

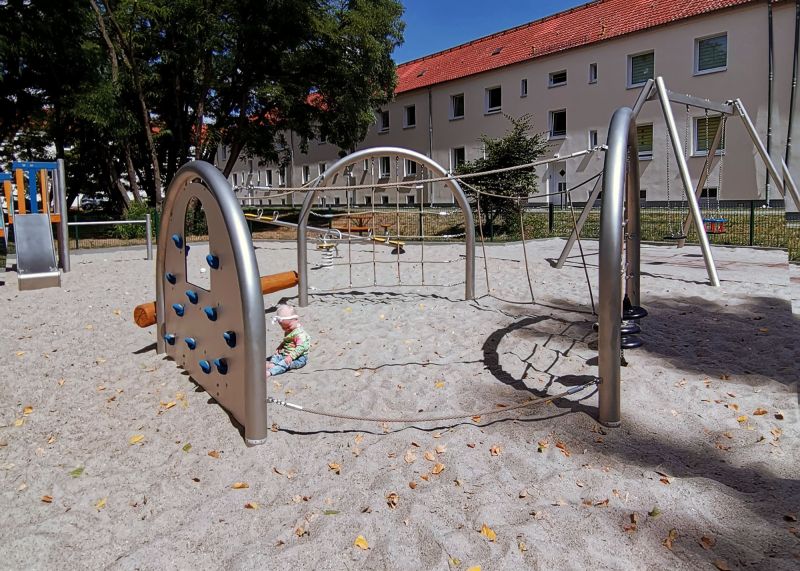

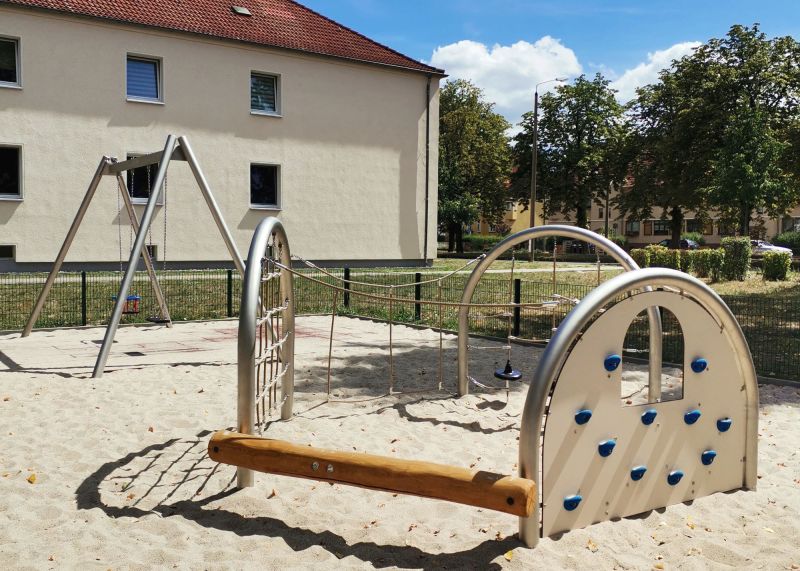

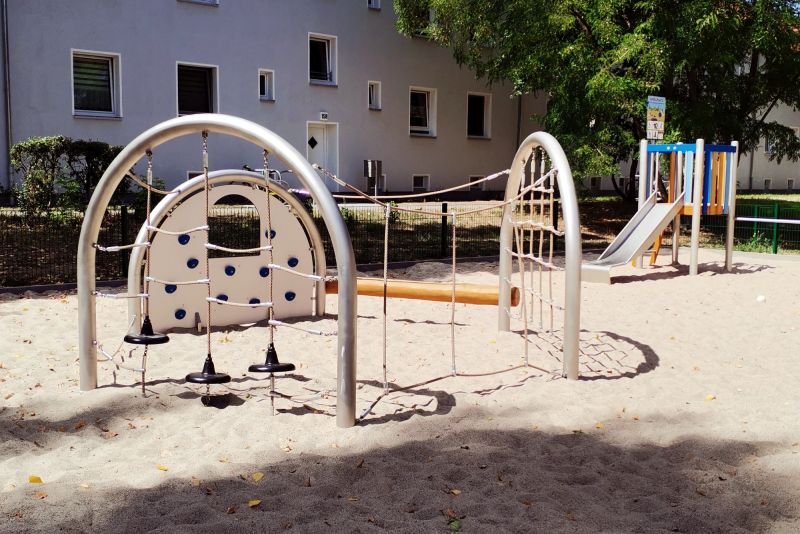

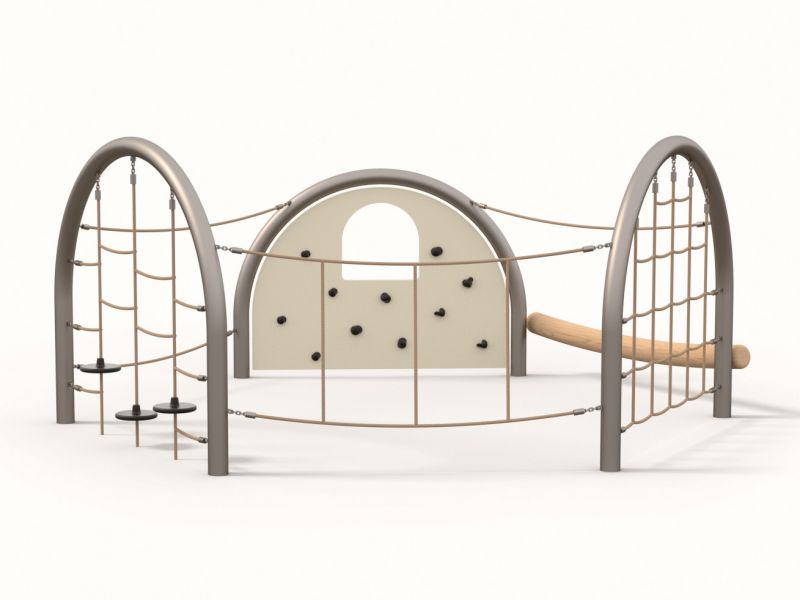

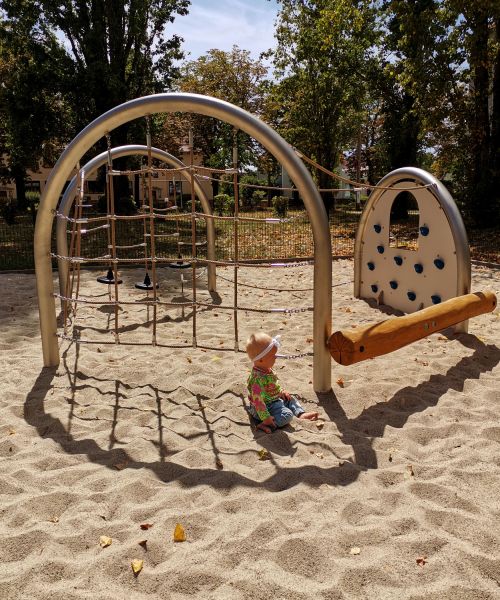

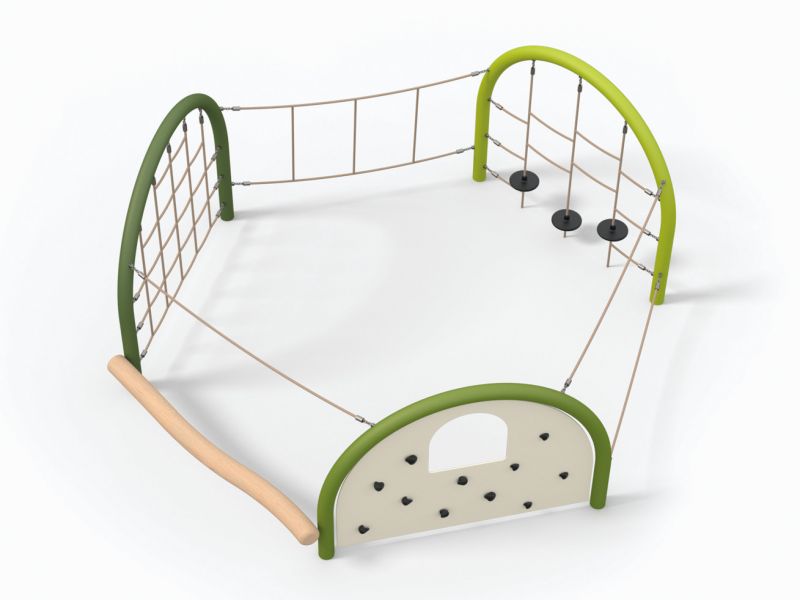

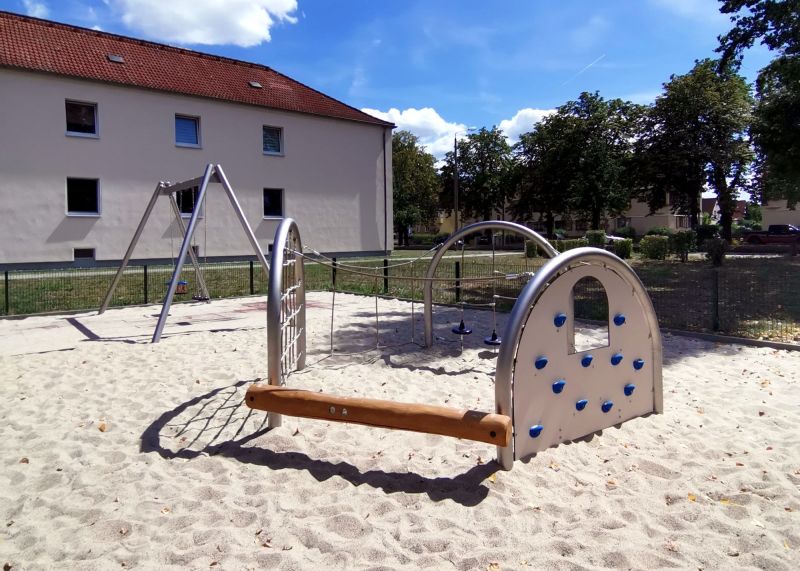

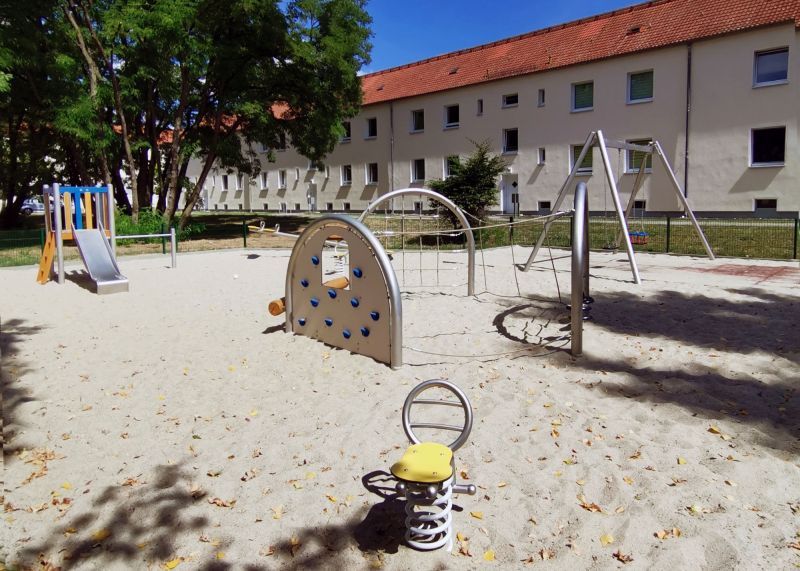

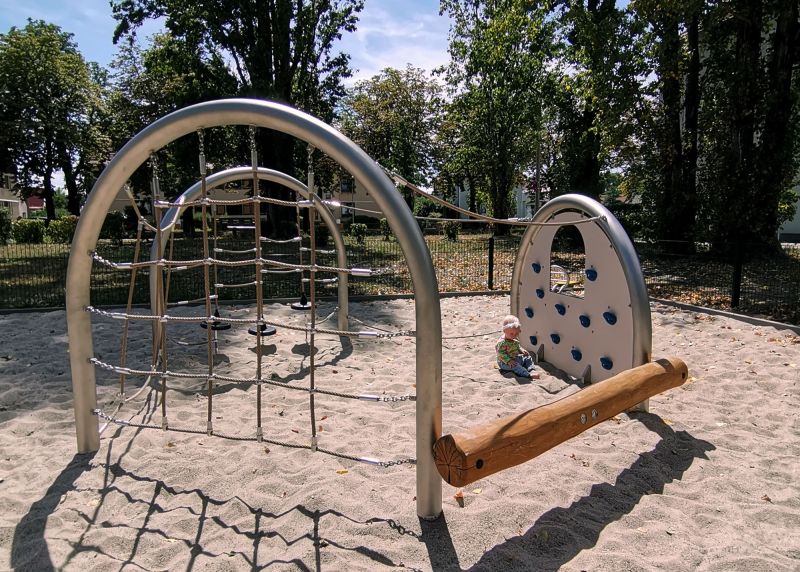

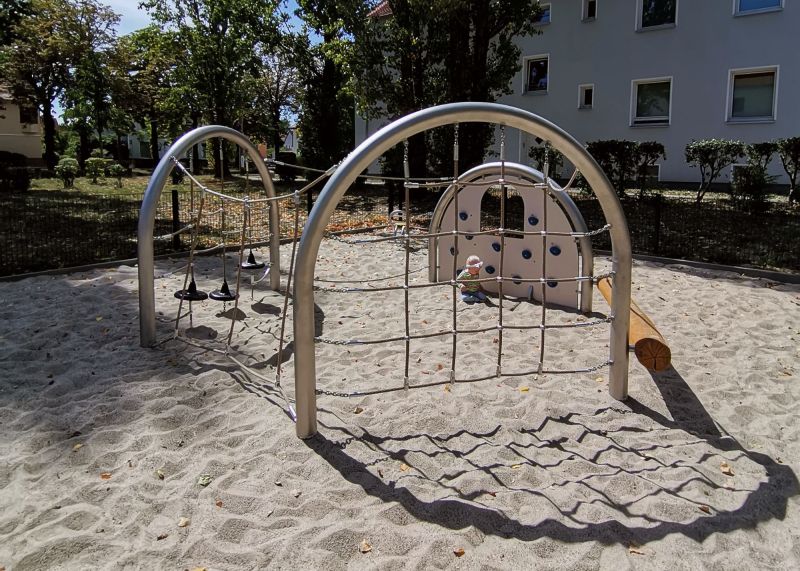

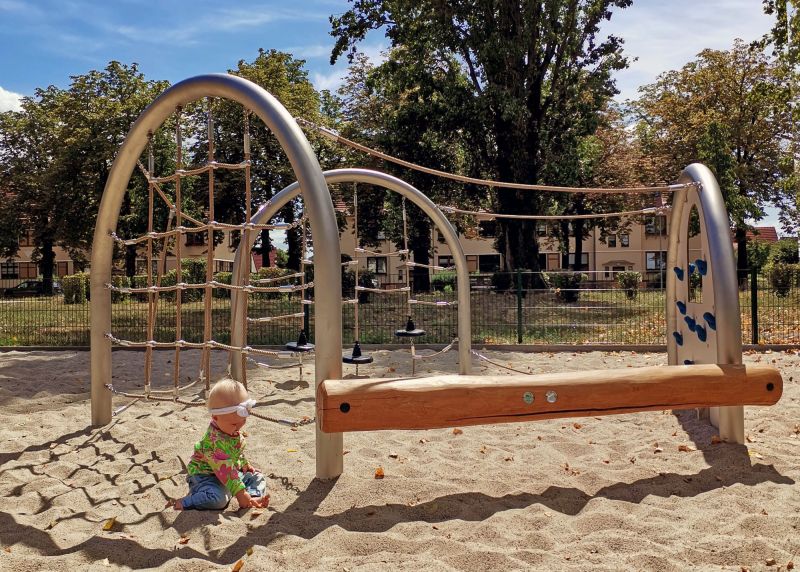

Kobito climbing course Mogu features arches made of stainless steel and wood made from robinia.

– There is one arch made of stainless steel with a width of approximately 180cm, a height of approximately 165cm, and a bending radius of approximately 90cm. It has an irregular, vertical climbing net made of Hercules rope with aluminium connectors and three rubber climbing plates.
– There is also a connecting balance and safety rope made of Hercules rope with a length of approximately 200cm.
– The Kobito wall F6 includes an arch made of stainless steel with a width of approximately 180cm, a height of approximately 135cm, and a bending radius of approximately 90cm. Additionally, there is an HPL climbing wall with a centered arched window. The window has a width of approximately 50cm and a height of approximately 50cm. Both sides underneath the window have climbing grips made of synthetic resin.
– Another connecting balance beam made of robinia and a safety rope made of Hercules rope with a length of approximately 200cm are included.
– There is another arch made of stainless steel with a width of approximately 180cm, a height of approximately 165cm, and a bending radius of approximately 90cm. This arch has a vertical climbing net made of Hercules rope with a larger mesh size of approximately 30x30cm. The connectors are made of aluminium.
– Lastly, there is a connecting rope harp made of Hercules rope with a length of approximately 200cm.

All the products are made in Germany. The arches are made of stainless steel tube with a diameter of 101.6mm and a thickness of 3mm. The stainless steel surfaces are radiated with glass marbles to comply with environmental protection rules. The wooden parts are made of planed and chamfered robinia and are untreated. The ropes and nets are made of Hercules rope with 6 strands. The connection point between the net and rope is supported by specifically formed stainless steel forks and tensible stainless steel chains. All connecting parts are made of stainless steel or galvanized, and only self-locking nuts are used.

Please note that drying cracks are normal in all native hard woods, even after appropriate storage and professional treatment. Therefore, drying cracks do not qualify for a warranty claim (refer to the supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6).
