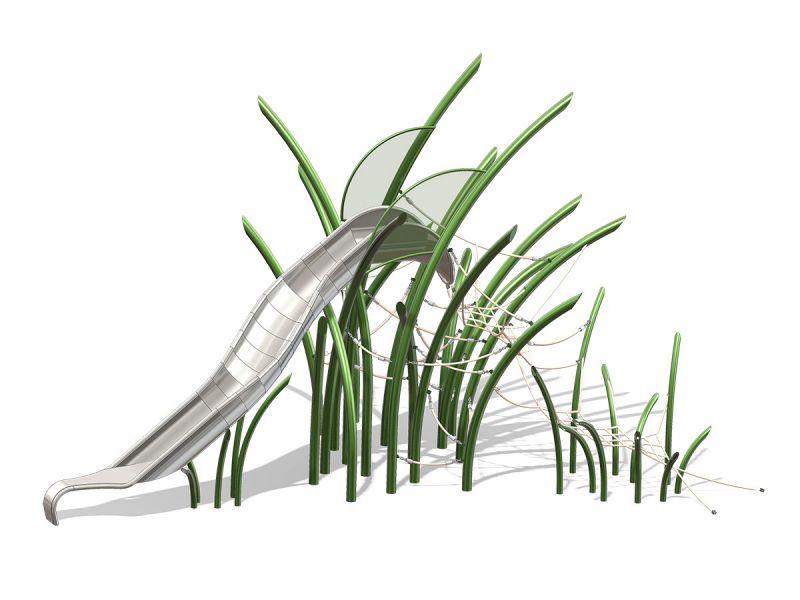

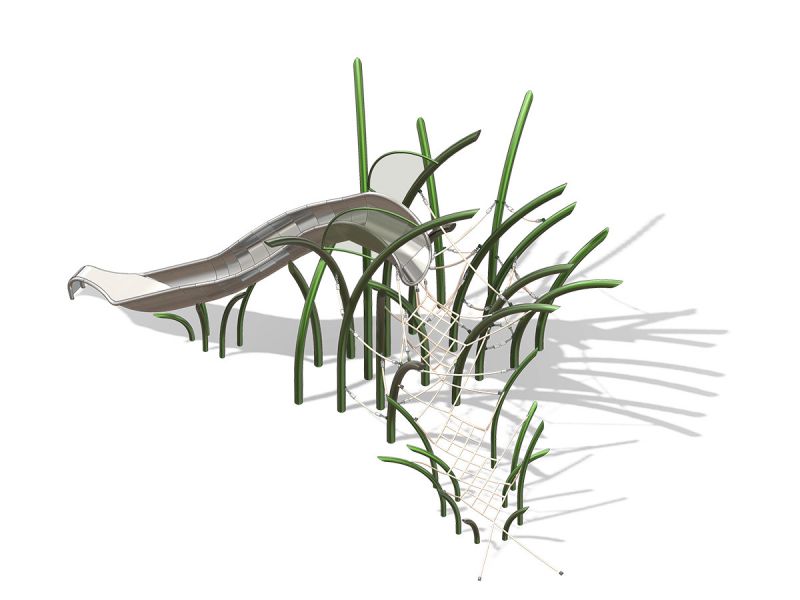

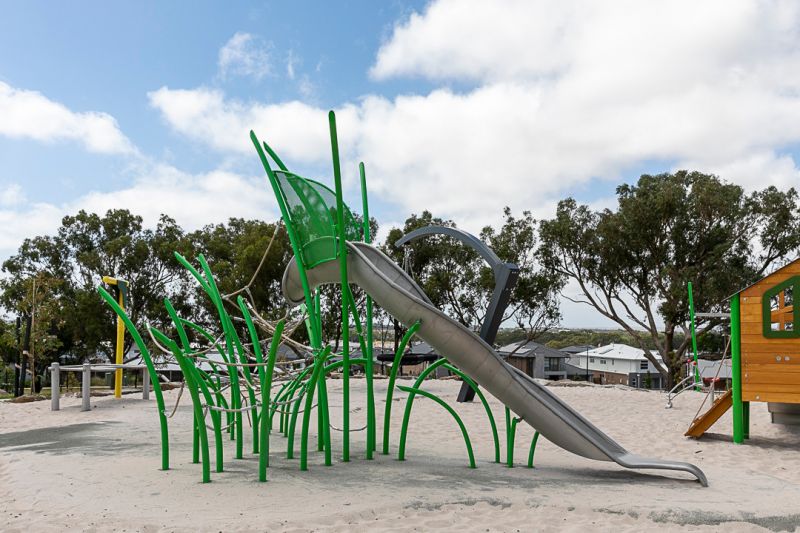

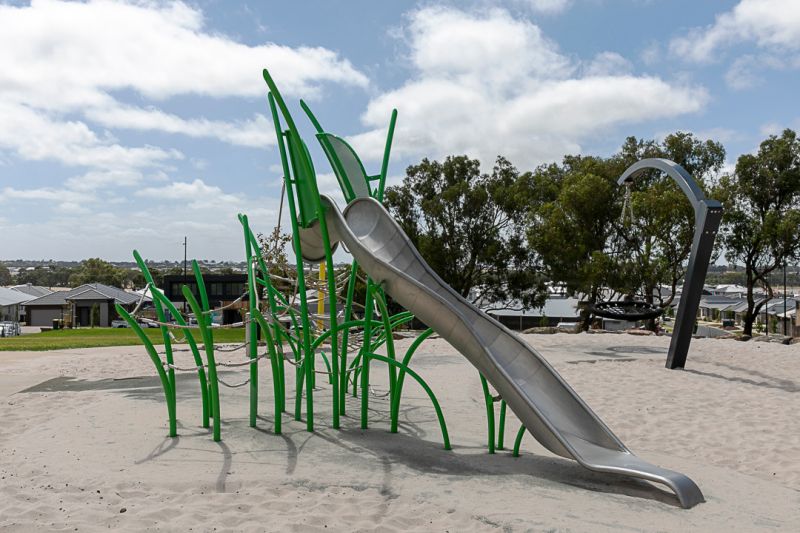

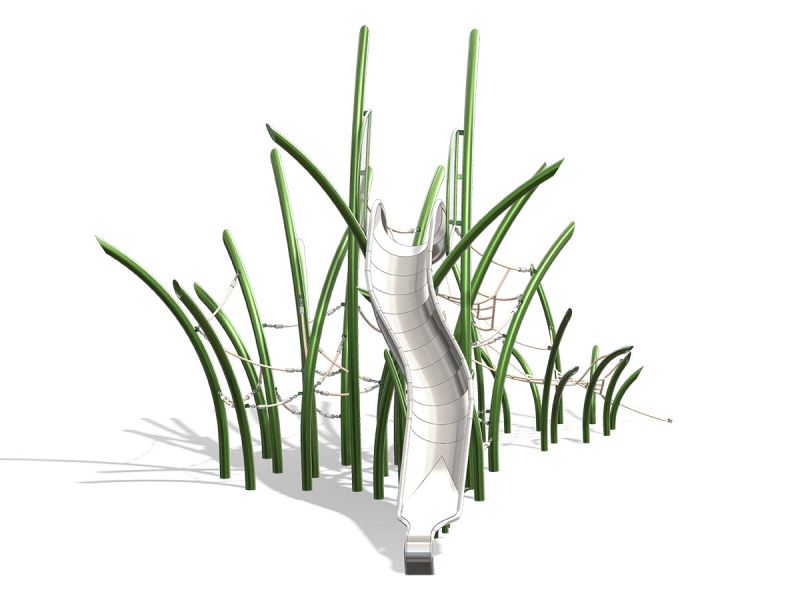

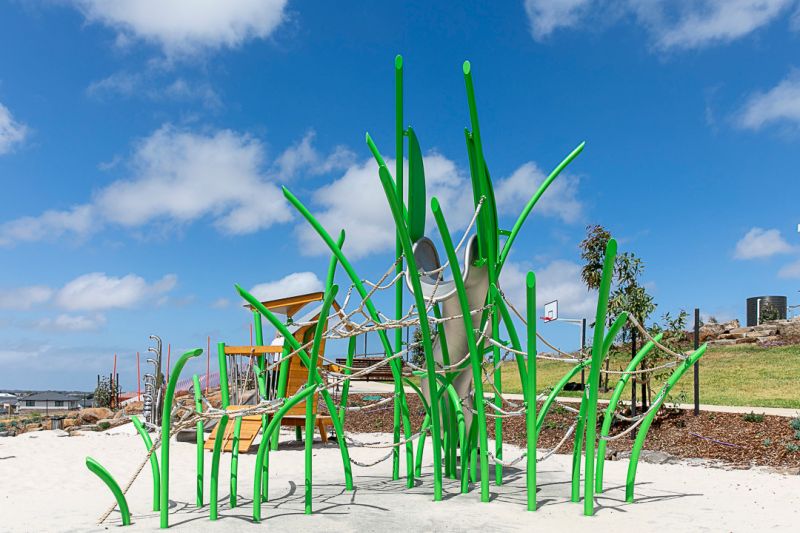

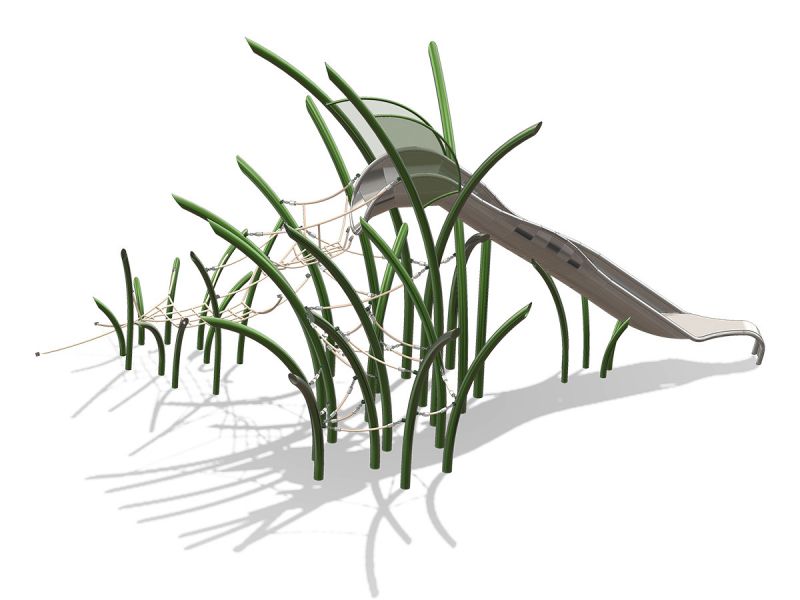

Josephsplatz 9b – Pod Shrub

Stainless steel posts:

1. Small tussock
– 10 stainless steel posts with a diameter of 38mm, designed in GrassArt style (curved with bevel cut), and a wall thickness of 5mm, as per statics.
– 1 rhombus-shaped climbing net with small mesh size of 10cm, in hemp color.

1. Medium tussock
– 9 stainless steel posts with a diameter of 50mm, designed in GrassArt style (curved with bevel cut), and a wall thickness of 6mm, as per statics.
– 14 ropes.

1. Large tussock
– 9 stainless steel posts with a diameter of 50mm, designed in GrassArt style (curved with bevel cut), and a wall thickness of 6mm, as per statics.
– 1 rhombus-shaped climbing net with small mesh size of 10cm, in hemp color.
– 8 ropes.

Slide designed as a pod plant:
– Mounting height of 175cm and width of 45cm.
– U-shaped design with 2 curves featuring raised curve-exterior and an extended and downwards pulled seat piece.
– 1 straight and U-shaped segment.
– Left-bended curve made of 4 segments, each with a 10° angle.
– Right-bended curve, each with a 10° angle.
– 1 straight and U-shaped segment as a transition towards the landing zone, with an organic tapered landing zone.
– Sheet thickness of 2.5mm, with edge protection made of stainless steel tube with a diameter of 26.9x2mm.
– Slide fall protection made of permeable-to-light stainless steel, 70cm high next to the seat piece, in beige color.

Support construction for the lower slide area:
– 5 stainless steel posts with a diameter of 38mm, designed in GrassArt style (curved with bevel cut), and a wall thickness of 6mm, as per statics.

Without color design.

Made in Germany!
All support posts are made of stainless steel with diameters of 38mm and 50mm. The visible ends of the posts are conclusively welded.
All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection rules.
The connection point between the net/rope and support posts is achieved through specifically formed stainless steel forks and tensible stainless steel chains.
All ropes/nets are made of Hercules rope, 4-strands, with a diameter of 16mm. (Different color nuances may occur when using hemp-colored ropes)
All connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.
