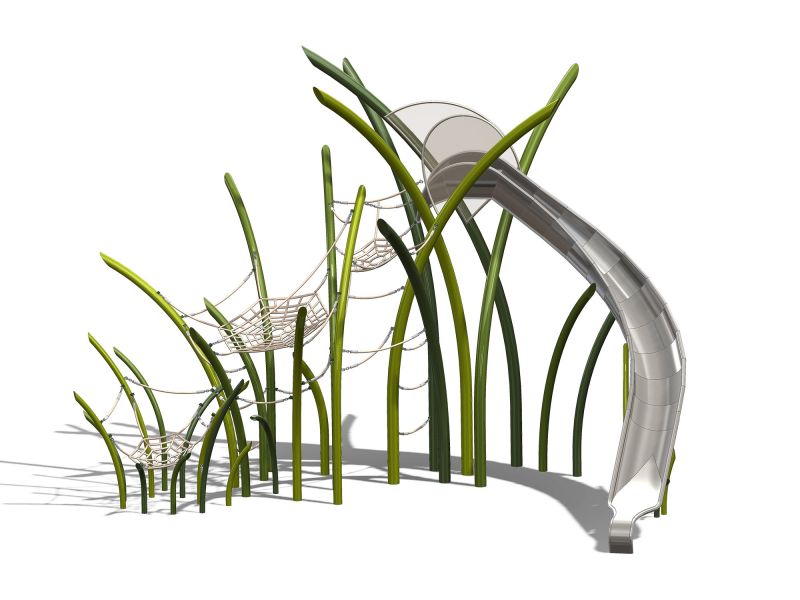

Josephsplatz 3 – Pod Plant

The posts are made of curved stainless steel with surfaces radiated with glass marbles. The ropes/nets used are Hercules ropes, 4-strands, with a diameter of 16mm.

– 1 small tussock
– 10 support posts made of stainless steel with a diameter of 38mm and a wall thickness of 5mm, according to statics
– 1 inclined spider net with a diameter of 55cm, serving as a reclining net with a height of 45cm. It is hung by ropes and chains on the support post.
– 3 safety ropes
– 1 medium tussock
– 9 support posts made of stainless steel with a diameter of 50mm, wall thickness according to statics
– 1 inclined spider net with a diameter of 100cm, serving as a reclining net with a height of 135cm. It is hung by ropes and chains on the support post.
– 13 safety ropes
– 1 large tussock
– 6 support posts made of stainless steel with a diameter of 76.1mm, wall thickness according to statics
– 2 support posts made of stainless steel with a diameter of 50mm, wall thickness according to statics
– 1 slide designed as a pod plant, U-shaped, made of stainless steel. It is attached at a height of 250cm and has a width of 45cm. The slide has a curved exterior with a raised curve, an extended and downwards pulled seat piece, 1 straight segment, and 10 segments each with a 10-degree angle. It also has 1 straight segment and U-shaped transition towards the landing zone, which is organically tapered.
– The construction is completely made of stainless steel with a sheet thickness of 2.5mm. The edge protection is made of stainless steel tube with a diameter of 26.9x2mm.
– The slide fall protection is permeable to light and made of stainless steel. It is 70cm high next to the seat piece and is colored beige.
– 7 climbing/safety ropes
– One tussock serves as a support construction for the lower slide area.
– 5 support posts made of stainless steel with a diameter of 38mm and a wall thickness of 2mm, according to statics.

Without color design.

Made in Germany!
All support posts are made of stainless steel tube.
All stainless steel surfaces are radiated with glass marbles according to environmental protection rules.
All connecting parts are made of stainless steel or galvanized.
Ropes/nets are made of Hercules rope. (Different color nuances may occur when using hemp-colored ropes)
All connecting parts are made of stainless steel or galvanized. Only use self-locking nuts.

Technical Information:
The net and rope linkage is achieved by using support posts with specifically formed stainless steel forks welded conclusively to the post. The tension is ensured by a tensible stainless steel chain as a connection element between the stainless steel fork and the aluminum pressed hull at the rope end.
