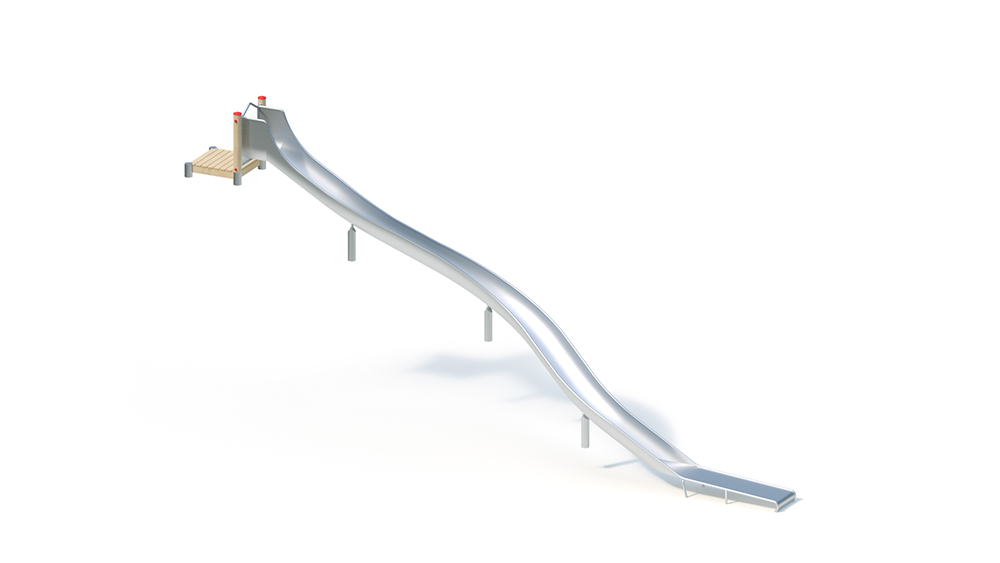

Hill slide (4.00)

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities.

Techincal Specifications

Lifting Device


Total Length

9.70 m

Total Width

1.50 m

Total Height

4.95 m

Minimum Space Length

13.20 m

Minimum Space Width

4.50 m

Minimum Space Height

4.95 m

Heaviest Single Piece

225.00 kg

(Total) Weight

360.00 kg

Free Height of Fall

1.50 m

Platform Heights

0.20 m


Foundation 1

4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

3 pieces - 0.40 x 0.40 x 0.60 m volume: 0.10 m3

Foundation 3

1 piece - 1.40 x 0.75 x 0.40 m volume: 0.42 m3

Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters, 2 hours each, plus lifting gear (without creating the foundation)

Technical Data

Technical data
Base area: approx. 1.50 x 9.70 m
Minimum space: approx . 4.50 x 13.20 m
(with free fall height max. 1.50 m)
Platform height
: 0.20 m
Slide installation height : 0.20 m seat height : 0.30 m Slide installation height
slide outlet zero: 4.00 m
(for hill height 3.80 m) Slide inclination:
30 ° Slide width:
0.60 m
Slide plate thickness: 2.5 mm

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
Support posts that are flush with the platform are covered with welded circular blanks made of stainless steel.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

K&K landslide
Slide segments made of stainless steel, particularly low-noise due to the trough shape, welded to a one-piece slide.
Support posts for the curve area made of stainless steel.
Course of the slide: curves 27 ° left, 54 ° right, 27 ° left

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
3 pcs. 0.40 x 0.40 x 0.60 m
1 pc. 1.40 x 0.75 x 0.40 m
amount of concrete: 0.81 m³
