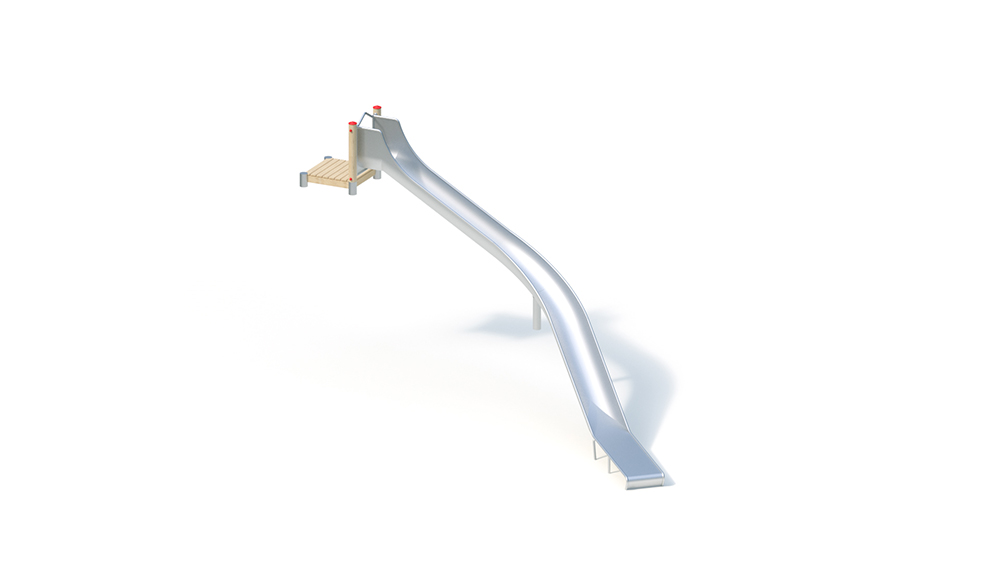

Hill slide (3.00)

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years,
public playgrounds, etc.
physical activity

Techincal Specifications

Lifting Device


Total Length

7.20 m

Total Width

3.75 m

Total Height

3.95 m

Minimum Space Length

10.45 m

Minimum Space Width

7.00 m

Minimum Space Height

3.95 m

Heaviest Single Piece

195.00 kg

(Total) Weight

295.00 kg

Free Height of Fall

3.95 m

Platform Heights

0.20 m


Foundation 1

4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

1 piece - 1.40 x 0.75 x 0.40 m volume: 0.42 m3

Foundation 3

1 piece - 0.40 x 0.40 x 0.60 m volume: 0.10 m3

Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters, 2 hours each, plus lifting gear (without creating the foundation)

Technical Data

Technical data
Floor area: 3.75 x 7.20 m
Minimum space: 7.00 x 10.45 m
Platform height
: 0.20 m
Slide installation height: 0.20 m Sitting height: 0.30 m Slide installation height
slide outlet zero: 3.00 m
( for hill height 2.80 m) Slide inclination:
30 ° Slide width:
0.60 m
Slide plate thickness: 2.5 mm

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Support posts that are flush with the platform are sealed with welded-on circular blanks made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets and a continuous bolt connection.

K&K landslide
Slide segments made of stainless steel, particularly low-noise due to the trough shape, welded to a one-piece slide.
Support posts for the curve area made of stainless steel.
Course of the slide: curve 45 ° to the right

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.40 x 0.60 m
1 pc. 1.40 x 0.75 x 0.40 m
amount of concrete: 0.62 m³
