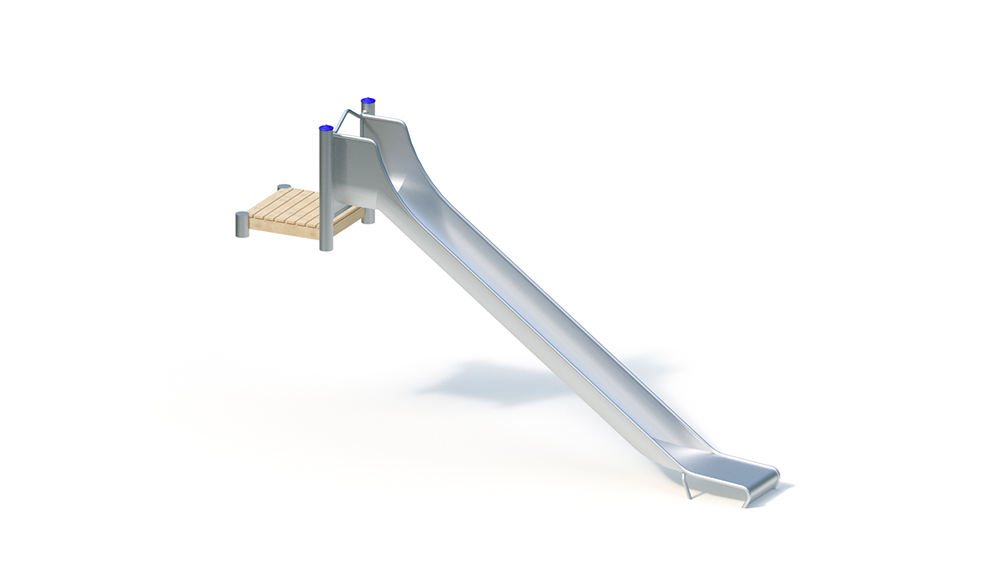

Hill slide (2.00)

Key Attributes

Age Group

4+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Suitable for
children from 4 years,
public playgrounds, etc.,
exercise activities

Techincal Specifications

Lifting Device

-

Total Length

4.85 m

Total Width

0.95 m

Total Height

3.00 m

Minimum Space Length

8.40 m

Minimum Space Width

3.95 m

Minimum Space Height

3.60 m

Heaviest Single Piece

115.00 kg

(Total) Weight

185.00 kg

Free Height of Fall

2.10 m

Platform Heights

0.20 m

Foundations

Foundation 1

4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters 2 hours each (without foundation creation)

Technical Data

Technical data
Floor area: 0.95 x 4.85 m
Minimum space: 3.95 x 8.35 m (with free fall height max. 1.50 m)
Platform height
: 0.20 m
Slide extension height: 0.20 m Sitting height: 0.30 m Slide installation height
above
slide outlet zero: 2.00 m
(for hill height 1.80 m) Slide inclination:
36 ° Slide width:
0.60 m
Slide plate thickness: 2.5 mm

Support
posts Support posts made of stainless steel tube Ø 120 mm, covered with non-detachable post caps made of stainless steel.
Support posts that are flush with the platform are covered with welded circular blanks made of stainless steel.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Add-on parts – Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.38 m³

Free fall height
platform: 0.20 m
slide: Depending on the course of the terrain, the free fall height and the extent of the impact surface result from the vertical distance between the lower edge of the slide and the upper edge of the terrain.
The impact surface in the slide area must be equipped with a floor material that meets the requirements of Table 4 (see EN 1176-1). If another material is to be used, its shock-absorbing properties must be proven by testing according to EN 1177: 2008. The floor area surrounding the outlet part of the slide must meet the requirements for a critical fall height of at least 1000 mm (see EN 1176-3).
