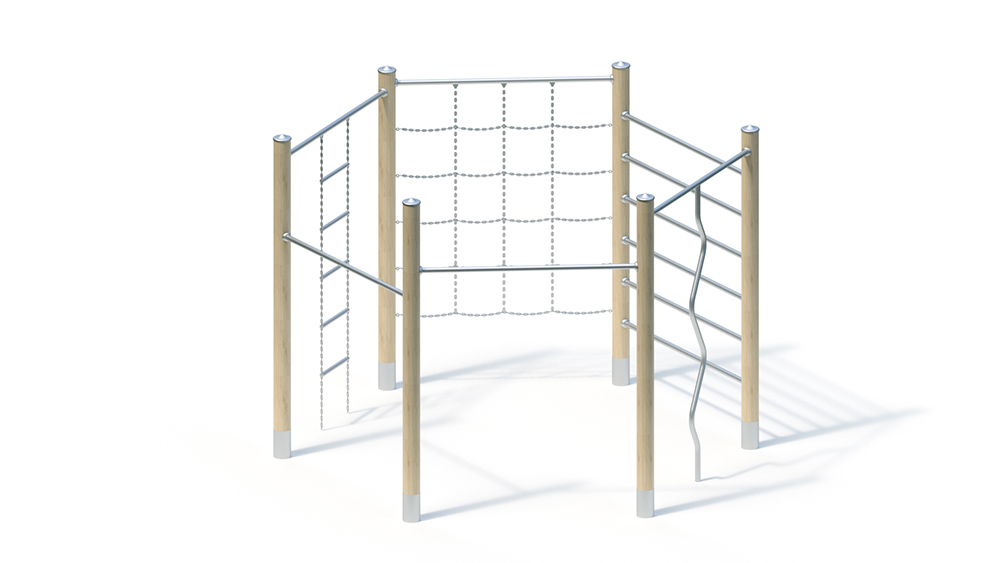

Hexagonal system

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years,
public playgrounds etc.,
sporting activities

Techincal Specifications

Lifting Device


Total Length

3.32 m

Total Width

2.89 m

Total Height

2.33 m

Minimum Space Length

7.04 m

Minimum Space Width

6.71 m

Minimum Space Height

2.33 m

Heaviest Single Piece

30.00 kg

(Total) Weight

235.00 kg

Free Height of Fall

2.22 m

Platform Heights



Foundation 1

6 piece - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

1 piece - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

4 h

Assembly Details

Assembly time 2 fitters each 4 hours (without foundation creation)

Technical Data

Technical data
Floor area: 2.90 x 3.35 m
Minimum space: Ø 7.35 m (38 m²)

Total height: 2.35 m
Bar height: 1.60 / 1.80 m Wall bars height
: 1.95 m
Weight: 30
kg Heaviest individual part 235 kg in total

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Attachment parts
– Horizontal bar made of stainless steel tube, Ø 38 x 2.5 mm, twist-proof
– Climbing bar and climbing rungs made of stainless steel tube, Ø 38 mm
– Chain ladder with stainless steel rungs.
– Chain net made of stainless steel chains on stainless steel crossbar

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
1 pc. 0.30 x 0.30 x 0.40 m
6 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.42 m³

Free fall height
2.25 m
