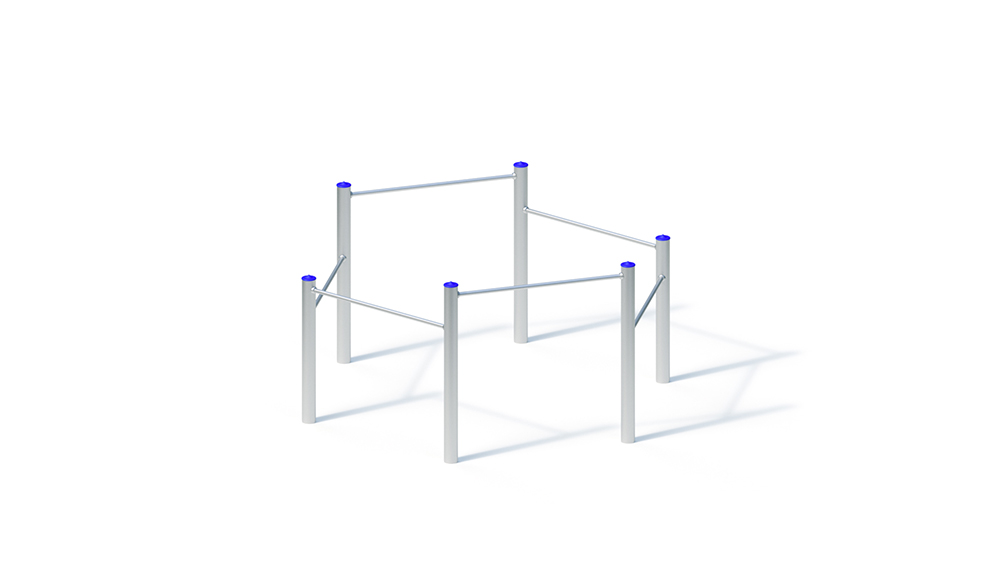

Hexagon (0.95 / 1.20 / 1.50 m)
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
Climb
Suitable for
Suitable for
children from 3 years,
public playgrounds, etc.
sports activities.
Techincal Specifications
Lifting Device
-
Total Length
3.35 m
Total Width
2.90 m
Total Height
1.65 m
Minimum Space Length
6.35 m
Minimum Space Width
6.35 m
Minimum Space Height
1.65 m
Heaviest Single Piece
20.00 kg
(Total) Weight
135.00 kg
Free Height of Fall
1.52 m
Platform Heights
-
Foundations
Foundation 1
6 pieces - 0.50 x 0.50 x 0.50 m volume: 0.13 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters each 1.5 hours (without foundation creation)
Technical Data
Technical data
Base area: 2.90 x 3.35 m
Minimum space: Ø 6.35 m (32 m²)
Total height: 1.65 m
Bar height : 0.95 / 1.20 / 1.50 m
Weight: 20 kg heaviest individual part
135 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 mm, wall thickness 3 mm, covered with non-detachable post caps made of stainless steel.
Horizontal
bars Horizontal bars made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, twist-proof.
Metal
components : stainless steel 1.4301 The modular add-on parts transfer their forces directly into the support posts via a special adapter attachment.
The screw connections are secured against unauthorized loosening.
Foundations (on site)
6 pcs. 0.50 x 0.50 x 0.50 m
amount of concrete: 0.75 m³
Free fall height
1.52 m
